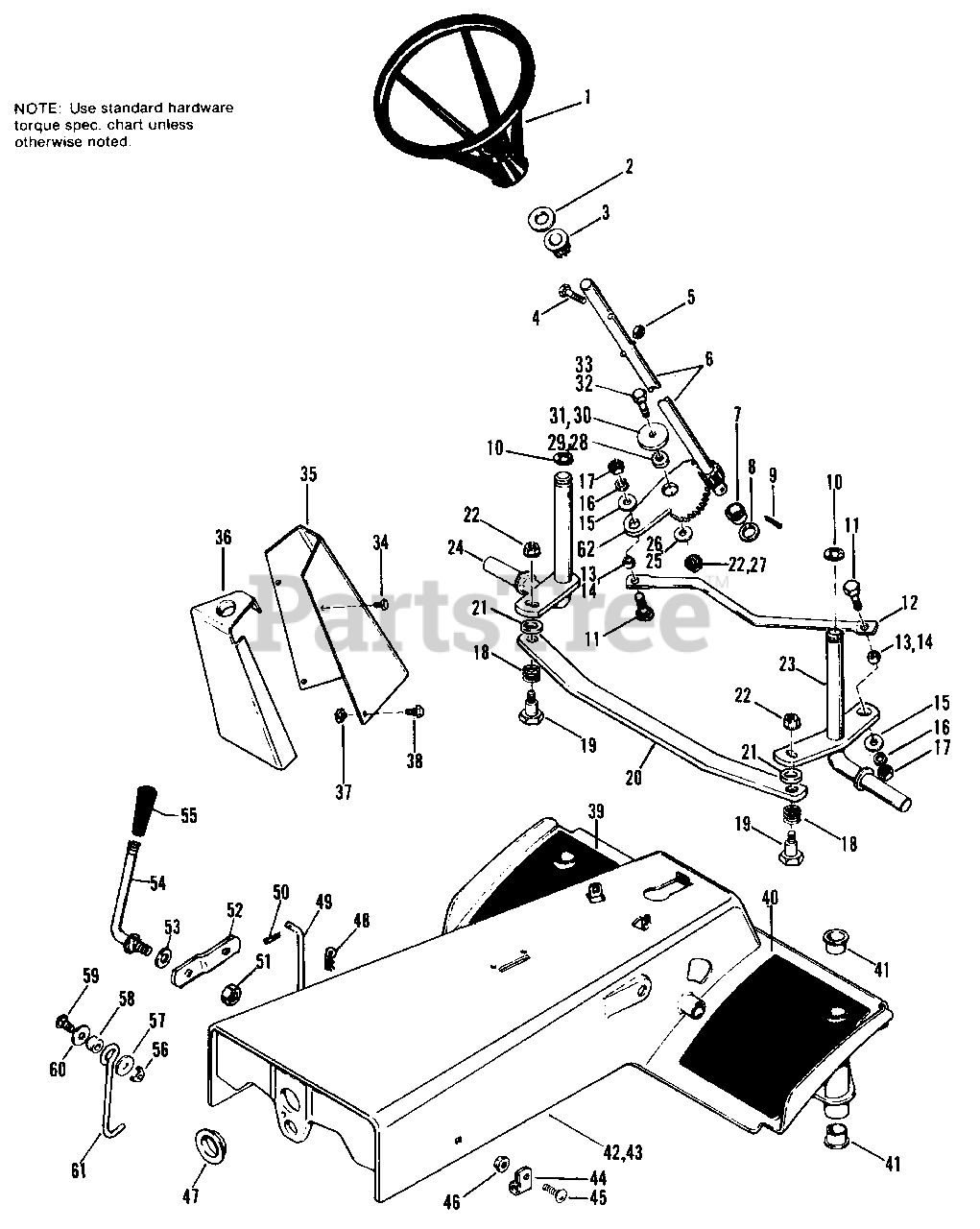

808 (991000) - Simplicity Wonderboy 30" Rear-Engine Riding Mower, 8hp Front Frame & Steering Group Parts Diagram

Wonderboy 30" Rear-Engine Riding Mower, 8hp

Front Frame & Steering Group Parts Diagram

  • Title

1

Simplicity 176501

WHEEL, Steering

$

$

Not available

2

Simplicity 158223

WASHER

$

$

Not available

3

Simplicity 2157077SM

BUSHING

$143.99

$

Usually ships in 2-12 days

0

4

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

5

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

6

Simplicity 175613

SHAFT ASSY., Steering

$

$

Not available

7

Simplicity 2176444SM

BUSHING

$5.49

$

In Stock, Qty 20+

0

8

Simplicity 2121210SM

WASHER

$

$

Not available

9

Simplicity 2818453

PIN, Cotter, 1/8 x 1-1/4

$

$

Not available

10

Simplicity 2827794SM

RlNG, Retaining

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 175676

LINK, Drag

$

$

Not available

13

Simplicity 2175648

BUSHING (Used on 990963)

$

$

Not available

14

Simplicity 2154177SM

BUSHING

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$41.99

$

In Stock, only 3 left!

0

15

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 12

0

18

Simplicity 158578

SPRING

$

$

Not available

19

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

20

Simplicity 176711

ROD, Tie

$

$

Not available

21

Simplicity 2817642

WASHER, Plain, 5/16

Note: Used on Mfg. No. 990998 & 991000.

$

$

Not available

22

Simplicity 2830645

NUT, Flange, 3/8-16 (Qty. 2 used on 1690012)

$

$

Not available

23

Simplicity 175654

SPINDLE, R.H.

$

$

Not available

24

Simplicity 175651

SPINDLE, L.H.

$

$

Not available

25

Simplicity 1924356SM

WASHER (Used on 990963)
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

26

Simplicity 178490

WASHER

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$

$

Not available

27

Simplicity 2830650

NUT, Flange, 7/16-14

Note: Used on Mfg. No. 1690012.

$

$

Not available

28

Simplicity 176500

BUSHING

Note: Used on Mfg. No. 990963 & 1690012.

$

$

Not available

29

Simplicity 2154177SM

BUSHING

Note: Used on Mfg. No. 990998 & 991000.

$41.99

$

In Stock, only 3 left!

0

30

Simplicity 2172908

WASHER (Used on 990963)

$

$

Not available

31

Simplicity 2178489

WASHER

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$

$

Not available

32

Simplicity 2828726

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4 (Used on 990963)

$

$

Not available

33

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4
(Superseded to 703579)

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$4.99

$

In Stock, Qty 20+

0

34

Simplicity 2822122

SCREW, Self Tapping, #10 x 1/2

$

$

Not available

35

Simplicity 176389

SUPPORT, Steering

$

$

Not available

36

Simplicity 176391

PANEL, Rear

$

$

Not available

37

Simplicity 2826022

NUT, Retainer

$

$

Not available

38

Simplicity 2830594

SCREW, Hex, Whizlock, Flange, 1/4-20 x 3/4

$

$

Not available

39

Simplicity 176809

PAD, Foot, L.H.

$

$

Not available

40

Simplicity 176810

PAD, Foot, R.H.

$

$

Not available

41

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

42

Simplicity 175452

FRAME ASSY., Front

Note: Used on Mfg. No. 990963, 990998 & 991000.

$

$

Not available

43

Simplicity 1650421

FRAME ASSY., Front

Note: Used on Mfg. No. 1690012.

$

$

Not available

44

Simplicity 122186

CLAMP

Note: Used on Mfg. No. 990963, 990998 & 991000.

$

$

Not available

45

Simplicity 923700

BOLT, Carriage, 5/16-18 x 1/2

Note: Used on Mfg. No. 990963, 990998 & 991000.

$

$

Not available

46

Simplicity 2829001

NUT, Flange, 5/16-18

Note: Used on Mfg. No. 990963, 990998 & 991000.

$

$

Not available

47

Simplicity 176441

BUSHING, Pivot

$

$

Not available

48

Simplicity 2106787

CLIP, Hair Pin

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$

$

Not available

49

Simplicity 1650139

ROD

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$

$

Not available

50

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$

$

Not available

51

Simplicity 2830645

NUT, Flange, 3/8-16

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$

$

Not available

52

Simplicity 1650145

ARM, Lift

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$

$

Not available

53

Simplicity 2101025SM

WASHER

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$4.49

$

Usually ships in 2-12 days

0

54

Simplicity 2172040

HANDLE

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$

$

Not available

55

Simplicity 1650149

KNOB

Note: Used on Mfg. No. 990998, 991000 & 1690012.

$

$

Not available

56

Simplicity 2829001

NUT, Flange, 5/16-18 (Used on 990963)

$

$

Not available

57

Simplicity 2154026

WASHER (Used on 990963)

$

$

Not available

58

Simplicity 2154177SM

SPACER (Used on 9990963)

$41.99

$

In Stock, only 3 left!

0

59

Simplicity 2820563

BOLT, Carriage, 5/16-18 x 1 (Used on 990963)

$

$

Not available

60

Simplicity 2159107SM

WASHER (Used on 990963)

$9.49

$

Usually ships in 2-12 days

0

61

Simplicity 176858

HOOK (Used on 990963)

$

$

Not available

62

Simplicity 175617

GEAR, Steering

$

$

Not available
