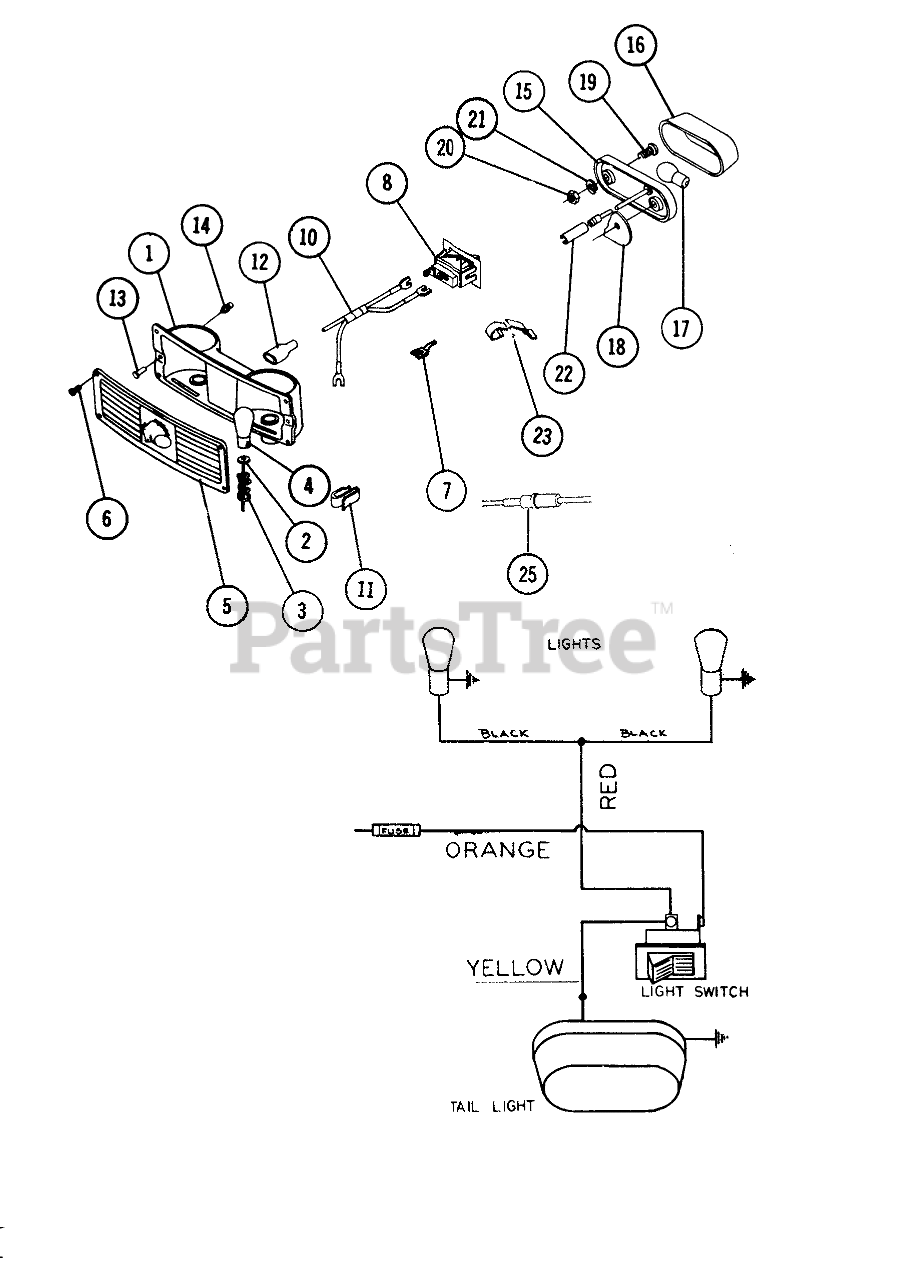

80813 - Toro Head/Tail Light Kit (1973) PARTS LIST LIGHT PANEL #8-0814 Parts Diagram

Head/Tail Light Kit

PARTS LIST LIGHT PANEL #8-0814 Parts Diagram

  • Title

NS

Toro 102651

Terminal

$

$

Not available

NS

Toro 6921

Sur-Plug

$

$

Currently unavailable

1

Toro 7223

ASSY REFLECTOR HOUSI

$

$

Not available

2

Toro 7226

WIRE ASSY

$

$

Not available

3

Toro 7227

SPRING

$

$

Not available

4

Toro 7228

BULB

$23.99

$

Usually ships in 3-6 days

0

5

Toro 103771

Lens
(Superseded to 98-1713)

$71.99

$

In Stock, only 3 left!

0

6

Toro 8279

Screw S. T. 6-32 x 5/8

$

$

Not available

7

Toro 100074

Spade Terminal

$

$

Not available

8

Toro 102138

SWITCH-LIGHTS

$34.99

$

Usually ships in 3-6 days

0

Toro 100763

Switch-Models-1971 & before & Rangers

$

$

Currently unavailable

Toro 8712

MACHINE SCREW

$

$

Not available

10

Toro 102646

Tine RH

$

$

Not available

11

Toro 3023

SPEED CLIP

$

$

Not available

12

Toro 7618

CONNECTOR 3 WIRE

$

$

Not available

13

Toro 923003

Rivet 1/8 x 3/8 Flat Head

$

$

Not available

14

Toro 7429

Nut 1/8 Dia.

$

$

Not available

15

Toro 8041

Base
(Superseded to 105202)

$

$

Not available

16

Toro 8042

Lens
(Superseded to 112564)

$8.49

$

In Stock, Qty 12

0

17

Toro 8043

Bulb

$

$

Currently unavailable

18

Toro 8044

Mounting Pad

$

$

Not available

19

Toro 910810-4

Bolt-Pan Head #10-32 x 7/8

$

$

Currently unavailable

20

Toro 915551-4

Nut #10-32

$

$

Currently unavailable

21

Toro 920079-4

Lockwasher #10

$

$

Currently unavailable

22

Toro 6922

CONNECTOR 2 WIRE

$

$

Not available

23

Toro 8519

CLIP-WIRE

$

$

Not available

25

Toro 102648

Tine Bolt

$

$

Not available

Toro 938007

Bushing

$101.99

$

Usually ships in 3-6 days

0
