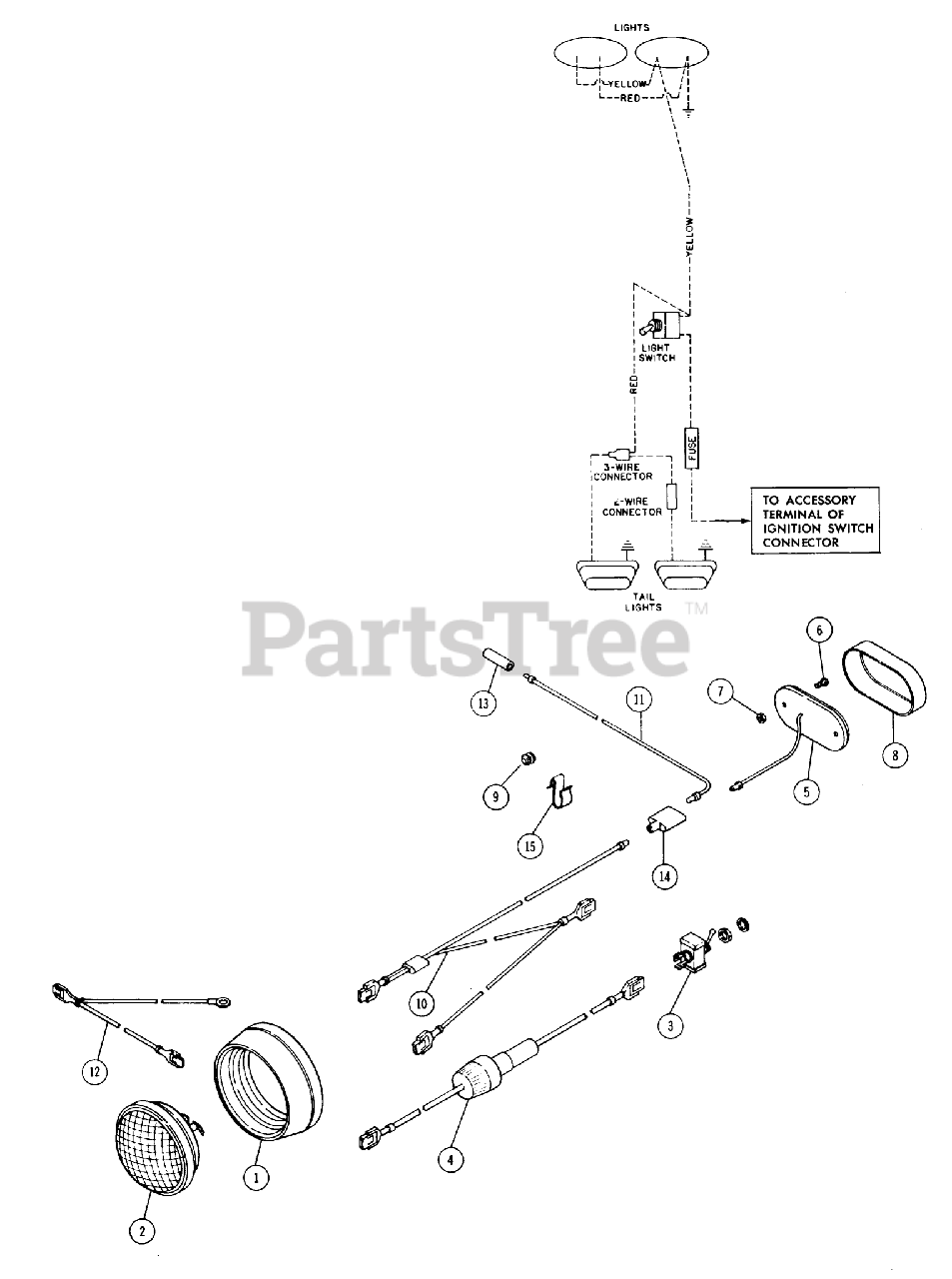

80820 - Toro Head/Tail Light Kit (1974) PARTS LIST-HEAD AND TAIL LIGHT KIT NO. 8-0820 (1974 D-160 MODEL TRACTORS) Parts Diagram

Head/Tail Light Kit

PARTS LIST-HEAD AND TAIL LIGHT KIT NO. 8-0820 (1974 D-160 MODEL TRACTORS) Parts Diagram

  • Title

1

Toro 102081

Grommet

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

2

Toro 102881

HEADLAMP

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

3

Toro 102138

SWITCH-LIGHTS

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$34.99

$

Usually ships in 3-6 days

0

4

Toro 101846

ASSY FUSED CONNECTOR

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

5

Toro 102883

Base-Taillight
(Superseded to 105202)

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

6

Toro 910808-4

Screw, 10-32 X 5/8

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Currently unavailable

7

Toro 5924

HEX NUT 10-32 E.S.

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

8

Toro 102884

Lens-Taillight
(Superseded to 112564)

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$8.49

$

In Stock, Qty 12

0

9

Toro 102893

Grommet

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

10

Toro 102813

Control Clip

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

11

Toro 102814

Wire assembly

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

12

Toro 102815

Wire Assy

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

13

Toro 6922

CONNECTOR 2 WIRE

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

14

Toro 7618

CONNECTOR 3 WIRE

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available

15

Toro 3023

SPEED CLIP

Note: Parts available only through Authorized Dealers. When ordering parts always list Part No. and name of Part. (Specifications subject to change without notice.)

$

$

Not available
