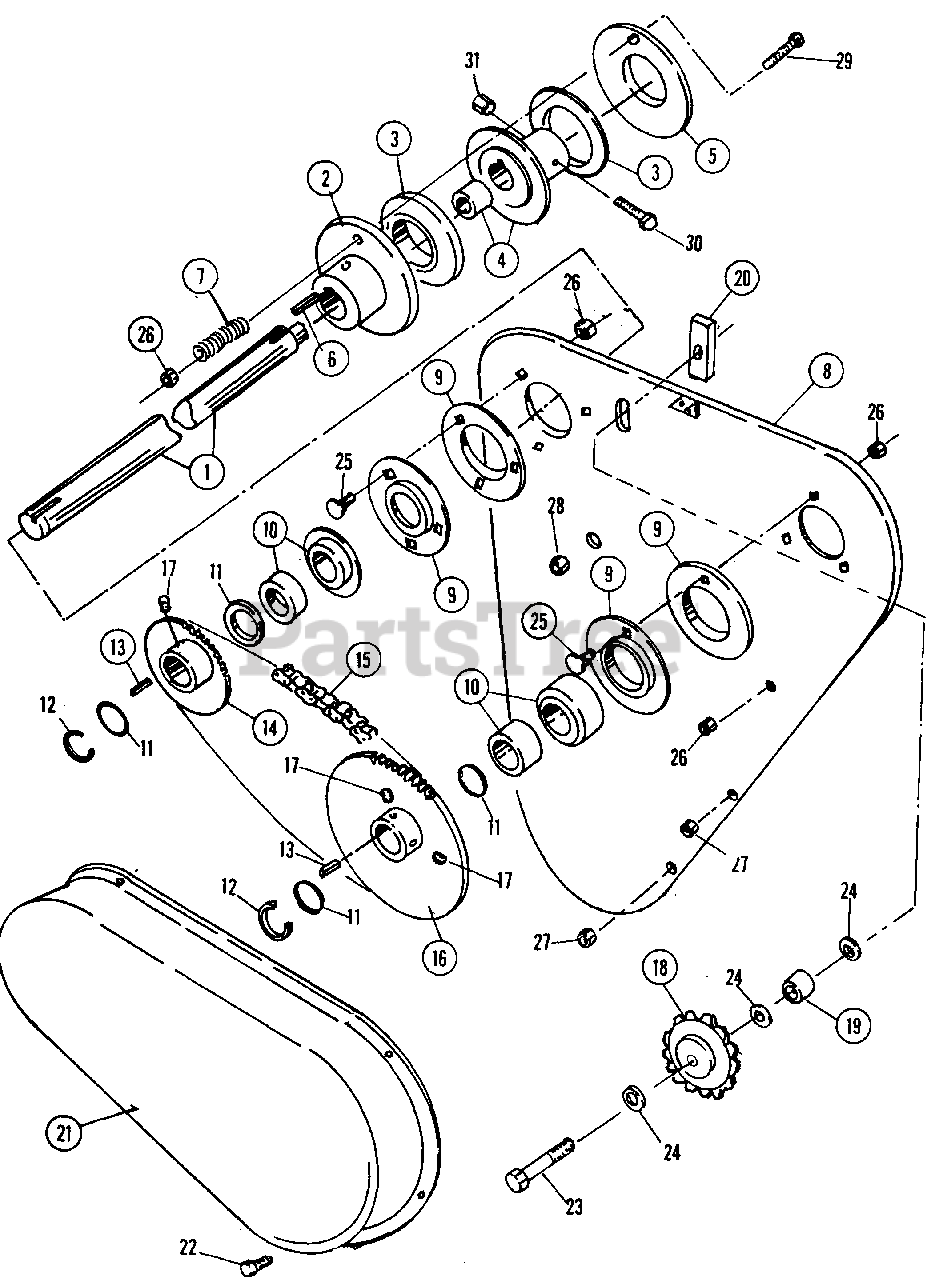

80899 - Snapper 48" Rear PTO Tiller Attachment for MF series Torque Limiter & Outer Drive Chain Parts Diagram

48" Rear PTO Tiller Attachment for MF series

Torque Limiter & Outer Drive Chain Parts Diagram

  • Title

1

Snapper 7013982

SHAFT, DRIVE

$

$

Currently unavailable

2

Snapper 7013977

PLATE, HUB END

$

$

Currently unavailable

3

Snapper 7013135

DISC, CLUTCH

$

$

Currently unavailable

4

Snapper 7013983

HUB & BEARING ASSEMBLY

$

$

Currently unavailable

5

Snapper 7013988

PRESSURE - PLATE

$

$

Currently unavailable

6

Snapper 7012911

KEY, 1/4 SQUARE X 1-1/2

$

$

Currently unavailable

7

Snapper 7013963

SPRING, PRESSURE
(Superseded to 7013963YP)

$6.99

$

Usually ships in 2-12 days

0

8

Snapper 7013967

COVER, INNER

$

$

Currently unavailable

9

Snapper 7013251

FLANGETTE, 3-HOLE

Note: (4 OUTSIDE)

$

$

Currently unavailable

10

Snapper 7013263

BEARING, SEALED

Note: (WITH LOCK COLLAR 1" - 2 OUTSIDE)

$

$

Currently unavailable

11

Snapper 7013370

WASHER, 1" I.D. SHIM
(Superseded to 7013370YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7012709

RING, RETAINING .915 x .044
(Superseded to 703993)

Note: (FOR 1" SHAFT)

$3.49

$

In Stock, only 2 left!

0

13

Snapper 7013250

KEY, 1/4 SQUARE x 1"
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7013817

SPROCKET, 50P, 16 TOOTH

$

$

Currently unavailable

15

Snapper 7013975

CHAIN, ASA 50 ROLLER 78 Pitches

$

$

Currently unavailable

16

Snapper 7013141

SPROCKET, 40 TOOTH

$

$

Currently unavailable

17

Snapper 7013261

SETSCREW, HEX SOCKET

$

$

Currently unavailable

18

Snapper 7013985

SPROCKET, IDLER

$

$

Currently unavailable

19

Snapper 7013971

SPACER, IDLER SPROCKET

$

$

Currently unavailable

20

Snapper 7013972

STRAP, IDLER SUPPORT

$

$

Currently unavailable

21

Snapper 7013970

SHIELD, OUTER DRIVE COVER

$

$

Currently unavailable

22

Snapper 7090361

SCREW, 5/16-18 x 5/8 SELF-TAPPING
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

23

Snapper 7090651

BOLT, 1/2-13 x 2-3/4 HEX - GRADE 5

$

$

Not available

24

Snapper 7090705

NUT, 1/2" PLAIN
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

25

Snapper 7090316

BOLT, 5/16-18 x 3/4 CARRIAGE
(Superseded to 703225)

Note: Was 90670

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7090194

LOCKNUT, 5/16-18 HEX

$

$

Currently unavailable

27

Snapper 7091619

LOCKNUT, 3/8-16 HEX
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

28

Snapper 7090706

LOCKNUT, 1/2-13 HEX

$

$

Currently unavailable

29

Snapper 7091046

BOLT, 5/16-18 x 2-1/2 HEX - GRADE 5
(Superseded to 703868)

Note: Was 90766

$4.99

$

In Stock, only 4 left!

0

30

Snapper 7027176

BOLT, 1/4-20 x 2-1/2 HEX - GRADE 2
(Superseded to 703821)

Note: Was 90371

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 7091705

LOCKNUT, 1/4-20 HEX
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0
