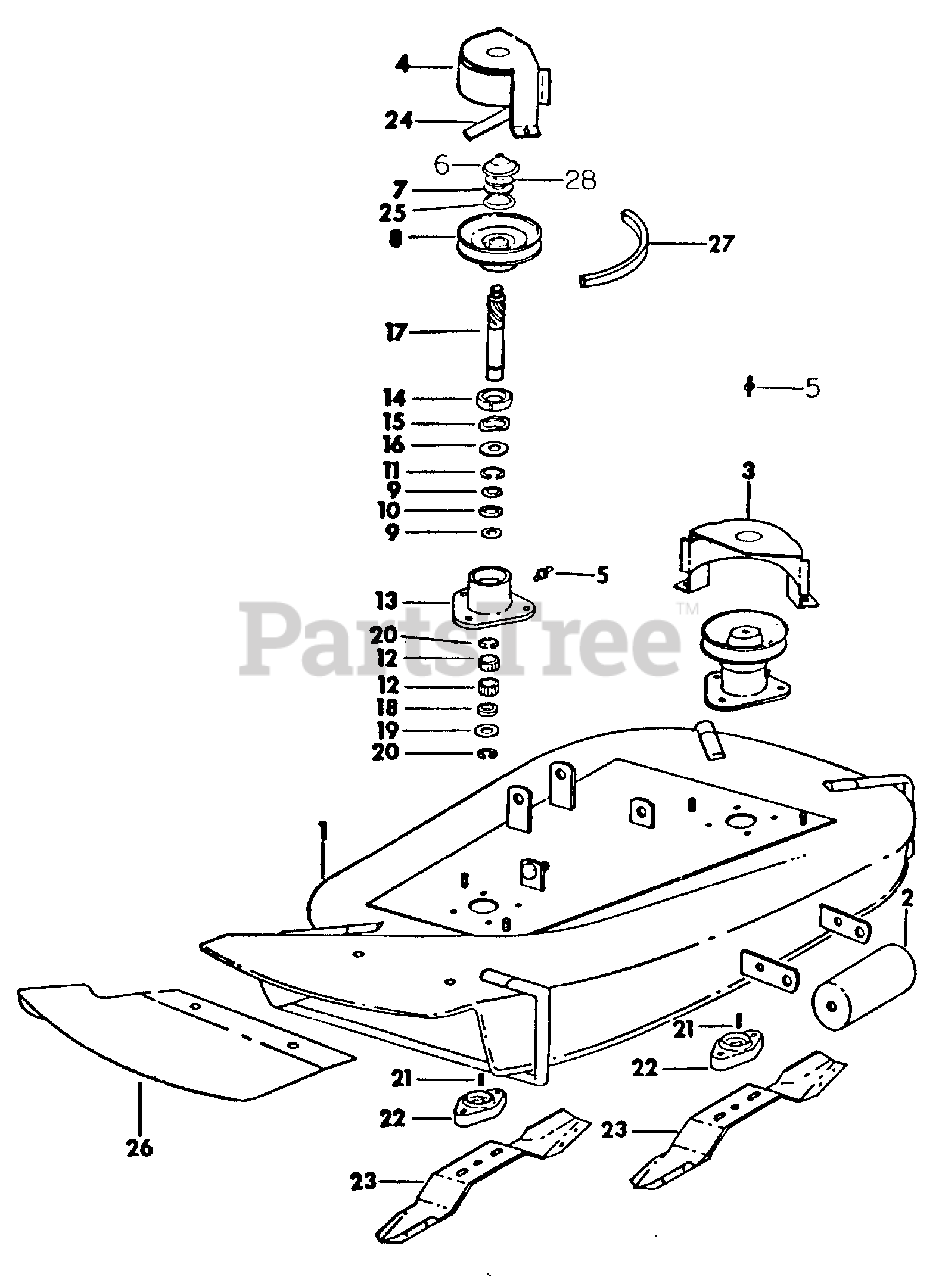

81 (0350003U) - Cub Cadet Lawn Tractor Mower & Connections Parts Diagram

Lawn Tractor

Mower & Connections Parts Diagram

  • Title

1

Cub Cadet 759-3143

Housing Assy, Mower

Note: (See Service Bulletin CC-091)

$

$

Not available

Cub Cadet 710-3058

Screw, 5/16-18 X 3/4 Hex Hd Tap

$

$

Not available

Cub Cadet 703-0625

Plate Assy, Spindle Mounting

Variations

Cub Cadet 703-0625-0498

PLATE-SPINDLE MTG - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 731-3005

Roller, Front

$26.99

$

In Stock, Qty 20+

0

Bolt, 1/2-13 X 8 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Nut, 1/2-13 C-Z Hex Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

3

Cub Cadet 703-0387

Shield Assy, LH

Variations

Cub Cadet 703-0387-0499

SHIELD ASSEMBLY (LH) - CUB BEIGE (0499)

$

$

Not available

$

$

Cub Cadet IH-124824

Nut, 5/16-18 Hex Jam

$

$

Not available

Cub Cadet 736-0275

Washer, 11/32 X .688 X .051 Znd

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-0390

Shield Assy, RH

Variations

Cub Cadet 703-0390-0499

SHIELD ASSEMBLY (RH) - CUB BEIGE (0499)

$

$

Not available

$

$

Cub Cadet IH-124824

Nut, 5/16-18 Hex Jam

$

$

Not available

Cub Cadet 736-0275

Washer, 11/32 X .688 X .051 Znd

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 737-3000

Fitting, 3/16 Str Drive Lube
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-3021

Cup, Seal

$8.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-167047

Screw, 8-32 X 1/2 Znd Cr Pan Hd

$

$

Not available

7

Cub Cadet IH-539222-R2

Washer, Special

$2.49

$

In Stock, only 1 left!

0

8

Cub Cadet 756-3017

Pulley, Outer

$

$

Not available

9

Cub Cadet IH-56645-C1

Race, Needle Thrust Bearing
(Superseded to 736-0617)

$10.99

$

In Stock, Qty 5

0

10

Cub Cadet IH-324105-R91

Bearing, Needle
(Superseded to IH-324105-R92)

$10.99

$

In Stock, only 1 left!

0

11

Cub Cadet 716-3004

Ring, 1-1/4 Internal Retaining

$

$

Not available

12

Cub Cadet 741-3010

Bearing, Needle
(Superseded to 741-0665)

$19.99

$

In Stock, only 1 left!

0

13

Cub Cadet 719-3021

Housing, Blade Shaft

$

$

Not available

14

Cub Cadet 719-3022

Brake, Insert

$34.99

$

Usually ships in 3-6 days

0

15

Cub Cadet IH-539225-R1

Washer, Wave

$

$

Not available

16

Cub Cadet IH-539467-R1

Washer, Stop

$

$

Not available

Cub Cadet 710-3097

Bolt, 3/8 X 1 Znd Sq Nk Crg

$6.49

$

In Stock, Qty 5

0

Cub Cadet 736-0169

Washer, 3/8 Znd Reg Lock

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0798

Nut, 3/8-16 Znd Hex

$3.99

$

In Stock, only 2 left!

0

17

Cub Cadet 711-3071

Shaft, Blade

$

$

Not available

Cub Cadet 712-3035

Nut, 9/16-18 Znd Hex Jam

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 721-3007

Seal, Oil

$

$

Not available

19

Cub Cadet 736-3047

Washer, Thrust

$9.99

$

In Stock, only 1 left!

0

20

Cub Cadet 716-0101

Ring, 3/4 External Retaining

$3.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 714-3009

Key, 3/16 X 1/2 Sq Parallel

$3.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 719-3023

Adapter, Blade

$

$

Not available

Cub Cadet 712-3057

Nut, 5/16-24 Znd Hex
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

Screw, 5/16-24 X 1-3/8 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 C-Z Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-3008

Washer, 11/32 X 3/4 X .12 C-Z
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

23

Cub Cadet 742-3004

Blade, 36 Inch Mower
(Superseded to 759-3814)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-62454-C2

Blade, 36 Inch Mower Coated Edge
(Superseded to 759-3854)

$

$

Not available

Cub Cadet 710-0152

Screw, 3/8-24 X 1 C-Z Hex Hd Cap
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Reg Lock

$3.49

$

In Stock, Qty 20+

0

24

Not used in this application

$

$

Not available

25

Not used in this application

$

$

Not available

26

Cub Cadet 703-0393

Package, 36 Inch Mower Deflector

Note: (Consists of deflector & template instructions)

$

$

Not available

Cub Cadet 710-0118

Screw, 5/16-18 X 3/4 Znd Hex Hd Cap
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0275

Washer, .344 X .688 X .051 Znd

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 736-0119

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 754-3011

Belt, Mower Drive, 1/2 X 68.5 Inch Effective Length
(Superseded to 954-3011)

Note: (Use with 5-1/4 inch dia mower drive pulley)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-56235-C1

Belt, Mower Drive, 1/2 X 68 Inch Effective Length

Note: (Use with 4-5/8 inch dia mower drive pulley)

$

$

Not available

28

Cub Cadet IH-22815-R1

Washer, .906 X 1.25 X .027 Znd

$

$

Not available

Cub Cadet IH-668752-R1

Washer, .906 X 1.25 X .054 Znd

$

$

Not available

Cub Cadet 759-3000

Spindle Package, Lawn Tractor

$

$

Not available

Cub Cadet 737-3000

Fitting, 3/16 Str Drive Type Lube
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3035

Nut, 9/16-18 Hex Jam

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 731-3021

Cup, Grease (Plastic)

$8.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-167047

Screw, 8-32 X 1/2 Znd Cr Rec Pan Hd Mach

$

$

Not available

Cub Cadet IH-539222-R2

Washer, Special

$2.49

$

In Stock, only 1 left!

0

Cub Cadet IH-22815-R1

Washer, .906 X 1.25 X .027 Znd

$

$

Not available

Cub Cadet IH-668752-R1

Washer, .906 X 1.25 X .054

$

$

Not available

Cub Cadet 756-3017

Pulley, Outer

$

$

Not available

Cub Cadet IH-56645-C1

Race, Needle Thrust Bearing
(Superseded to 736-0617)

$10.99

$

In Stock, Qty 5

0

Cub Cadet IH-324105-R91

Bearing, Needle
(Superseded to IH-324105-R92)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 716-3004

Ring, 1-1/4 Internal Retaining

$

$

Not available

Cub Cadet 741-3010

Bearing, Needle
(Superseded to 741-0665)

$19.99

$

In Stock, only 1 left!

0

Cub Cadet 719-3021

Housing, Blade Shaft

$

$

Not available

Cub Cadet 719-3022

Brake, Insert

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-539225-R1

Washer, Wave

$

$

Not available

Cub Cadet IH-539467-R1

Washer, Stop

$

$

Not available

Cub Cadet 711-3071

Shaft, Blade

$

$

Not available

Cub Cadet 721-3007

Seal, Grease

$

$

Not available

Cub Cadet 736-3047

Washer, Thrust

$9.99

$

In Stock, only 1 left!

0

Cub Cadet 716-0101

Ring, External Retaining

$3.49

$

Usually ships in 3-6 days

0

Cub Cadet 714-3009

Key, 3/16 X 1/2 Sq Parallel

$3.49

$

Usually ships in 3-6 days

0

Cub Cadet 719-3023

Adapter, Blade

$

$

Not available

Cub Cadet 712-3057

Nut, 5/16-24 Znd Hex
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

Screw, 5/16-24 X 1-3/8 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-3008

Washer, 11/32 X 3/4 X .12 Znd
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet 710-0152

Screw, 3/8-24 X 1 Znd Hex Hd Cap
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 710-3097

Bolt, 3/8 X 1 Znd Sq Nk Crg

$6.49

$

In Stock, Qty 5

0

Cub Cadet 712-0798

Nut, 3/8-16 Znd Hex

$3.99

$

In Stock, only 2 left!

0

Cub Cadet 736-0169

Washer, 3/8 Znd Reg Lock

$3.49

$

In Stock, Qty 20+

0
