81-16OS01 (D-160) - Toro Lawn Tractor (1978) BRAKE AND MOTION CONTROL LINKAGE Parts Diagram

Lawn Tractor

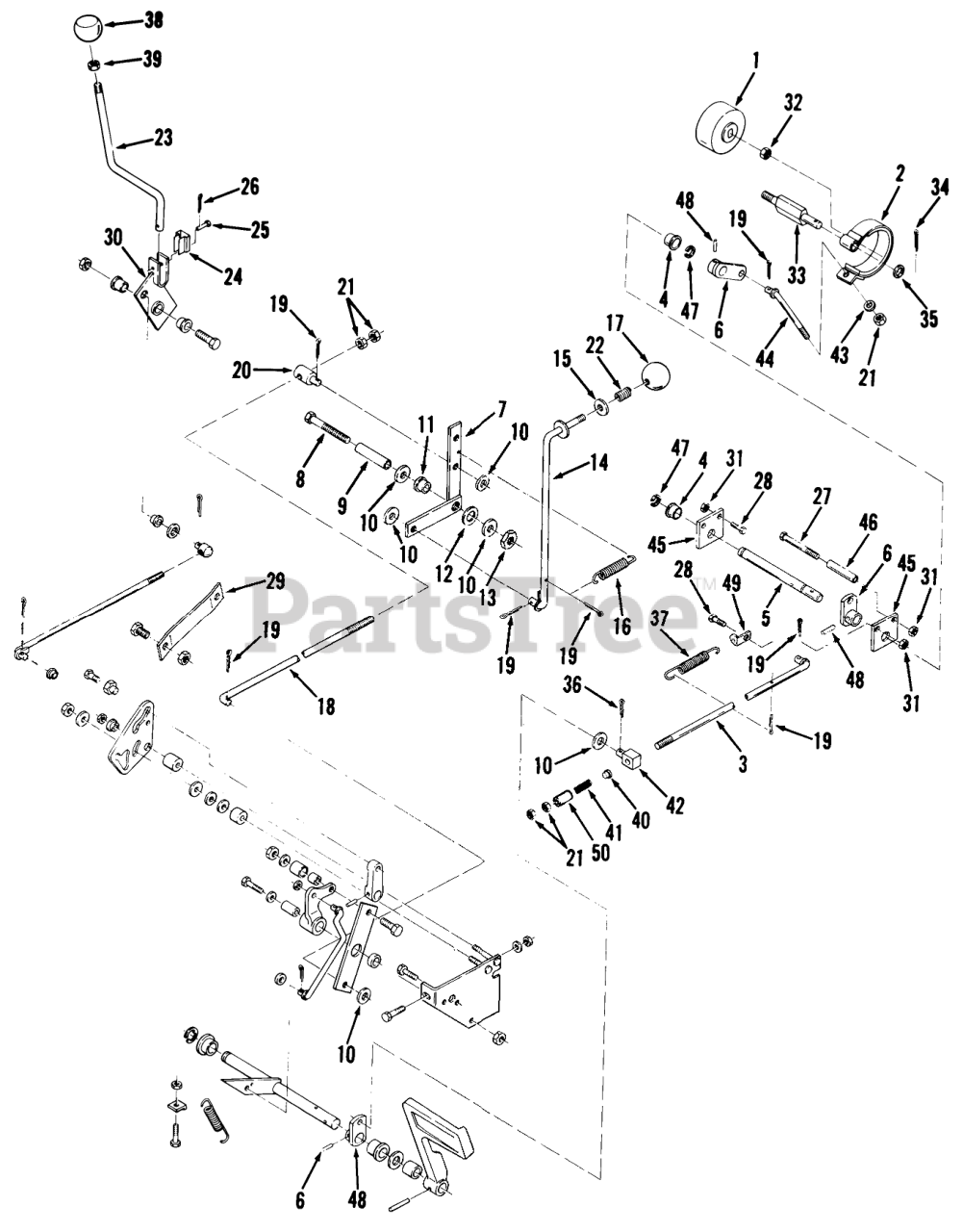

BRAKE AND MOTION CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 106328

ASSY-BRAKE DRUM

$

$

Not available

2

Toro 106672

ASSY-BRAKE BAND&LINE

$

$

Not available

3

Toro 106670

Assy-Rod

$

$

Not available

4

Toro 101442

BEARING

$

$

Not available

5

Toro 106667

Brake Shaft

$

$

Not available

6

Toro 106668

Brake Arm

$

$

Not available

7

Toro 104917

Assy-Arm Brake

$

$

Not available

8

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, Qty 19

0

9

Toro 979234

Spacer

$

$

Currently unavailable

10

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

11

Toro 5179

FLANGED BUSHING

$

$

Not available

12

Toro 920215

Washer
(Superseded to 9202154)

$1.99

$

In Stock, only 2 left!

0

13

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

14

Toro 104920

Assy-Brake Rod

$

$

Not available

15

Toro 920253

Washer-Nylon

$

$

Not available

16

Toro 101475

SPRING

$

$

Not available

17

Toro 102871

SHIFT KNOB

$

$

Not available

18

Toro 9082

Rod

$

$

Not available

19

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

20

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 7

0

21

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

22

Toro 3624

SPRING-COMPRESSION

$4.99

$

In Stock, only 2 left!

0

23

Toro 102391

HANDLE

$

$

Not available

24

Toro 102691

Spring

$

$

Not available

25

Toro 932913

Clevis Pin

$

$

Not available

26

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

27

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

28

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

29

Toro 104912

Brace

$

$

Not available

30

Toro 106699

Assy-Pivot

$

$

Not available

31

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

32

Toro 915638

E.S. Nut 9/16-18 Thin
(Superseded to 3296-57)

$1.49

$

Usually ships in 3-6 days

0

33

Toro 106664

DISC WHEN EXP

$

$

Not available

34

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

35

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

36

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

37

Toro 101475

SPRING

$

$

Not available

38

Toro 102891

KNOB

$61.99

$

Usually ships in 3-6 days

0

39

Toro 915238

Jam Nut
(Superseded to 3218-5)

$1.49

$

In Stock, Qty 10

0

40

Toro 106662

BUSHING-FLANGED

$

$

Not available

41

Toro 104841

SPRING

$2.49

$

In Stock, Qty 5

0

42

Toro 106708

Trunnion

$

$

Not available

43

Toro 5189

SPACER

$

$

Not available

44

Toro 6980

ROD CLAMP

$

$

Not available

45

Toro 106671

Support Plate

$

$

Not available

46

Toro 979180

SPACER .375 ID X 1.6

$

$

Not available

47

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

48

Toro 933214

ROLL PIN 1/4X1 1/8

$

$

Not available

49

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0
