81-16OS01 (D-160) - Toro Lawn Tractor (1978) D-160 ONAN ENGINE, CARBURETOR PARTS GROUP Parts Diagram

Lawn Tractor

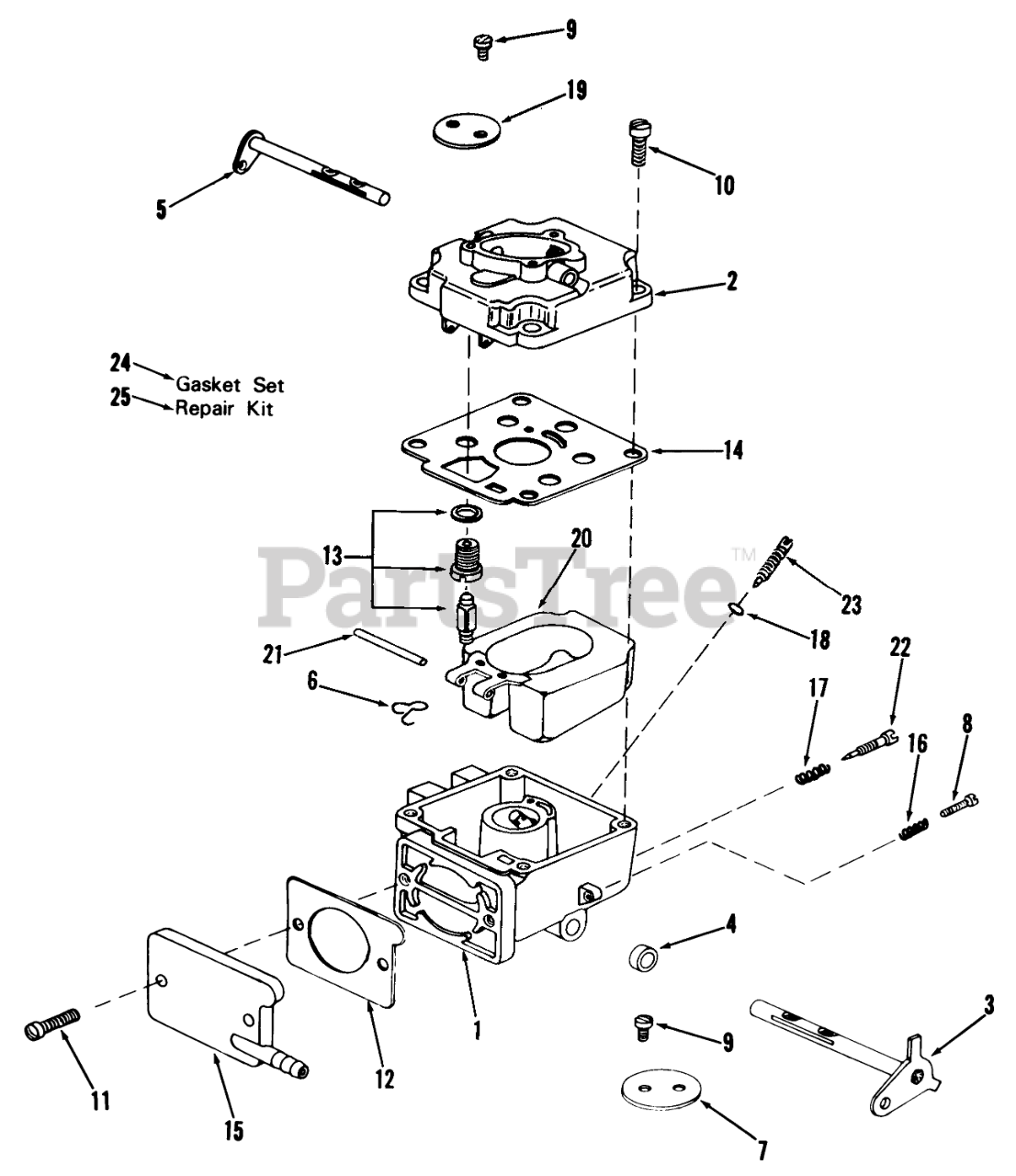

D-160 ONAN ENGINE, CARBURETOR PARTS GROUP Parts Diagram

  • Title

1

Toro 201198

Lower Body Assy

$

$

Not available

2

Toro 201199

Sleeve Assy

$

$

Not available

3

Toro 201200

Shaft-Throttle

$

$

Currently unavailable

4

Toro 201201

Packing Shaft

$

$

Not available

5

Toro 201202

SHAFT-CHOKE

$82.99

$

Usually ships in 3-6 days

0

6

Toro 201203

CLIP-FLOAT VALVE

$

$

Not available

7

Toro 201204

Throttle Fly

$

$

Not available

8

Toro 201205

Screw-Throttle Stop

$

$

Not available

9

Toro 201206

Screw-Fly Mounting

$

$

Currently unavailable

10

Toro 201207

SCREW-BOWL COVER MTG

$77.99

$

Usually ships in 3-6 days

0

11

Toro 201208

Screw-Inlet Plate

$

$

Currently unavailable

12

Toro 201209

Gasket-Plate
(Superseded to 201221)

$

$

Not available

13

Toro 201210

Float Valve Assy

$

$

Not available

14

Toro 201211

GASKET

$18.99

$

Usually ships in 3-6 days

0

15

Toro 201212

Carburetor Inlet Plate

$

$

Not available

16

Toro 201213

Spring-Throttle Stop

$

$

Not available

17

Toro 201214

Spring-Idle Needle

$

$

Not available

18

Toro 201215

GASKET-O RING

$

$

Not available

19

Toro 201216

Choke Fly

$

$

Not available

20

Toro 201217

Float & Lever Assy

$

$

Not available

21

Toro 201218

Shaft,Float Lever

$

$

Currently unavailable

22

Toro 201219

Idle Needle

$

$

Not available

23

Toro 201220

High Speed Needle

$

$

Not available

24

Toro 201221

Not Shown Gasket Set Inc All

$

$

Not available

25

Toro 201222

Not Shown Repair Kit Inc All

$

$

Not available
