81-16OS01 (D-160) - Toro Lawn Tractor (1978) D-160 ONAN ENGINE, GEAR COVER, OIL BASE AND PUMP GROUP Parts Diagram

Lawn Tractor

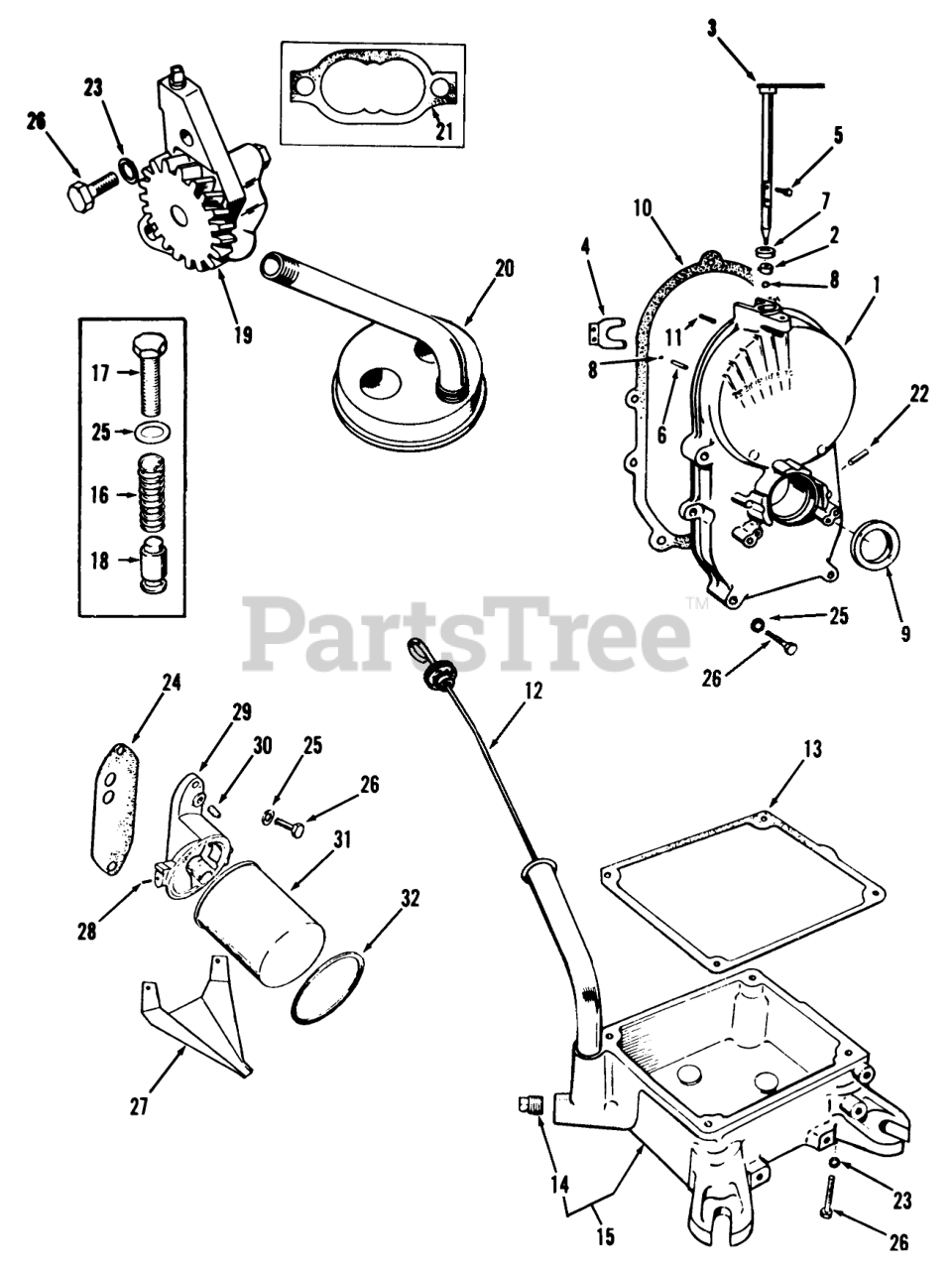

D-160 ONAN ENGINE, GEAR COVER, OIL BASE AND PUMP GROUP Parts Diagram

  • Title

1

Toro 201062

Cover Assy

Note: Included in COVER ASSEMBLY.

$

$

Not available

2

Toro 201063

Governor Shaft Bearing
(Superseded to 57-9650)

Note: Included in COVER ASSEMBLY.

$

$

Not available

3

Toro 201064

Shaft and Arm Assy-Governor
(Superseded to 59-0440)

Note: Included in COVER ASSEMBLY.

$91.99

$

Usually ships in 3-6 days

0

4

Toro 201065

Yoke-Governor Shaft
(Superseded to 59-0420)

Note: Included in COVER ASSEMBLY.

$

$

Not available

5

Toro 201066

Yoke Retaining Screw
(Superseded to 59-0950)

Note: Included in COVER ASSEMBLY.

$

$

Not available

6

Toro 201067

Pin,Governor-Cup Stop
(Superseded to 59-0740)

Note: Included in COVER ASSEMBLY.

$6.49

$

In Stock, only 1 left!

0

7

Toro 201068

Oil Seal-Governor Shaft
(Superseded to 57-9570)

Note: Included in COVER ASSEMBLY.

$

$

Not available

8

Toro 201069

Ball Bearing-Governor Shaft
(Superseded to 57-9630)

Note: Included in COVER ASSEMBLY.

$

$

Not available

9

Toro 201070

Seal-Gear Cover
(Superseded to 57-9580)

Note: Included in COVER ASSEMBLY.

$

$

Not available

10

Toro 201071

Gasket-Gear Cover Mounting
(Superseded to 71-6360)

$

$

Not available

11

Toro 201072

Pin, Gear Cover (5/16 x 1/8)

$

$

Currently unavailable

12

Toro 201073

OIL FILL-CAP&INDICTR

$

$

Not available

13

Toro 201074

Oil Base Mounting Gasket

$

$

Not available

14

Toro 201075

Oil Drain Plug

$

$

Currently unavailable

15

Toro 201076

Oil Base
(Superseded to NN10558)

$

$

Not available

16

Toro 201077

Spring-Oil By-Pass Valve
(Superseded to 59-0280)

$

$

Not available

17

Toro 201078

Screw-Oil By-Pass 3/8-24 X 1

$

$

Currently unavailable

18

Toro 201079

Oil By-Pass Valve
(Superseded to 57-8470)

$

$

Not available

19

Toro 201080

Oil Pump-Complete
(Superseded to 57-8480)

$

$

Not available

20

Toro 201081

Oil Pump Intake Assy
(Superseded to 57-8490)

$143.99

$

Usually ships in 3-6 days

0

21

Toro 201082

Oil Pump Gasket Kit
(Superseded to 57-8460)

$

$

Not available

22

Toro 201083

Fuel Pump Vacuum Tube
(Superseded to 59-0360)

Note: Included in COVER ASSEMBLY.

$

$

Not available

23

Toro 201085

Oil Pump Mounting (1/4")

$

$

Currently unavailable

23

Toro 201084

Oil Base Mounting (3/8")

$

$

Currently unavailable

24

Toro 201086

Gasket-Oil Filter Pad Cover

$

$

Not available

25

Toro 201089

Copper Washer 5/16 Gear Cover
(Superseded to 57-9750)

$

$

Not available

25

Toro 201088

Copper Washer-3/8 Oil Pressure
(Superseded to 57-9760)

$

$

Not available

25

Toro 201087

Copper Washer-3/8 Oil Filter
(Superseded to 57-9750)

$

$

Not available

26

Toro 201090

Hex Bolt-Oil Filter Adapter

$

$

Currently unavailable

26

Toro 201094

Hex Bolt-Oil Pump 1/4-20 X 1

$

$

Currently unavailable

26

Toro 201093

Hex Bolt-Gear Cover 2 1/4 Long

$

$

Currently unavailable

26

Toro 201092

Hex Bolt-Gear Cover 1 3/4 Long

$

$

Currently unavailable

26

Toro 201091

Hex Bolt-Oil Base To Block

$

$

Currently unavailable

27

Toro 201095

Dain, Oil Filter

$

$

Not available

28

Toro 201096

Hex HD Screw With Et Washer

$

$

Currently unavailable

29

Toro 201097

Oil Filter Adapter
(Superseded to 82-0500)

$

$

Not available

30

Toro 201098

Square HD Plug

$

$

Not available

31

Toro 201099

Oil Filter
(Superseded to 108-3817)

$8.49

$

In Stock, only 4 left!

0

32

Toro 201100

Oil Filter Air Seal

$

$

Not available
