81-20KS01 (D-200) - Toro Lawn Tractor (1978) D-160 ONAN ENGINE, GOVERNOR, STARTER, CHARGING ALTERNATOR AND BLOWER HOUSING GROUP Parts Diagram

Lawn Tractor

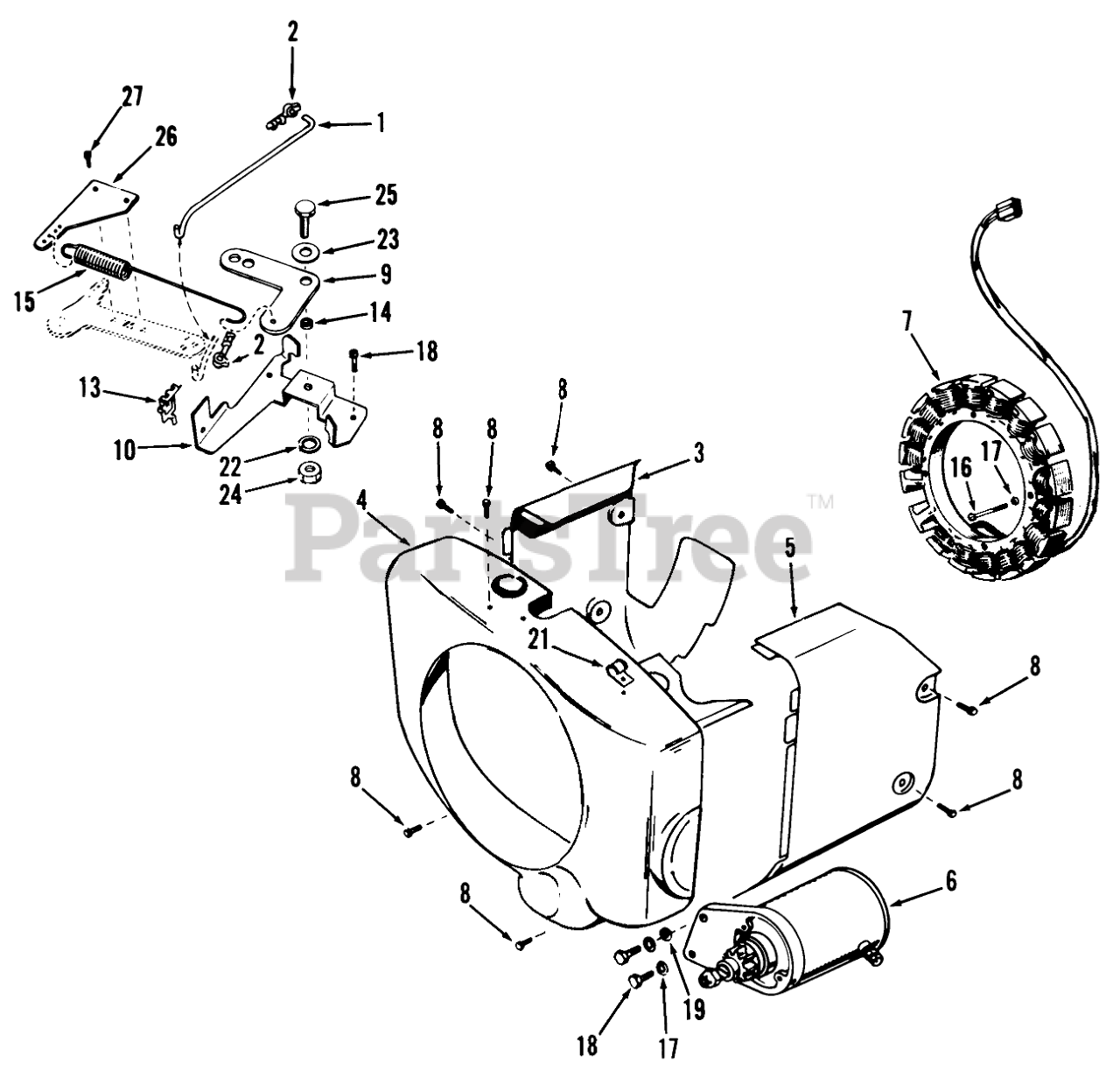

D-160 ONAN ENGINE, GOVERNOR, STARTER, CHARGING ALTERNATOR AND BLOWER HOUSING GROUP Parts Diagram

  • Title

1

Toro 201246

ROD-GOV CONTROL

$

$

Not available

2

Toro 201248

GOV END-CONTROL ROD

$

$

Not available

2

Toro 201247

Carburetor End
(Superseded to 57-9700)

$5.49

$

In Stock, only 1 left!

0

3

Toro 201249

Shroud-Left Side

$

$

Not available

4

Toro 201250

Blower Housing

$

$

Not available

5

Toro 201251

Shroud-Right Side

$

$

Not available

6

Toro 201252

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Toro 201253

Alternator Stator
(Superseded to 92-0967)

$417.99

$

Usually ships in 3-6 days

0

8

Toro 201254

Bolt 1/4-20 X 7/16
(Superseded to 59-0970)

$

$

Not available

9

Toro 201256

Governor Control Arm
(Superseded to 79-6410)

$

$

Not available

10

Toro 201257

Governor Mounting Bracket

$

$

Not available

14

Toro 201261

Governor Control Bushing
(Superseded to 57-9120)

$

$

Not available

15

Toro 201262

Governor Spring

$

$

Not available

16

Toro 201264

Round HD Screw 10-32 X 1 1/2
(Superseded to 82-1490)

$

$

Not available

17

Toro 201267

Lockwasher 5/16 Starter

$

$

Not available

17

Toro 201266

Stator Mounting (#10)

$

$

Not available

18

Toro 201269

Hex Bolt #8 X 3/8 Governor

$

$

Not available

18

Toro 201268

Hex Bolt 5/16-18 Starter

$

$

Not available

19

Toro 201271

Washer-Starter-Top Hole

$

$

Not available

21

Toro 201273

Clip-Fuel Hose

$

$

Not available

22

Toro 201274

Lockwasher 1/4

$

$

Not available

23

Toro 201275

Washer
(Superseded to 57-9740)

$

$

Not available

24

Toro 201276

Nut 1/4-20

$

$

Currently unavailable

25

Toro 201277

Hex Bolt

$

$

Currently unavailable

26

Toro 201278

ADAPTOR-GOV ARM

$46.99

$

Usually ships in 3-6 days

0

27

Toro 910343

Screw 10-32 X 1/2

$

$

Currently unavailable
