81180 (LT 12.5) - Lawn-Boy Lawn Tractor (SN: 003900001 - 003999999) (1993) ENGINE BRIGGS & STRATTON MODEL 254707-0128-01 Parts Diagram

Lawn Tractor

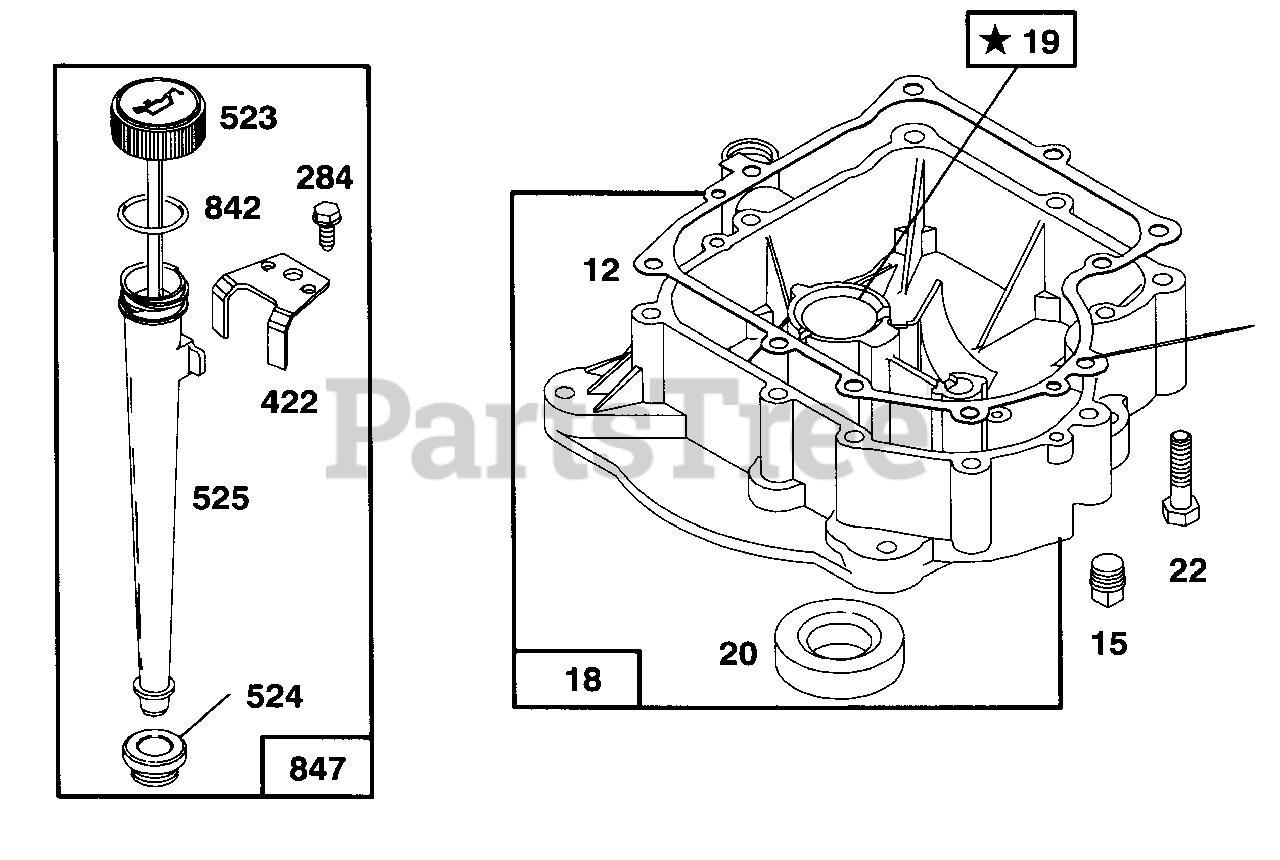

ENGINE BRIGGS & STRATTON MODEL 254707-0128-01 Parts Diagram

  • Title

12

Lawn-Boy 271702

Gasket-Crankcase Cover (1/64" Thick)

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

Lawn-Boy 270915

Gasket-Crankcase Cover (.005" Thick)

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

Lawn-Boy 270916

Gasket-Crankcase Cover (.009" Thick)

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

15

Lawn-Boy 94239

Plug-Oil Drain

$

$

Currently unavailable

18

Lawn-Boy 391784

Sump-Engine

$

$

Currently unavailable

19

Lawn-Boy 490666

Bushing-Sump

$

$

Currently unavailable

20

Lawn-Boy 291675

Seal-Oil

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

22

Lawn-Boy 93585

Screw-Sump Mtg.

$

$

Currently unavailable

284

Lawn-Boy 94419

Screw-Clamp Mtg.

$

$

Currently unavailable

422

Lawn-Boy 223394

Clamp-Oil Filler Tube

$

$

Currently unavailable

523

Lawn-Boy 391841

Cap and Dipstick Oil Filler

$

$

Currently unavailable

524

Lawn-Boy 68838

Seal-Filler Tube

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

525

Lawn-Boy 280134

Tube-Oil Filler

$

$

Currently unavailable

842

Lawn-Boy 270920

Seal-Oil Filler Cap

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

847

Lawn-Boy 392067

Fill Group-Oil

$

$

Currently unavailable
