81180 (LT 12.5) - Lawn-Boy Lawn Tractor (SN: 003900001 - 003999999) (1993) STEERING ASSEMBLY (MODEL NO. 81180 & 81181 ONLY) Parts Diagram

Lawn Tractor

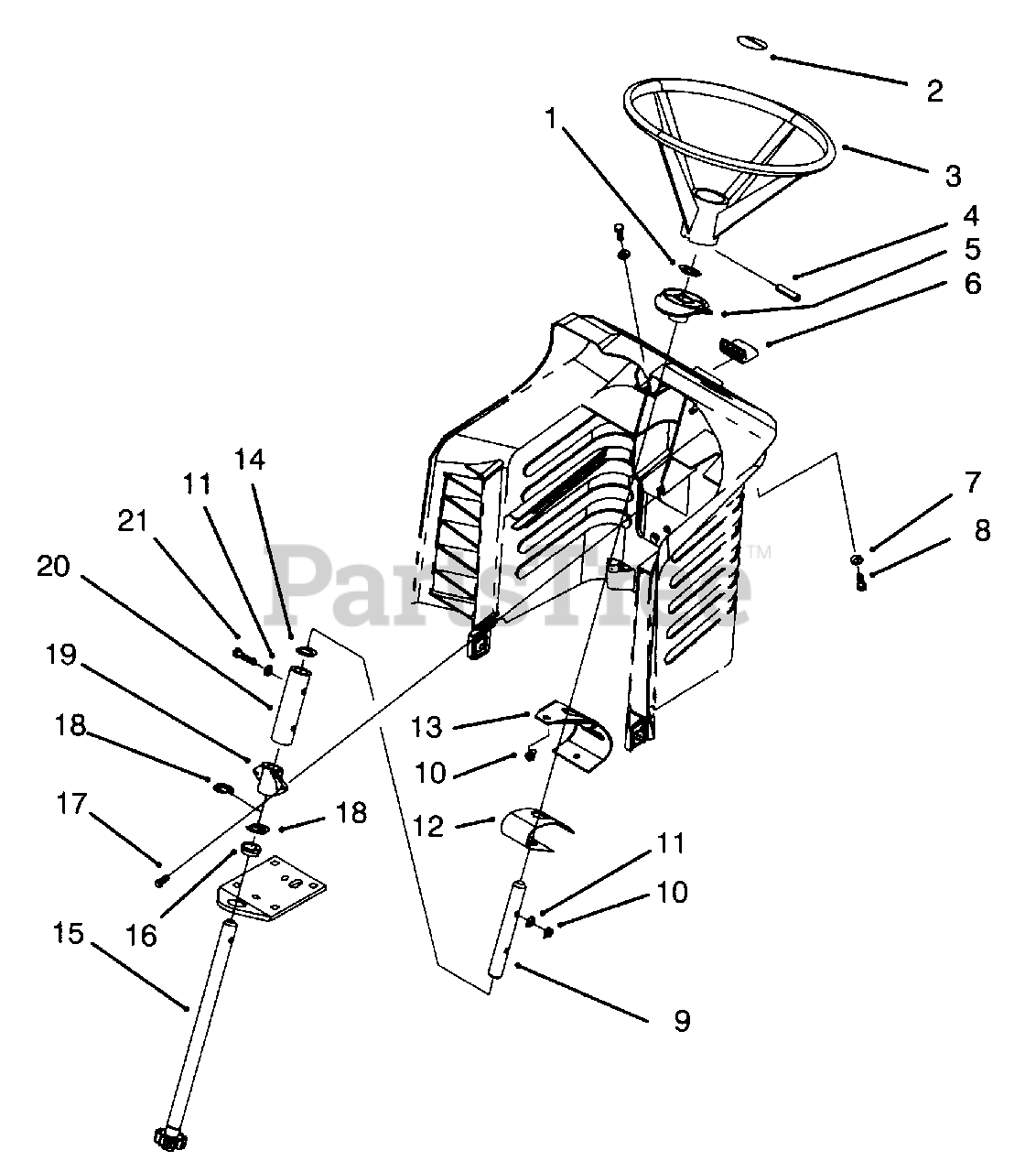

STEERING ASSEMBLY (MODEL NO. 81180 & 81181 ONLY) Parts Diagram

  • Title

1

Lawn-Boy 32151-81

Ring-Retaining

$

$

Not available

2

Lawn-Boy 88-9840

Insert-Steering Wheel

$

$

Not available

3

Lawn-Boy 49-3241

Wheel-Steering (Incl. Ref. #2)

$222.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 32121-78

Pin-Roll

$3.49

$

In Stock, Qty 7

0

5

Lawn-Boy 88-4190

Bushing-Sliding

$16.99

$

In Stock, only 3 left!

0

6

Lawn-Boy 88-4180

Button-Release

$

$

Not available

7

Lawn-Boy 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 321-4

Screw-Hex Hd. Cap

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 88-6300

Shaft-Steering Upper

$36.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 3-7501

Washer-Curved

$6.49

$

In Stock, Qty 15

0

12

Lawn-Boy 88-5180

Bracket-Backup

$

$

Not available

13

Lawn-Boy 88-4890

Spring-Leaf

$26.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 3-6498

Washer-Thrust

$6.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 88-6370

Shaft-Steering Short

$

$

Not available

16

Lawn-Boy 88-5150

Bushing-Flange

$3.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 27-0220

Screw-Plastite

$7.99

$

In Stock, only 4 left!

0

18

Lawn-Boy 32151-48

E-Ring

$1.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 88-4210

Bushing-Stationary

$17.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 88-6090

Coupling-Steering

$135.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 321-9

Screw-Hex Hd. Cap

$4.99

$

In Stock, only 1 left!

0
