81180 (LT 12.5) - Lawn-Boy Lawn Tractor (SN: 003900001 - 003999999) (1993) TRANSAXLE ASSEMBLY (MODEL NO. 81140 & 81180 ONLY) Parts Diagram

Lawn Tractor

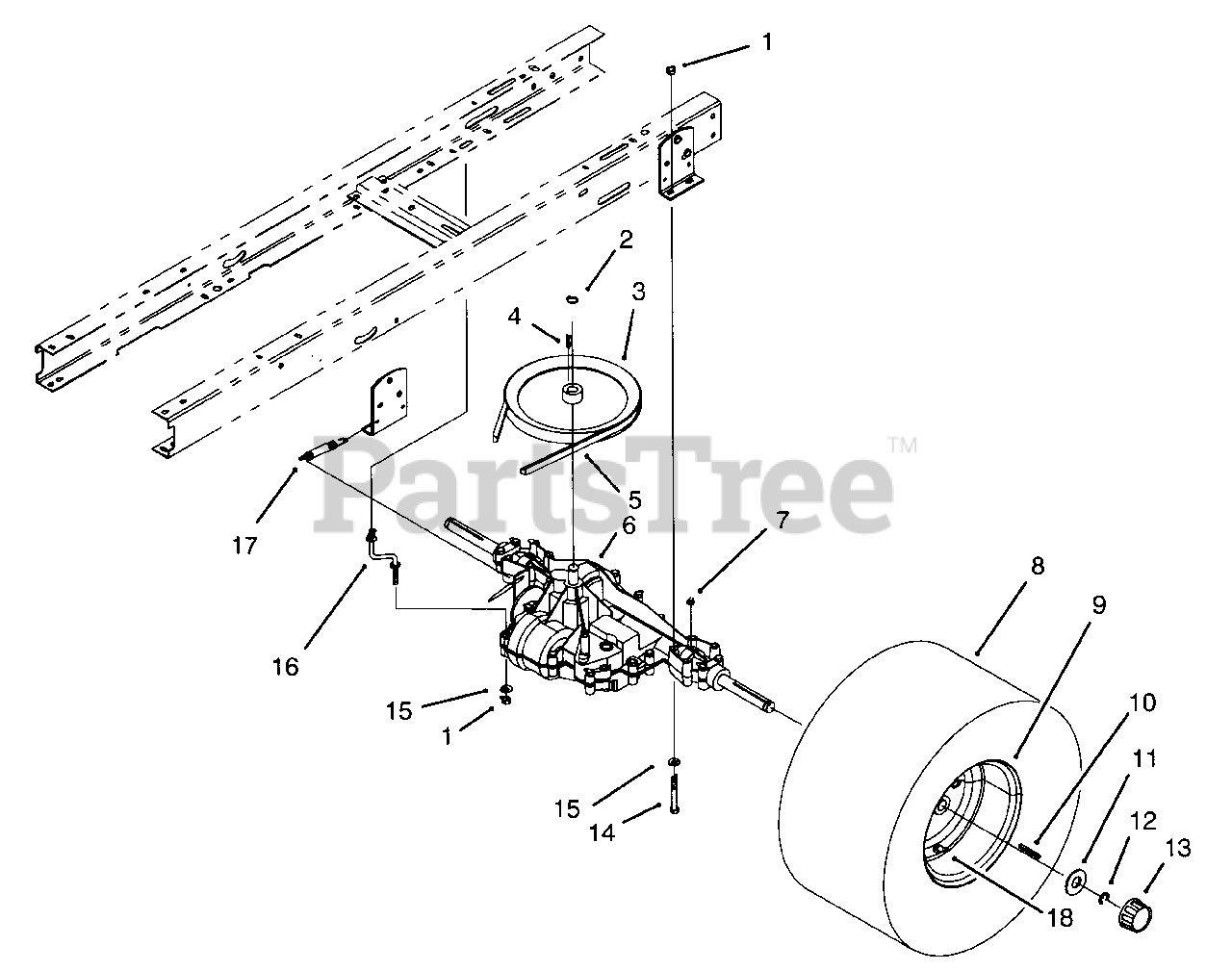

TRANSAXLE ASSEMBLY (MODEL NO. 81140 & 81180 ONLY) Parts Diagram

  • Title

1

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 32120-64

Ring-Snap

$3.49

$

In Stock, Qty 16

0

3

Lawn-Boy 88-4840

Pulley-Transmission

$148.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 3257-23

Key-Woodruff

$7.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 88-6270

V-Belt-Traction (Model No. 81140 Only)

$50.99

$

In Stock, only 1 left!

0

Lawn-Boy 88-6240

V-Belt-Traction (Model No. 81180 Only)

Note: Not Illustrated

$72.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 88-6450

Transaxle

$

$

Not available

7

Lawn-Boy 302-11

Fitting-Grease

$1.49

$

In Stock, only 4 left!

0

8

Lawn-Boy 88-4080

Tire (Model No. 81140 Only)

$

$

Not available

Lawn-Boy 88-4090

Tire (Model No. 81180 Only

Note: Not Illustrated

$

$

Not available

9

Lawn-Boy 88-4380

Rim (Model No. 81140 Only

$300.99

$

Usually ships in 3-6 days

0

Lawn-Boy 88-4390

Rim (Model No. 81180 Only)

Note: Not Illustrated

$215.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 7-0036

Key-Square

$

$

Not available

11

Lawn-Boy 28-2480

Washer

$4.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 32151-48

E-Ring

$1.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 61-9780

Cap-Hub

$7.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 322-12

Screw-Hex Hd. Cap
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

15

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 88-5350

Strap-Torque

$47.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 26-6701

Spring-Brake Return

$22.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 232-27

Valve Stem w/Cap
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

Lawn-Boy 88-4290

Wheel & Tire Assembly 16" (Incl. Ref. #8 & 9)(Model No. 81140 Only)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 88-4300

Wheel & Tire Assembly 18" (Incl. Ref. #8 & 9)(Model No. 81180 Only)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 232-41

Inner Tube-16" (Optional)
(Superseded to 232-37)

Note: Not Illustrated

$33.99

$

In Stock, only 2 left!

0

Lawn-Boy 232-91

Inner Tube-18" (Optional)
(Superseded to 231-91)

Note: Not Illustrated

$198.99

$

Usually ships in 3-6 days

0
