81191 (LT 13 H) - Lawn-Boy Lawn Tractor (SN: 005900001 - 005999999) (1995) TRANSAXLE ASSEMBLY (MODEL NO. 81182 & 81180 ONLY) Parts Diagram

Lawn Tractor

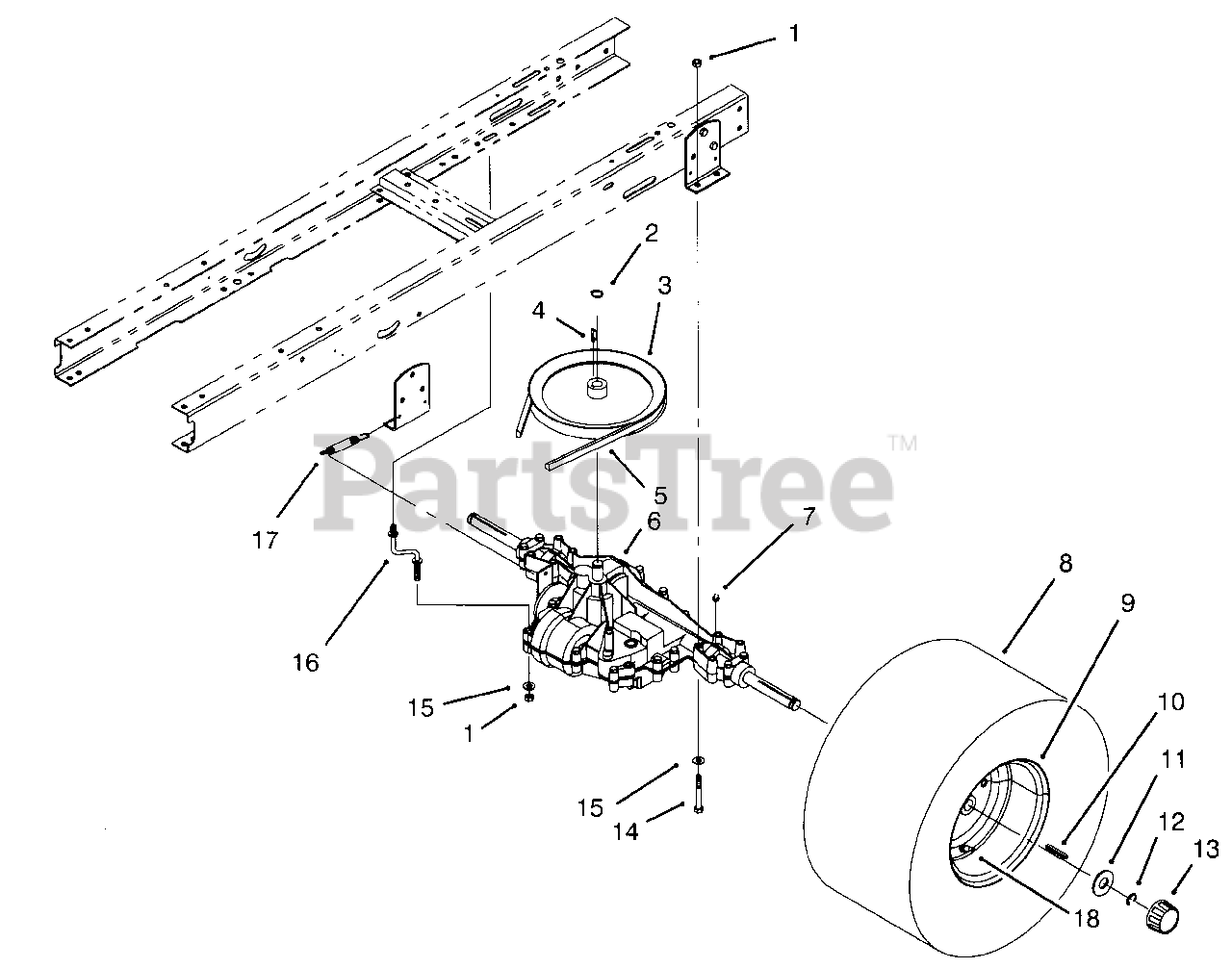

TRANSAXLE ASSEMBLY (MODEL NO. 81182 & 81180 ONLY) Parts Diagram

  • Title

1

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 32120-64

Ring-Snap

$3.99

$

In Stock, Qty 18

0

3

Lawn-Boy 88-4840

Pulley-Transmission

$178.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 3257-23

Key-Woodruff

$7.99

$

In Stock, Qty 9

0

5

Lawn-Boy 88-6270

V-Belt-Traction(Model No. 81182 Only)

$53.99

$

In Stock, only 1 left!

0

Lawn-Boy 88-6240

V-Belt-Traction(Model No. 81180 Only)

Note: Not Illustrated

$86.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 88-6450

Transaxle

$

$

Not available

7

Lawn-Boy 302-11

Fitting-Grease

$1.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 88-4080

Tire(Model No. 81182 Only)

$

$

Not available

Lawn-Boy 88-4090

Tire(Model No. 81180 Only)

Note: Not Illustrated

$

$

Not available

9

Lawn-Boy 88-4380

Rim(Model No. 81180 Only)

$

$

Not available

Lawn-Boy 88-4390

Rim(Model No. 81180 Only)

Note: Not Illustrated

$

$

Not available

10

Lawn-Boy 7-0036

Key-Square

$

$

Not available

11

Lawn-Boy 28-2480

Washer

$5.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 32151-48

E-Ring

$1.99

$

In Stock, Qty 13

0

13

Lawn-Boy 61-9780

Cap-Hub

$8.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 322-12

Screw-Hex Hd. Cap
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

15

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 88-5350

Strap-Torque

$51.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 26-6700

Spring-Brake Return

$

$

Not available

18

Lawn-Boy 232-27

Valve Stem w/Cap
(Superseded to 5108)

$7.49

$

In Stock, Qty 7

0

Lawn-Boy 88-4290

Wheel & Tire Assembly 16" (Incl Ref. #8, 9)(Model No. 81182 Only)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 88-4300

Wheel & Tire Assembly 18" (Incl Ref. #8, 9)(Model No. 81180 Only)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 232-41

Inner Tube-18"(Optional)
(Superseded to 232-37)

Note: Not Illustrated

$35.99

$

In Stock, only 2 left!

0

Lawn-Boy 231-91

Inner Tube-16"(Optional)

Note: Not Illustrated

$210.99

$

Usually ships in 3-6 days

0
