81228 (Z 310) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) GASKET ASSEMBLY BRIGGS AND STRATTON 280H07-0166-E1 Parts Diagram

Precision Zero-Turn Mower

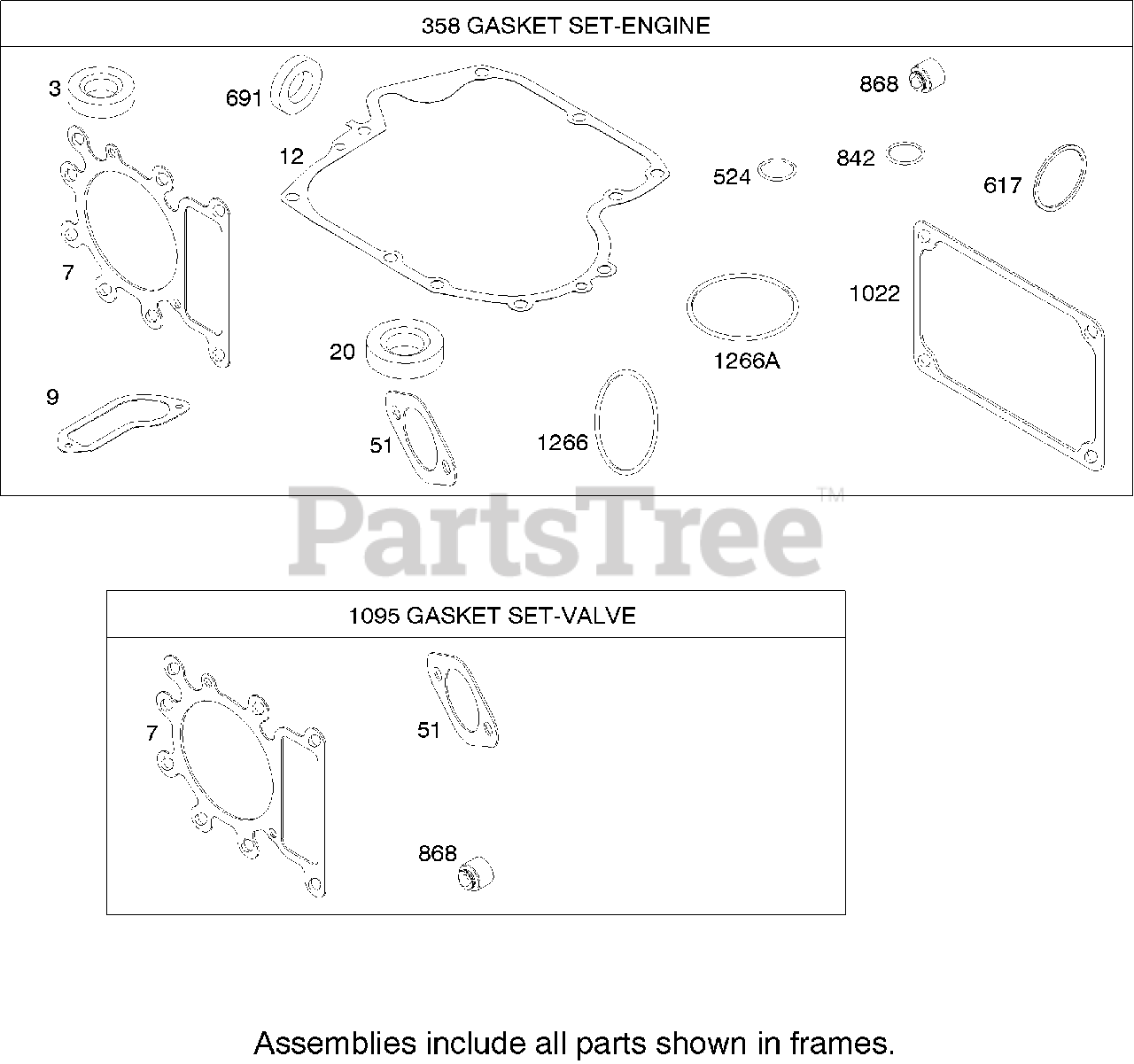

GASKET ASSEMBLY BRIGGS AND STRATTON 280H07-0166-E1 Parts Diagram

  • Title

3

Lawn-Boy 391086

Seal-Oil

Note: Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

7

Lawn-Boy 273280

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

9

Lawn-Boy 697109

Gasket-Breather

Note: Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

12

Lawn-Boy 697110

Gasket-Crankcase

Note: Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

20

Lawn-Boy 690947

Seal-Oil

Note: Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

51

Lawn-Boy 692137

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977. Included in Carburetor Overhaul Kit-Ref. 121. Included in Engine Gasket Set-Ref. 358. Included in Valve Gasket Set-Ref. 1095. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

358

Lawn-Boy 697151

Engine Gasket Set

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

617

Lawn-Boy 692138

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121. Included in Engine Gasket Set-Ref. 358. Included in Valve Gasket Set-Ref. 1095. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

524

Lawn-Boy 691032

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

691

Lawn-Boy 692407

Seal-Shaft, Governor

Note: Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

842

Lawn-Boy 691031

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

868

Lawn-Boy 690968

Seal-Valve

Note: Included in Engine Gasket Set-Ref. 358. Included in Valve Gasket Set-Ref. 1095. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1022

Lawn-Boy 272475

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1095

Lawn-Boy 691581

Valve Gasket Set

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1266

Lawn-Boy 691917

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121. Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1266A

Lawn-Boy 697123

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121. Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
