81230 (Z 320 H) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) CARBURETOR ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

Precision Zero-Turn Mower

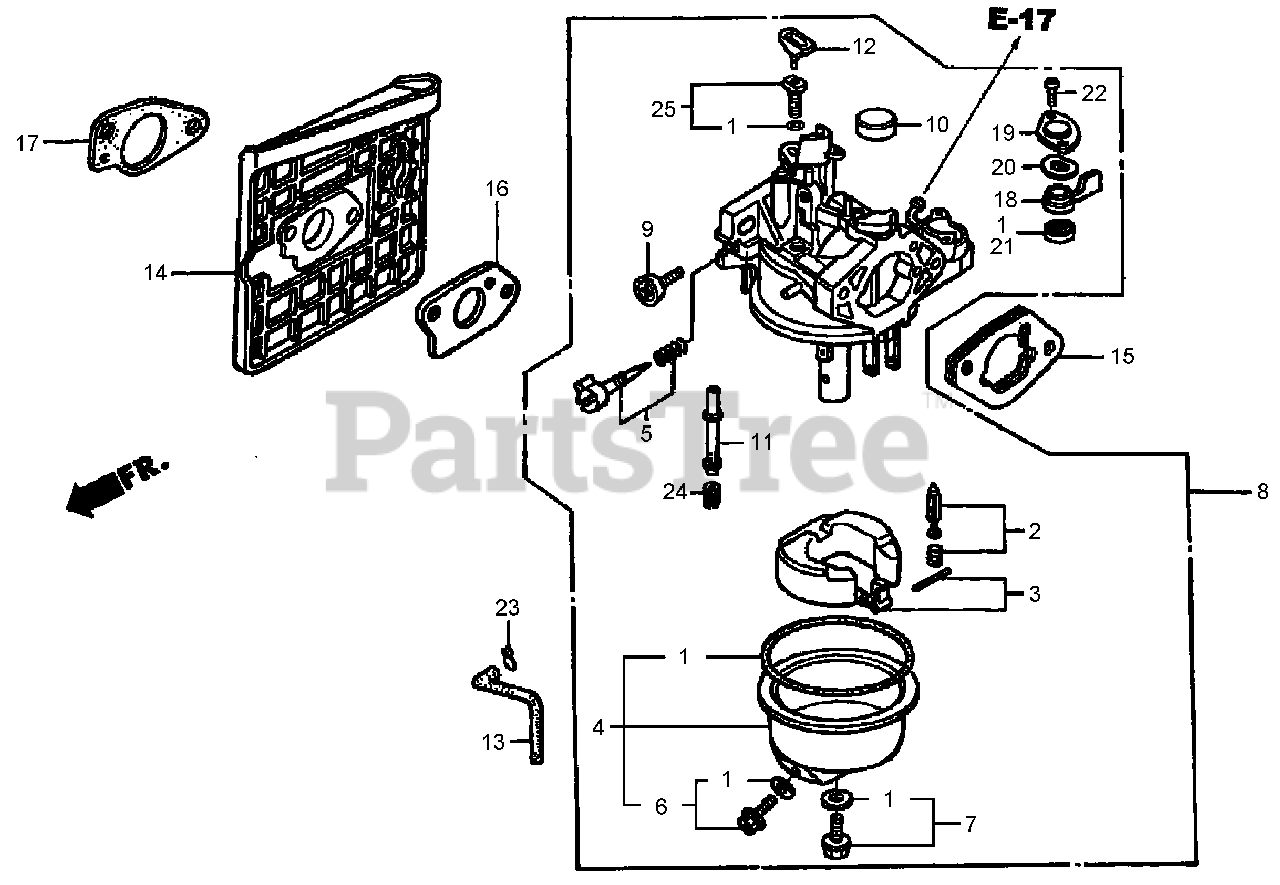

CARBURETOR ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

  • Title
1

Lawn-Boy 16010-ZE2-015

GASKET SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 16011-ZA0-931

VALVE SET-FLOAT

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 16013-Z1C-003

FLOAT SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 16015-ZE8-005

CHAMBER SET-FLOAT

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 16016-ZH7-W01

PILOT SCREW SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 16024-ZE1-811

DRAIN SCREW SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 16028-ZE0-005

SCREW SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 16100-Z1E-V21

CARBURETOR ASM (BE86P A)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 16124-ZE0-005

SCREW- STOP, THROTTLE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 16148-141-881

CAP-DUST, CHOKE LEVER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 16166-ZF5-V20

NOZZLE-MAIN

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 16172-ZE3-W10

COLLAR-SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 16199-ZE8-000

TUBE-VENT, AIR (75MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 16211-Z1E-000

INSULATOR-CARBURETOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

15

Lawn-Boy 16220-ZA0-702

SPACER-CARBURETOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

16

Lawn-Boy 16221-ZF6-800

GASKET-CARBURETOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

17

Lawn-Boy 16223-ZE9-800

GASKET-INSULATOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

18

Lawn-Boy 16953-ZE1-712

LEVER-VALVE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

19

Lawn-Boy 16954-ZE1-812

PLATE-SETTING, LEVER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

20

Lawn-Boy 16956-ZE1-811

SPRING-LEVER, PETCOCK

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

21

Lawn-Boy 16957-ZE1-812

GASKET-PETCOCK

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

22

Lawn-Boy 93500-03006-0H

SCREW-PAN (3X6)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

23

Lawn-Boy 95002-02080

CLIP-TUBE (B8)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

24

Lawn-Boy 99101-ZH8-0880

JET-MAIN (No. 88)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

24

Lawn-Boy 99101-ZH8-0900

JET-MAIN (No. 90)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

24

Lawn-Boy 99101-ZH8-0920

JET-MAIN (No. 92)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

25

Lawn-Boy 99204-ZE2-0400

JET SET-PILOT (No. 40)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
