81230 (Z 320 H) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) LH HYDROSTAT ASSEMBLY PART NO. 108-2394 Parts Diagram

Precision Zero-Turn Mower

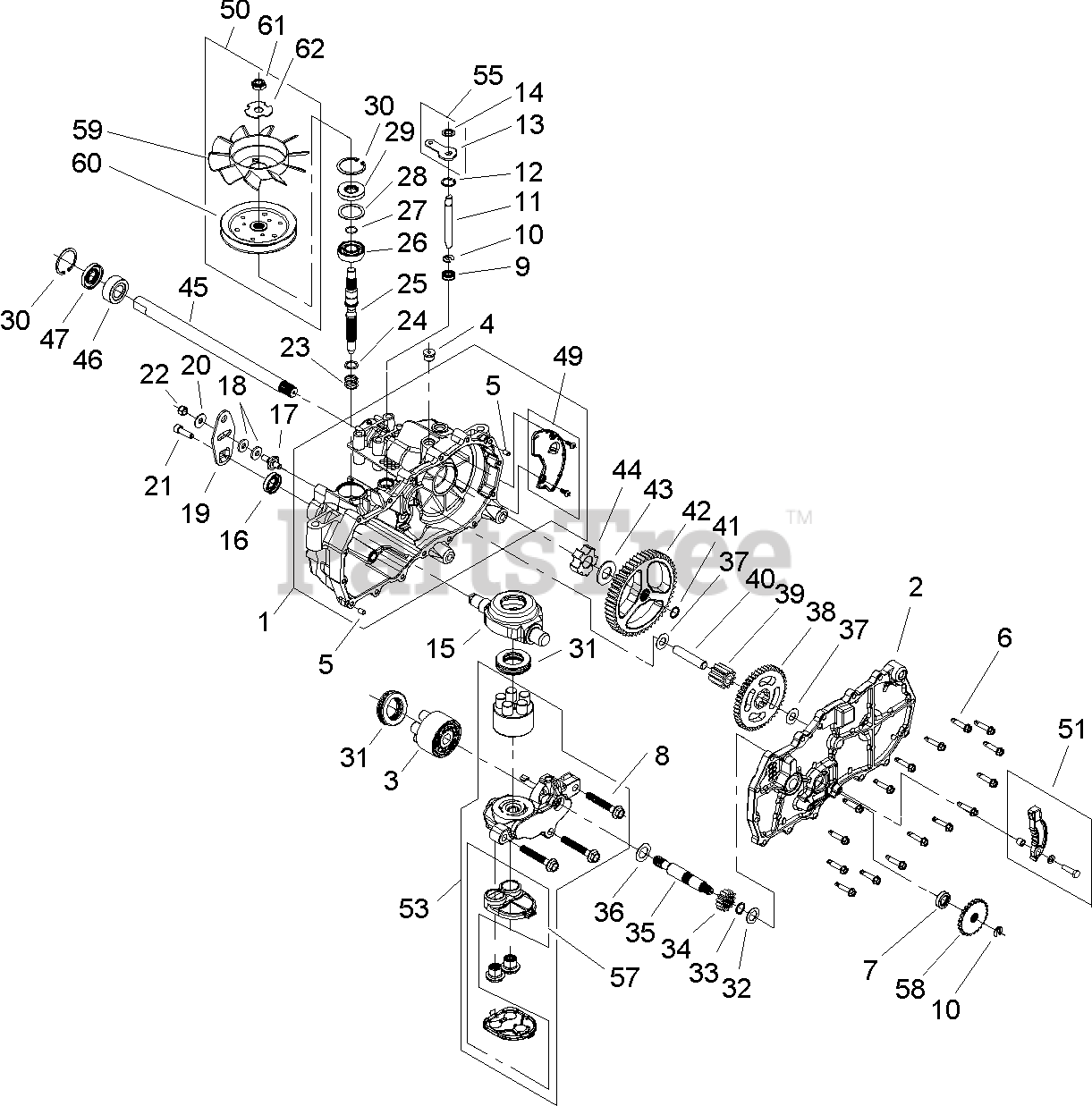

LH HYDROSTAT ASSEMBLY PART NO. 108-2394 Parts Diagram

  • Title

1

Lawn-Boy 106-8695

RH Main Housing ASM

$939.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 106-8696

RH Side ASM

$658.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 103-2666

CYLINDER BLOCK KIT

$488.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 104-2189

PLUG-THREAD, STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 104-2170

PIN

$8.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 104-5305

SCREW-HHF

$7.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 104-5347

SEAL-OIL

$20.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 94-6926

BOLT

$9.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 106-8676

SEAL-LIP
(Superseded to 139-7497)

$6.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 106-8677

RING-RETAINING, EXT

$8.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 106-8678

ROD-BYPASS

$54.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 106-8679

RING-RETAINING, INT

$9.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 107-2490

ARM-BYPASS

$56.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 106-8681

RING-RETAINING, EXT

$8.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 104-5304

SWASHPLATE-TRUNNION

$193.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 104-5313

SEAL-LIP

$23.99

$

In Stock, Qty 6

0

17

Lawn-Boy 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 105-1873

PUCK-FRICTION

$8.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 106-8747

ARM-CONTROL

$36.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 107-2488

SCREW

$13.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 105-1872

NUT

$13.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 94-1937

WASHER-BLOCK, THRUST

$6.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 104-5306

SHAFT-INPUT

$367.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 104-5311

BEARING-BALL

$43.99

$

In Stock, Qty 5

0

27

Lawn-Boy 104-5307

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 104-5310

SEAL-LIP

$34.99

$

In Stock, Qty 6

0

30

Lawn-Boy 104-5309

RING-RETAINING

$13.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 94-6922

BEARING-THRUST

$61.99

$

In Stock, only 3 left!

0

32

Lawn-Boy 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 104-5316

GEAR-PINNION, 13T

$31.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 106-8683

SHAFT-MOTOR

$283.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 104-5360

WASHER-SHAFT, MOTOR

$7.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 104-5317

GEAR

$188.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 104-5318

GEAR-JACKSHAFT, 10T

$85.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 104-5329

PIN-JACKSHAFT

$111.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 104-5328

RING-RETAINING, SPIRAL

$11.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 106-8684

GEAR-BULL, 52T

$

$

Not available

43

Lawn-Boy 94-1943

WASHER

$5.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 104-5320

BEARING-SLEEVE

$34.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 106-8685

AXLE
(Superseded to 115-5039)

$533.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 104-5321

BEARING-SLEEVE, OUTBOARD

$35.99

$

In Stock, only 1 left!

0

47

Lawn-Boy 104-5322

SEAL-LIP

$32.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 106-8686

SEAL KIT

Note: Not illustrated

$181.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 106-8697

RH Expansion Plate Kit

$69.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 106-8698

Fan Pulley Kit

$130.99

$

Usually ships in 3-6 days

0

51

Lawn-Boy 106-8688

BRAKE ARM KIT

$37.99

$

In Stock, Qty 14

0

53

Lawn-Boy 108-6190

RH 7-PISTON CENTER SECTION KIT

$

$

Not available

54

Lawn-Boy 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 107-2489

BYPASS ARM KIT

$80.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 106-8693

FILTER KIT

$140.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 106-8694

DISC-BRAKE, COG

$59.99

$

In Stock, only 3 left!

0

59

Lawn-Boy 110-8566

FAN-6 INCH, 10 BLADE

$75.99

$

In Stock, only 1 left!

0

60

Lawn-Boy 104-1754

PULLEY

$74.99

$

In Stock, only 1 left!

0

61

Lawn-Boy 105-1875

NUT-LOCK

$7.99

$

In Stock, only 1 left!

0

62

Lawn-Boy 107-9122

WASHER-SLOTTED
(Superseded to 116-9708)

$5.49

$

In Stock, only 3 left!

0
