81231 - Toro Frame Weight (1973) PARTS LIST FOR 5-0610 & 5-0701 ROTARY MOWERS Parts Diagram

Frame Weight

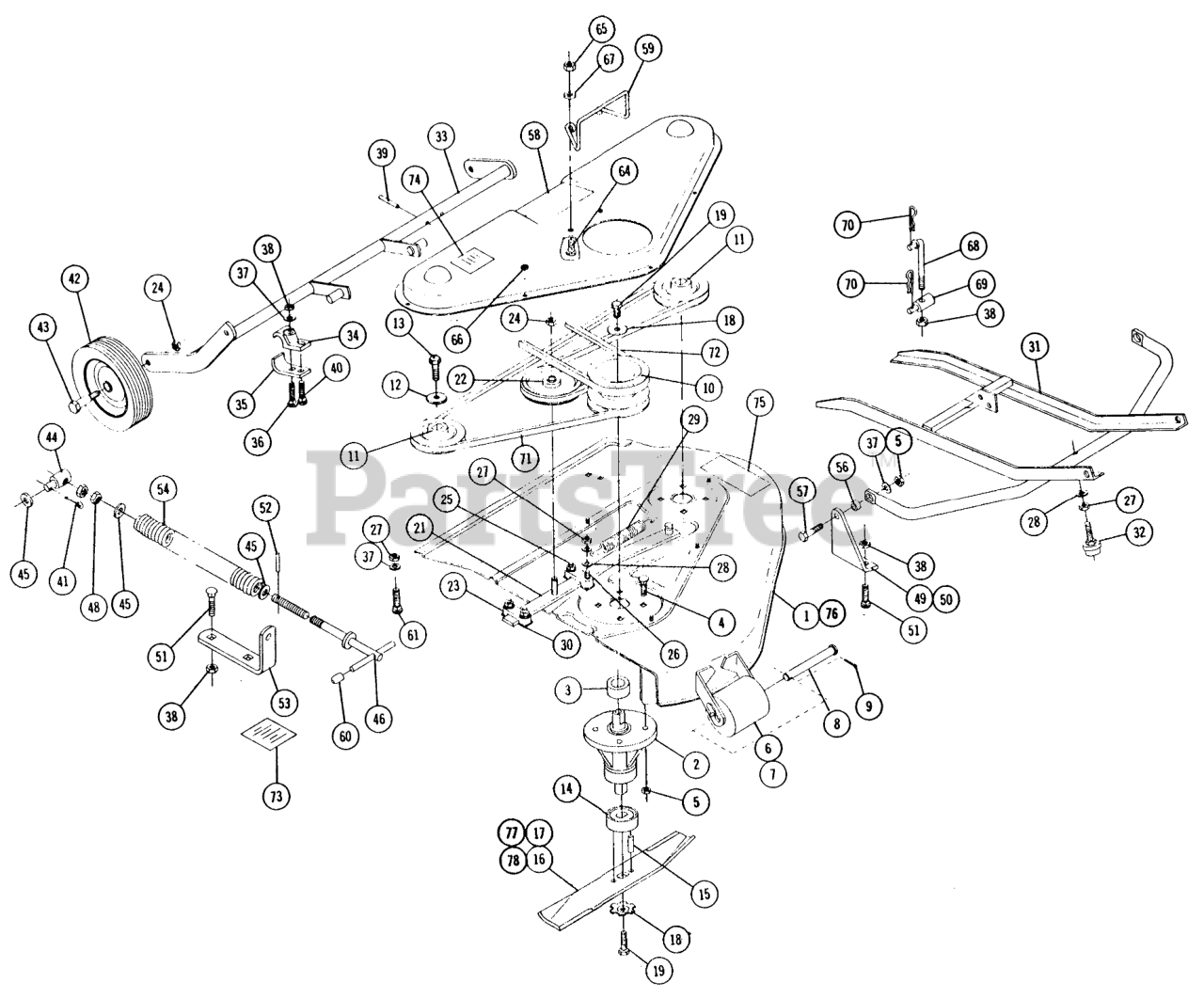

PARTS LIST FOR 5-0610 & 5-0701 ROTARY MOWERS Parts Diagram

  • Title

1

Toro 100471

Deck-Mower (Model 5-0610)

$

$

Currently unavailable

2

Toro 100675

Assy.-Sealed Spindle Bearing
(Superseded to 101525)

$

$

Not available

3

Toro 100674

SPACER-PULLEY

$

$

Not available

4

Toro 900234-4

Bolt Carriage 3/8-16 x 1

$

$

Currently unavailable

5

Toro 915113-6

Nut

$

$

Currently unavailable

6

Toro 5240

Roller
(Superseded to 94-1599)

$14.99

$

In Stock, Qty 15

0

7

Toro 1970

Bearing-Nylon

$

$

Not available

8

Toro 101881

CLEVIS PIN

$18.99

$

Usually ships in 3-6 days

0

9

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

10

Toro 101232

Pulley-Middle Drive
(Superseded to 99-5357)

$

$

Not available

11

Toro 101231

Pulley-End
(Superseded to 105781)

$71.99

$

In Stock, only 2 left!

0

12

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

13

Toro 908032-6

Bolt 3/8-16 x 3/4 Hex

$

$

Currently unavailable

14

Toro 8200

Cup-Spindle
(Superseded to 3716)

$

$

Not available

15

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

16

Toro 8393

Blade 14"
(Superseded to 9819)

Note: Order Part No. 9819 (3-Blade Kit)

$

$

Not available

17

Toro 8394

Blade 12"
(Superseded to 9819)

Note: Order Part No. 9819 (3-Blade Kit)

$

$

Not available

18

Toro 1336

WASHER

$

$

Not available

19

Toro 908033-6

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

21

Toro 8690

Bar Idler Support

$

$

Currently unavailable

22

Toro 7434

Idler Pulley
(Superseded to 112426)

$27.99

$

In Stock, only 2 left!

0

23

Toro 6720

Side Block
(Superseded to 742659)

$

$

Not available

24

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

25

Toro 900039-4

Bolt-5/16-18 x 1/4

$

$

Currently unavailable

26

Toro 900040-4

Bolt-5/16-18 x 1 1/2

$

$

Currently unavailable

27

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

28

Toro 920008-4

Washer

$

$

Currently unavailable

29

Toro 6651

SPRING R

$25.99

$

In Stock, only 2 left!

0

30

Toro 6748

SLIDE

$

$

Not available

31

Toro 100618

Mower Lift

$

$

Not available

32

Toro 100087

LEVELER MOWER

$

$

Not available

33

Toro 100476

Height Control Bracket

$

$

Currently unavailable

34

Toro 8406

Support

$

$

Not available

35

Toro 8407

Clip

$

$

Not available

36

Toro 900067-4

Bolt Carriage 3/8-16 x 2

$

$

Currently unavailable

37

Toro 920009-4

Washer

$

$

Currently unavailable

38

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

39

Toro 933188

Roll Pin
(Superseded to 32121-93)

$

$

Not available

40

Toro 900064-4

Bolt Carriage 3/8-16 x 1

$

$

Currently unavailable

41

Toro 932009-4

Hairpin

$

$

Currently unavailable

42

Toro 4480

Wheel
(Superseded to 110506)

$39.99

$

In Stock, Qty 16

0

43

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 20+

0

44

Toro 8870

ROD-TRUNNION LIFT

$

$

Not available

45

Toro 920011-4

Washer

$

$

Currently unavailable

46

Toro 100474

Crank

$

$

Currently unavailable

48

Toro 91538-4

Nut Jam 1/2-13

$

$

Currently unavailable

49

Toro 8409

Bracket L.H.

$

$

Currently unavailable

50

Toro 8408

Bracket R.H.

$

$

Currently unavailable

51

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

52

Toro 933184

PIN-SPIROL

$1.99

$

In Stock, Qty 8

0

53

Toro 100477

Bracket

$

$

Currently unavailable

54

Toro 100478

Spring

$

$

Currently unavailable

56

Toro 2138

SPACER

$

$

Not available

57

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

58

Toro 7932

Cover
(Superseded to 104987)

$

$

Not available

59

Toro 100411

BELT GUIDE

$

$

Not available

61

Toro 900036-4

Bolt 5/16-18 x 5/8 Carriage

$

$

Currently unavailable

64

Toro 910837-4

Screw 1/4-20 x 5/8

$

$

Currently unavailable

65

Toro 915661-4

Nut, 1/4-20

$

$

Currently unavailable

66

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

67

Toro 920007-4

Washer

$

$

Currently unavailable

68

Toro 9200

Link-Lift

$

$

Currently unavailable

69

Toro 9808

Trunnion

$

$

Not available

70

Toro 933504-4

Hairpin

$

$

Currently unavailable

71

Toro 8411

V-BELT

$26.99

$

In Stock, Qty 6

0

72

Toro 8412

BELT DRIVE

$

$

Not available

73

Toro 100479

Decal-Height Adjustment

$

$

Currently unavailable

74

Toro 8413

Decal-Belt Installation

$

$

Not available

75

Toro 4570

Decal
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 11

0

76

Toro 100484

Deck-Mower (Model 5-0701)

$

$

Currently unavailable

77

Toro 100460

Blade 14"-Center (Model 5-0701)
(Superseded to 101093)

Note: Order Part No. 101093 (3-Blade Kit)

$

$

Not available

78

Toro 100459

Blade 12" (Model 5-0701)
(Superseded to 101093)

Note: Order Part No. 101093 (3-Blade Kit)

$

$

Not available
