81245 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) REGULATOR RECTIFIER AND SUB-WIRE HARNESS ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

Precision Zero-Turn Mower

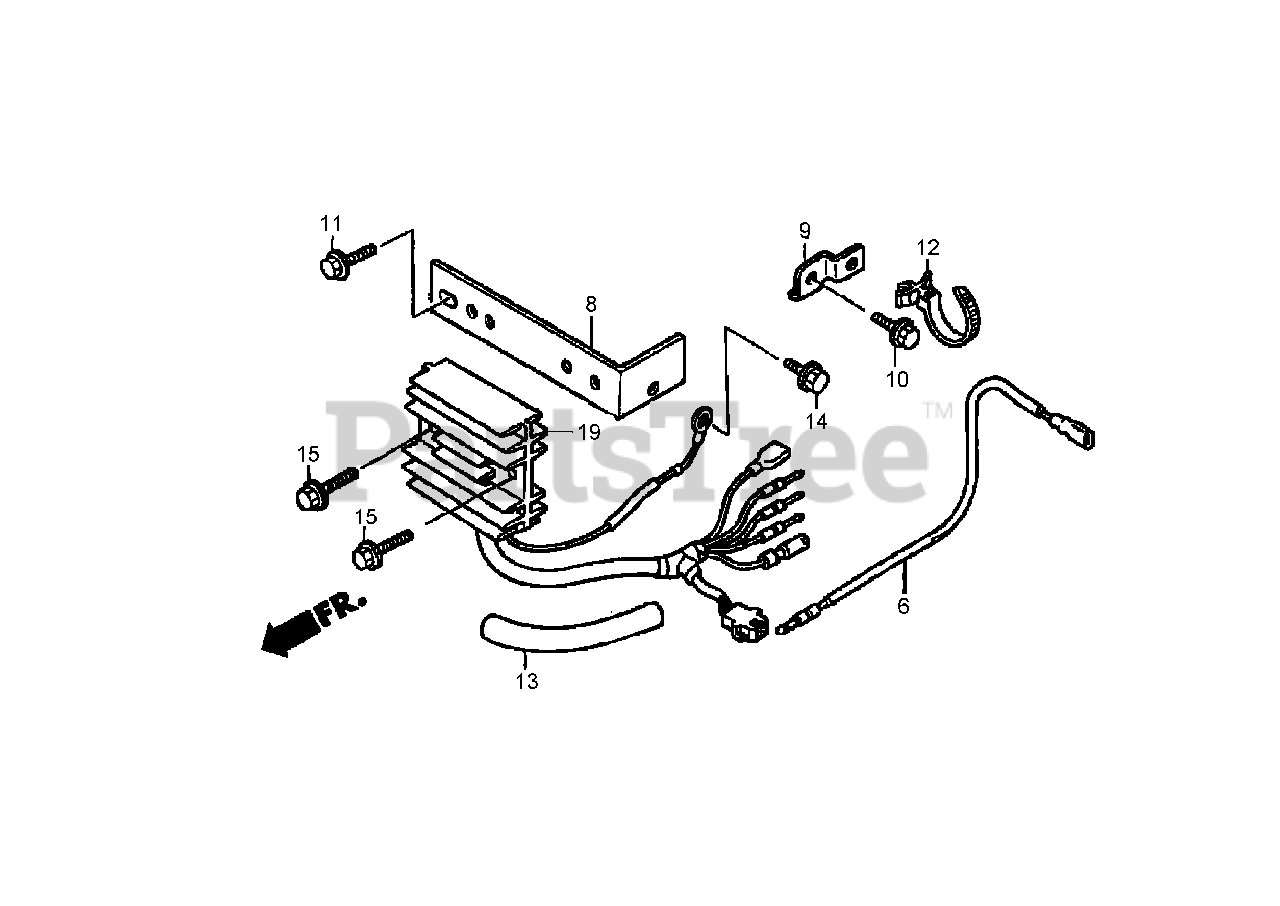

REGULATOR RECTIFIER AND SUB-WIRE HARNESS ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

  • Title
6

Lawn-Boy 32105-Z0A-000

SUB-WIRE HARNESS ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 31758-Z0A-800

BRACKET-REGULATOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 35806-752-630

BASE-CLIP

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 90672-SB2-003

STRAP-CABLE (105MM) (N H1 BLACK)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 91406-ZB3-740

TUBE-WIRE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 95701-06008-00

BOLT-FLANGE (6X8)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

15

Lawn-Boy 95701-06020-00

BOLT-FLANGE (6X20)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

19

Lawn-Boy 31750-Z0A-V01

REGULATOR RECTIFIER ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
