81245 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) CAMSHAFT ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

Precision Zero-Turn Mower

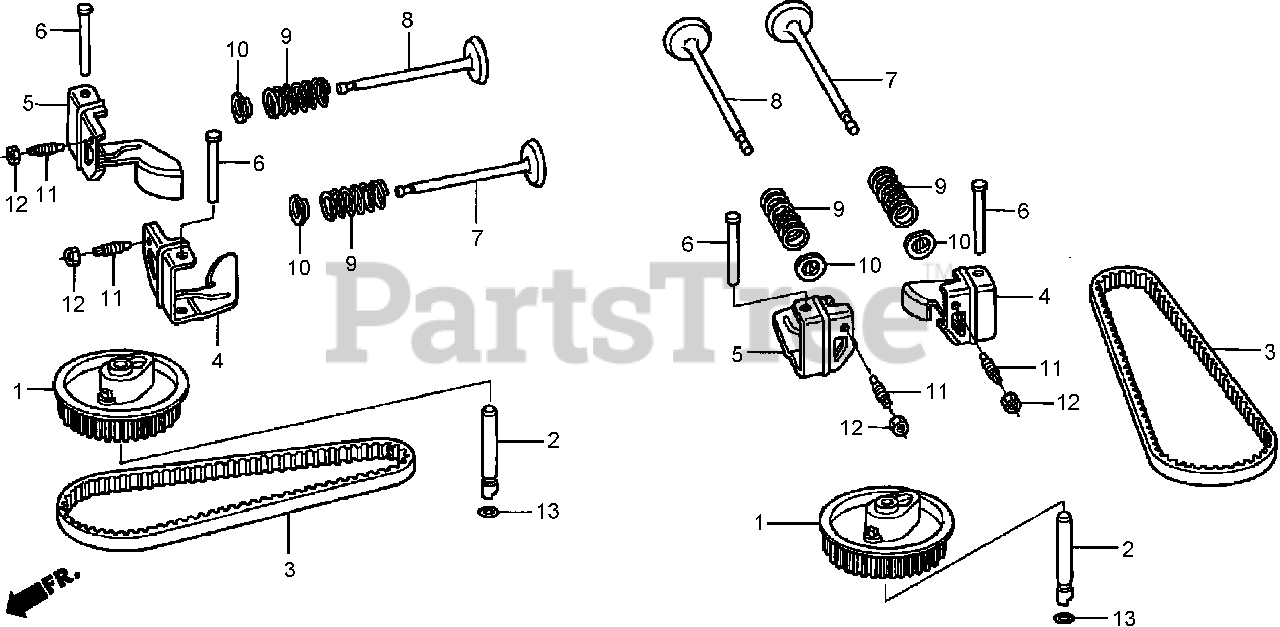

CAMSHAFT ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

  • Title
1

Lawn-Boy 14320-Z0A-000

PULLEY-CAMSHAFT

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 14324-ZL8-000

SHAFT-PULLEY, CAM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 14400-Z0A-003

BELT-TIMING (97HU8 G-200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 14431-Z0A-000

ARM-VALVE ROCKER, INTAKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 14441-Z0A-000

ARM-VALVE ROCKER, EXHAUST

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 14461-Z0A-000

SHAFT-ARM, ROCKER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 14711-Z0A-000

VALVE-INTAKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 14721-Z0A-000

VALVE-EXHAUST

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 14751-ZE1-000

Spring-Valve

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 14771-ZE1-000

RETAINER-SPRING, VALVE (INTAKE)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 90012-333-000

SCREW-ADJUSTING, TAPPET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 90206-001-000

NUT-ADJUSTING, TAPPET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 91301-ZM0-V31

O-RING (6.8X19) (ARAI)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
