81246 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) STARTER MOTOR ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

Precision Zero-Turn Mower

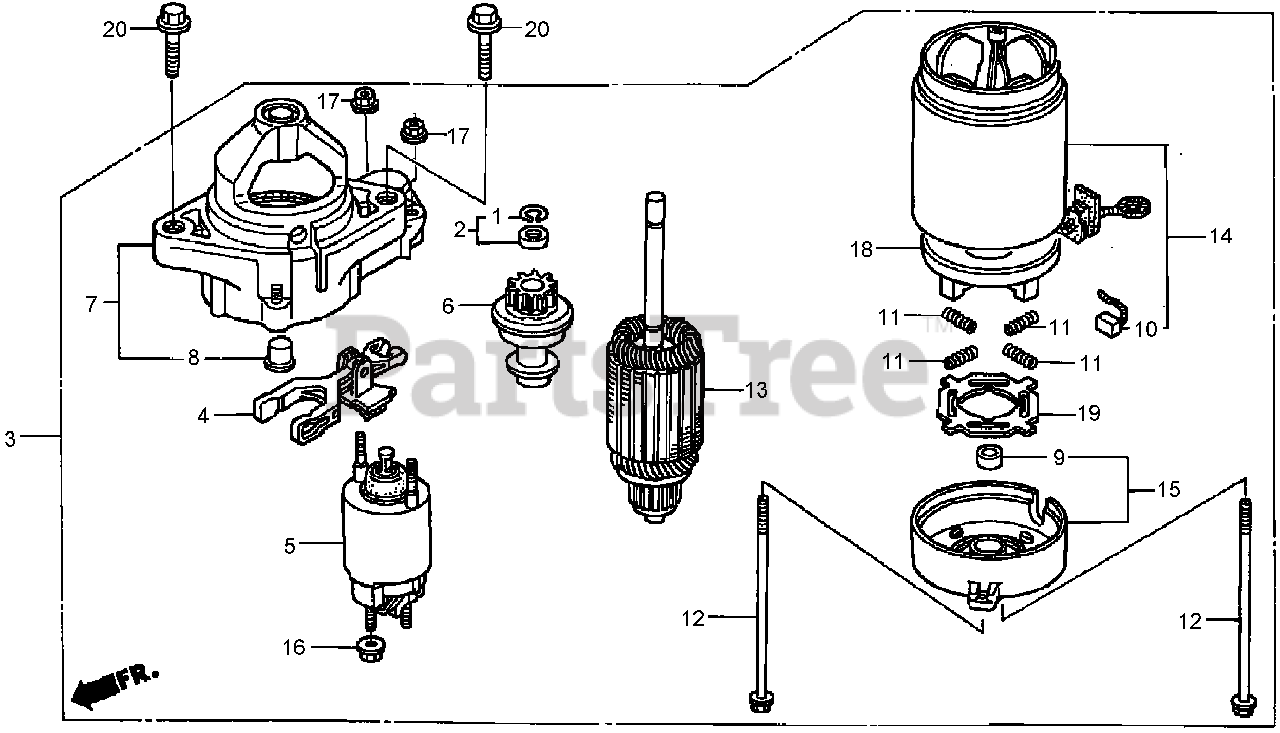

STARTER MOTOR ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

  • Title
1

Lawn-Boy 30201-PH9-004

RING-SNAP (DENSO)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 30202-PZ1-003

CLUTCH STOP COLLAR SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 31200-Z0A-003

STARTER MOTOR ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 31203-PH9-004

LEVER-DRIVE, PINION

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 31204-ZG4-801

MAGNETIC SWITCH ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 31207-Z0A-003

CLUTCH-OVERRUNNING

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 31208-Z0A-003

HOUSING-DRIVE SIDE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 31209-PH9-004

BEARING (A)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 31210-PH9-004

BEARING (B)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 31211-PH9-004

BRUSH

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 31212-PH9-004

SPRING-BRUSH

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 31214-PH9-004

BOLT-THROUGH

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 31217-Z0A-003

ARMATURE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 31218-P64-N01

YOKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

15

Lawn-Boy 31219-Z0A-003

FRAME-END, COMMUTATOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

16

Lawn-Boy 31220-PH9-004

NUT-HEX (8MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

17

Lawn-Boy 31223-PA0-006

NUT-FLANGE (5MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

18

Lawn-Boy 31231-PH9-004

HOLDER-BRUSH

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

19

Lawn-Boy 31233-PH9-004

INSULATOR-HOLDER, BRUSH

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

20

Lawn-Boy 95701-10040-00

BOLT-FLANGE (10X40)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
