81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 270000001 - 270999999) (2007) 42 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

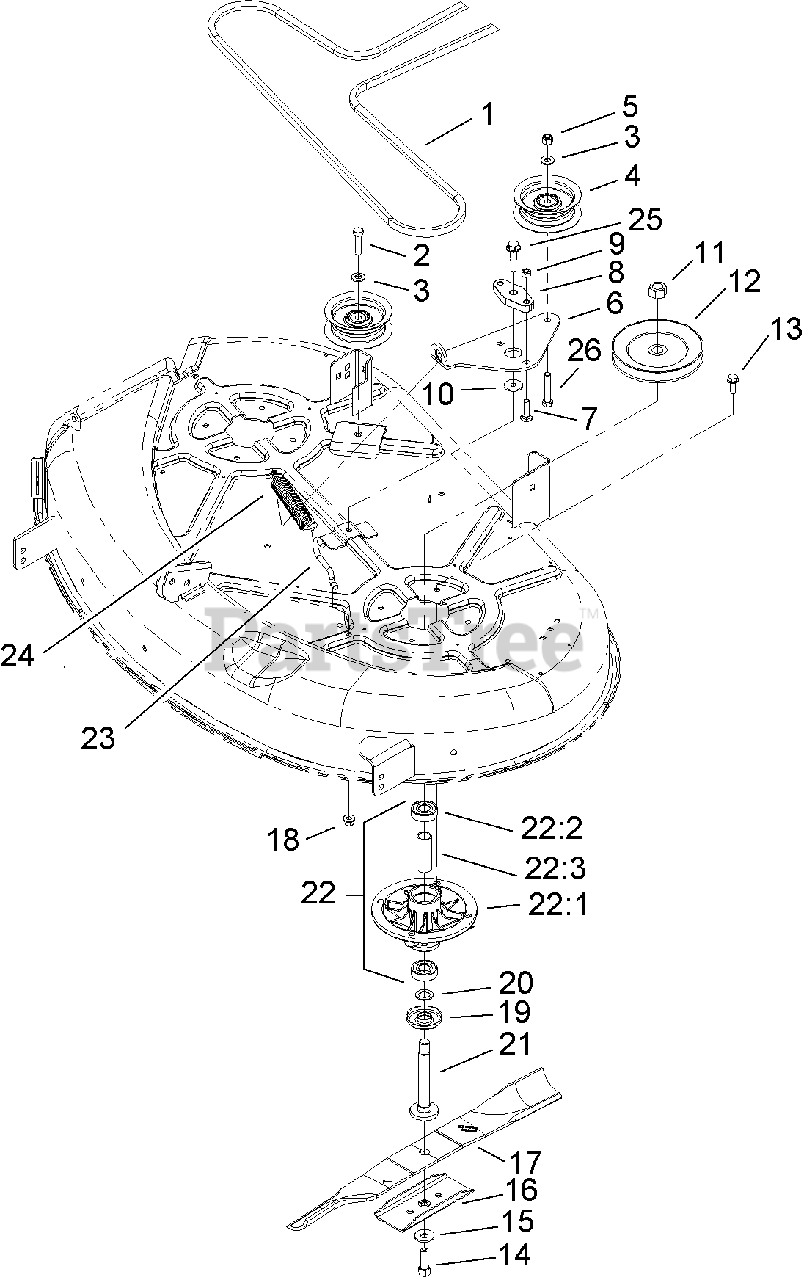

42 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 110-6871

V-BELT

$77.99

$

In Stock, Qty 11

0

2

Lawn-Boy 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 110-6867-03

ARM-IDLER
(Superseded to 115-2499)

$50.99

$

In Stock, Qty 7

0

7

Lawn-Boy 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 108-7881

BUSHING-PIVOT
(Superseded to 115-2499)

$50.99

$

In Stock, Qty 7

0

9

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 110-6864

PULLEY
(Superseded to 139-2433)

$38.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 26-0671

SCREW-BLADE

$9.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 106-2248-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 110-6568-03

BLADE-21.6 INCH

$29.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 80-4380

SPACER

$6.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 110-6866

SHAFT-SPINDLE
(Superseded to 117-1192)

$42.99

$

In Stock, Qty 17

0

22

Spindle ASM

Note: Not serviced separately

$

$

Not available

22:1

Lawn-Boy 88-4510

HOUSING-SPINDLE

$91.99

$

In Stock, Qty 20+

0

22:2

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

22:3

Lawn-Boy 62-3661

SPACER-BEARING

$15.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 110-6897

BOLT-SHOULDER
(Superseded to 115-2499)

$50.99

$

In Stock, Qty 7

0

26

Lawn-Boy 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
