81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 270000001 - 270999999) (2007) DECK LIFT AND SEAT SUPPORT ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

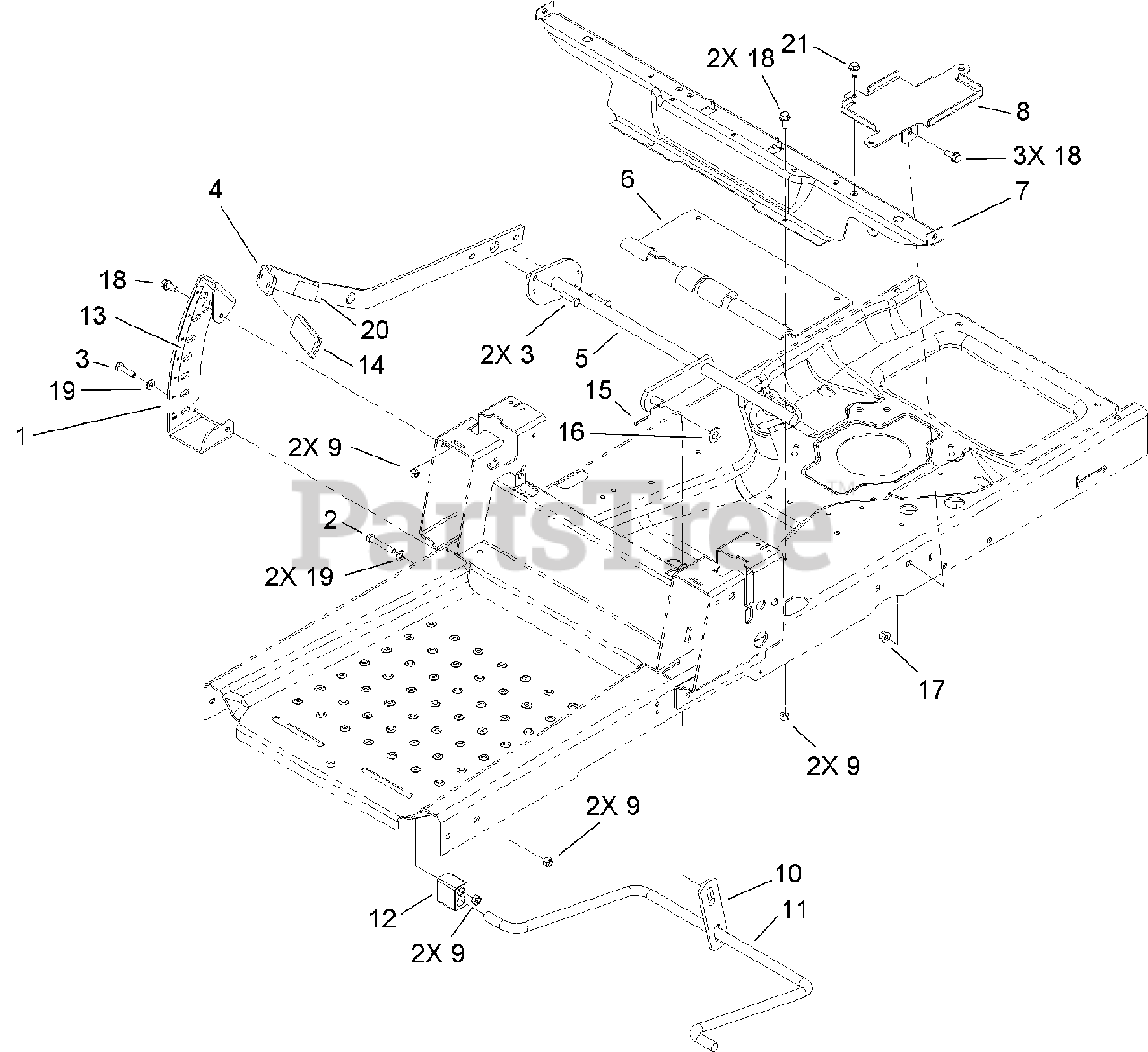

DECK LIFT AND SEAT SUPPORT ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 112-4027-03

SECTOR-HOC

$29.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

3

Lawn-Boy 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 112-3960-03

LIFT ARM ASM

$47.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 108-7841-03

LIFT LEVER ASM

$70.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 110-6800-03

PLATE-LIFT

$

$

Not available

7

Lawn-Boy 110-6805-03

BRACKET-SEAT/PODS

$90.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 110-1937-03

TRAY-BATTERY

$28.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 12

0

11

Lawn-Boy 108-7839

ARM-LIFT, REAR
(Superseded to 138-7234)

$34.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 112-9802

DECAL-HOC

$

$

Not available

14

Lawn-Boy 105-3450

GRIP-LEVER, LIFT

$9.49

$

In Stock, only 3 left!

0

15

Lawn-Boy 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 3256-23

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 106-8743

DECAL

$2.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0
