81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 270000001 - 270999999) (2007) FUEL PUMP ASSEMBLY HONDA GXV530 EXA2-MOD Parts Diagram

Precision Zero-Turn Mower

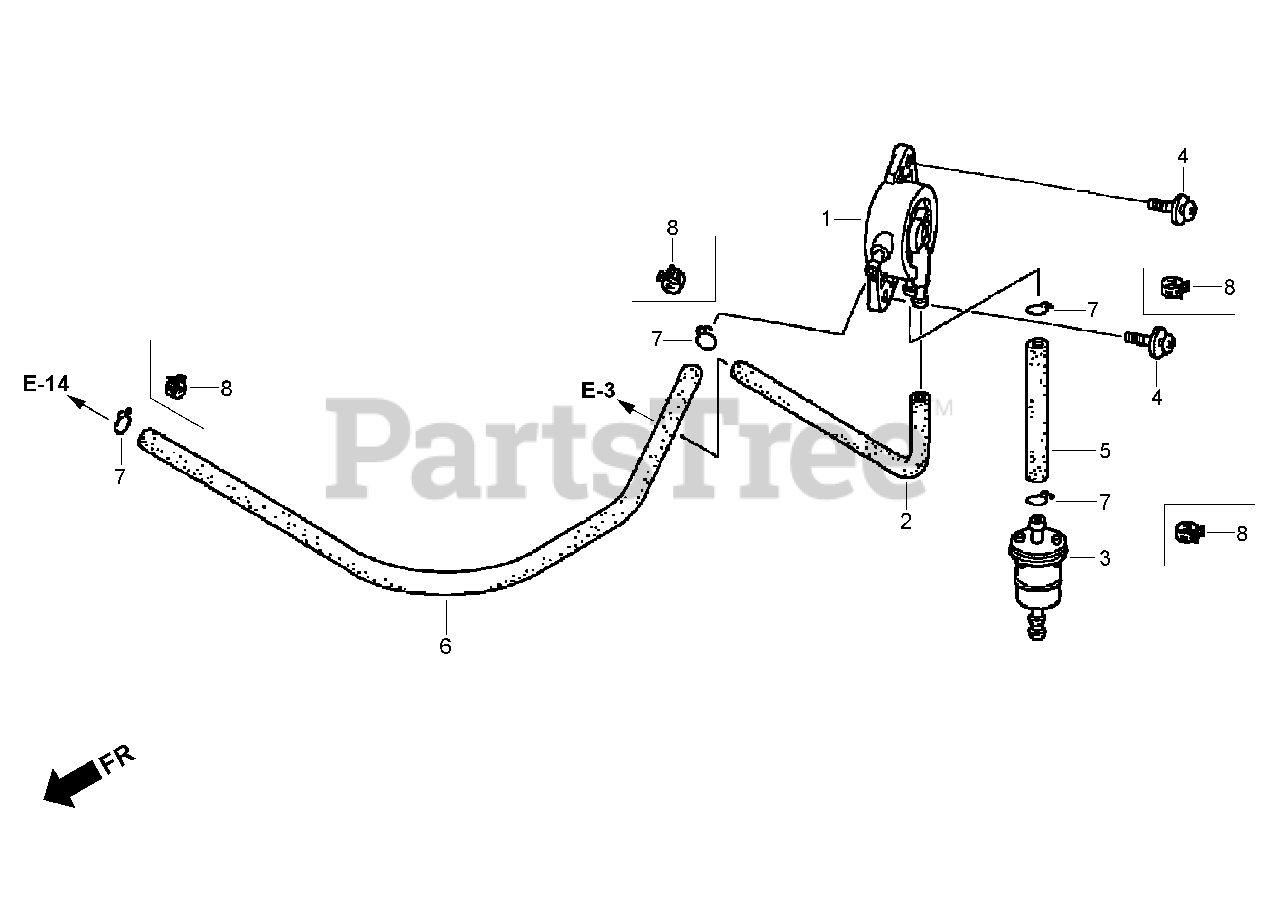

FUEL PUMP ASSEMBLY HONDA GXV530 EXA2-MOD Parts Diagram

  • Title

1

Lawn-Boy 16700-ZL8-013

FUEL PUMP ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

1

Lawn-Boy 16700-Z0J-003

FUEL PUMP ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 16882-Z0A-000

TUBE-DIAPHRAGM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 16910-ZV4-015

FILTER-FUEL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 93894-05016-00

SCREW-WASHER (5X16)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 91425-Z5Y-801

TUBE-FUEL (5.3X100) (FKM) (From Engine Serial No. 1001842)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 95001-55003-60M

HOSE-FUEL, BULK (5.5X3000) (55X100) ( Up To Engine Serial No. 1001841)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 91425-Z5Y-811

TUBE-FUEL (5.3X350) (FKM) (From Engine Serial No. 1001842)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 95001-55003-60M

HOSE-FUEL, BULK (5.5X3000) (5.5X350) ( Up To Engine Serial No. 1001841)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 95002-02100

CLIP-TUBE (B10) ( Up To Engine Serial No. 1001841)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 95002-41000-08

CLAMP-TUBE (D10) (From Engine Serial No. 1001842)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
