81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 270000001 - 270999999) (2007) LABEL ASSEMBLY HONDA GXV530 EXA2-MOD Parts Diagram

Precision Zero-Turn Mower

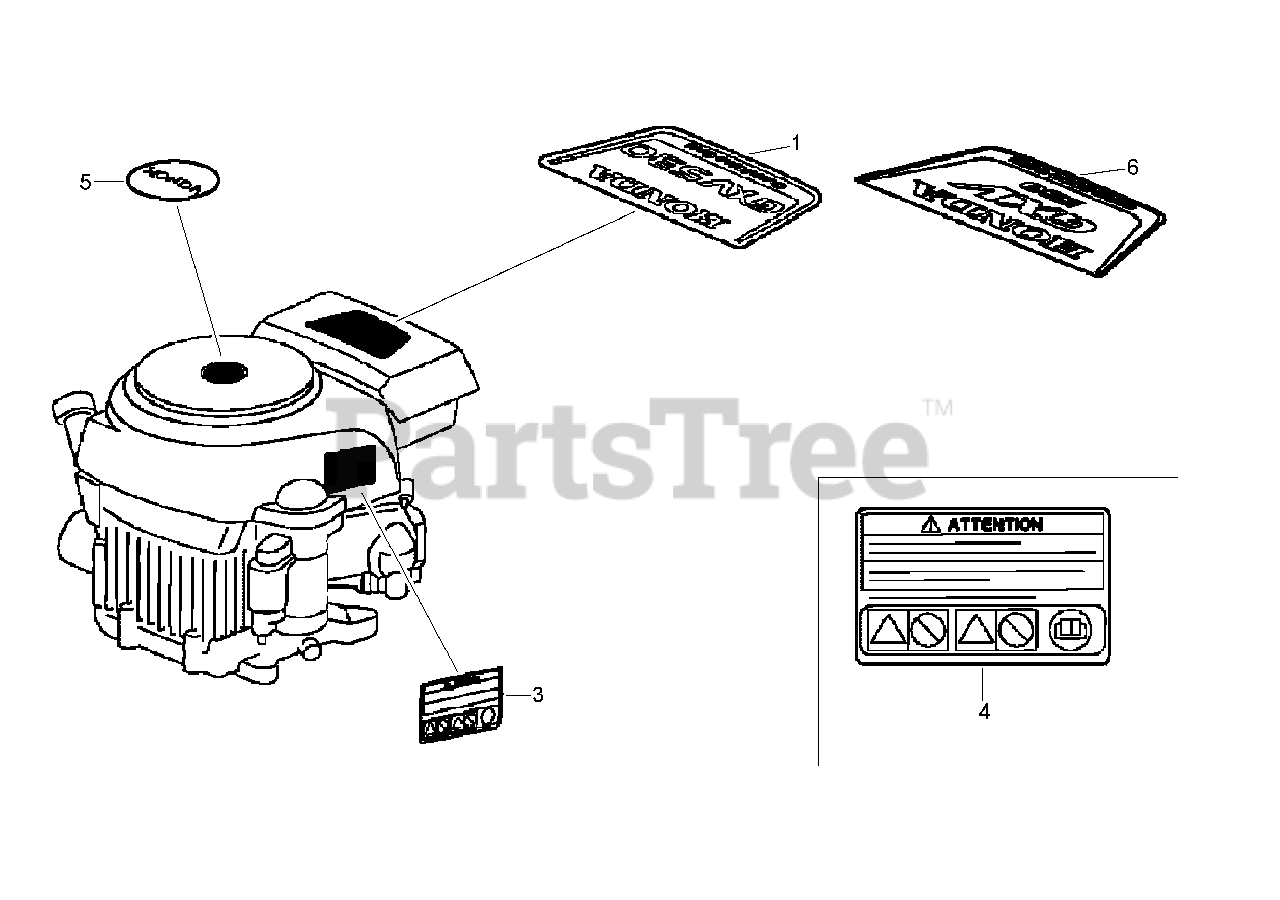

LABEL ASSEMBLY HONDA GXV530 EXA2-MOD Parts Diagram

  • Title

1

Lawn-Boy 87101-Z0P-010

MARK-EMBLEM (GXV530) (Up To Engine Serial No. 1006563)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 87516-ZH7-000

MARK-OPERATOR CAUTION (ENGLISH) (MADE IN JAPAN)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 87516-ZH7-810

MARK-OPERATOR CAUTION (PICTOGRAPH) (MADE IN JAPAN)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 87516-ZH7-800

MARK-OPERATOR CAUTION (FRENCH) (MADE IN JAPAN)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 87531-Z0A-010

MARK-HONDA

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 87101-Z0P-020

MARK-EMBLEM (GXV530) (From Engine Serial No. 1006564)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
