81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 270000001 - 270999999) (2007) SEAT ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

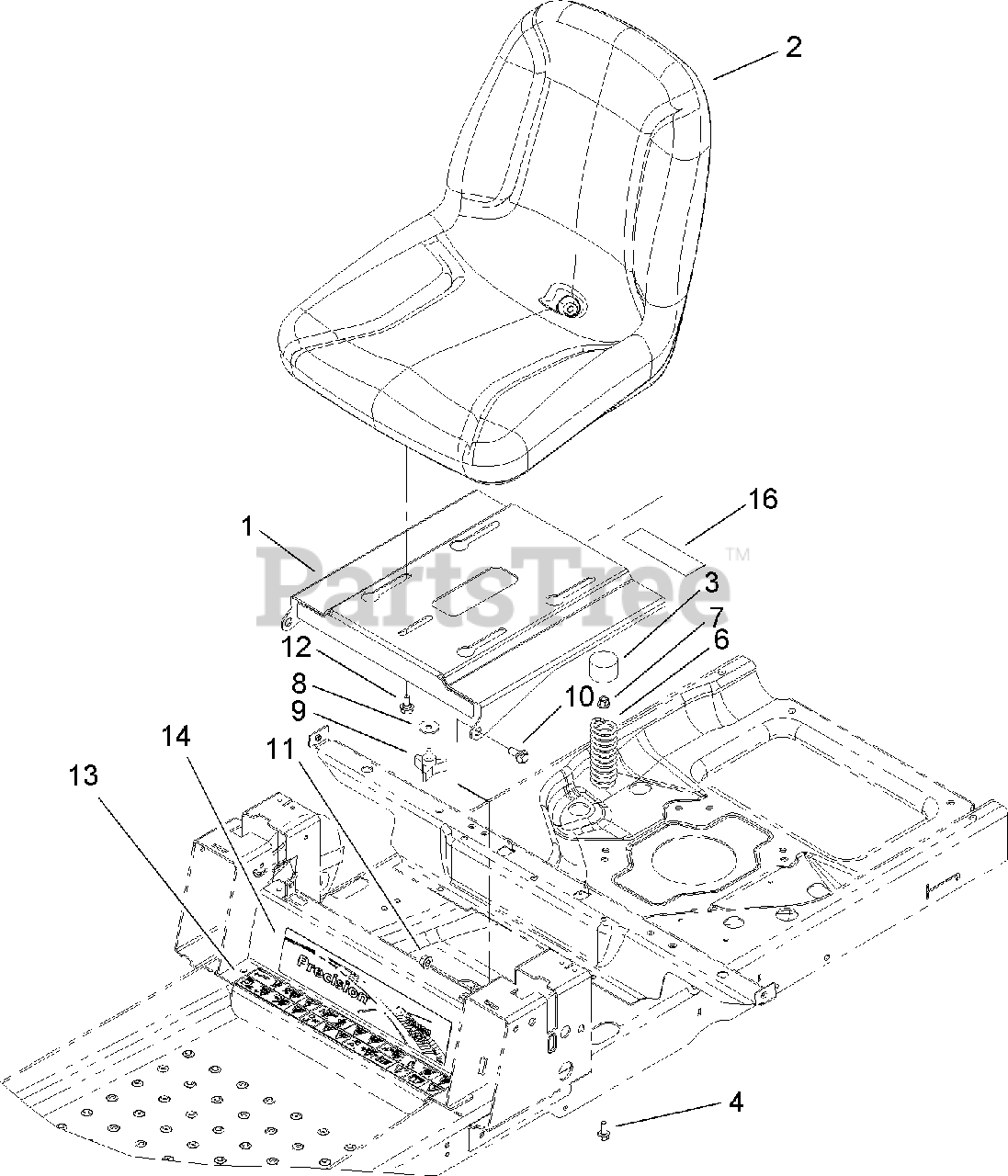

SEAT ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 110-6679-03

BASE-SEAT
(Superseded to 115-2465-03)

$121.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 110-6773

SEAT-18 INCH

$

$

Not available

3

Lawn-Boy 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 11

0

4

Lawn-Boy 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 19

0

7

Lawn-Boy 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-9674

KNOB

$14.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 94-7582

BOLT-SHOULDER

$3.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 2 left!

0

13

Lawn-Boy 110-6825

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 114-8503

DECAL

$

$

Not available

16

Lawn-Boy 106-8717

DECAL-SERVICE

$7.99

$

Usually ships in 3-6 days

0
