81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000301 - 280999999) (2008) CRANKCASE ASSEMBLY HONDA GXV530 EXA2-MOD Parts Diagram

Precision Zero-Turn Mower

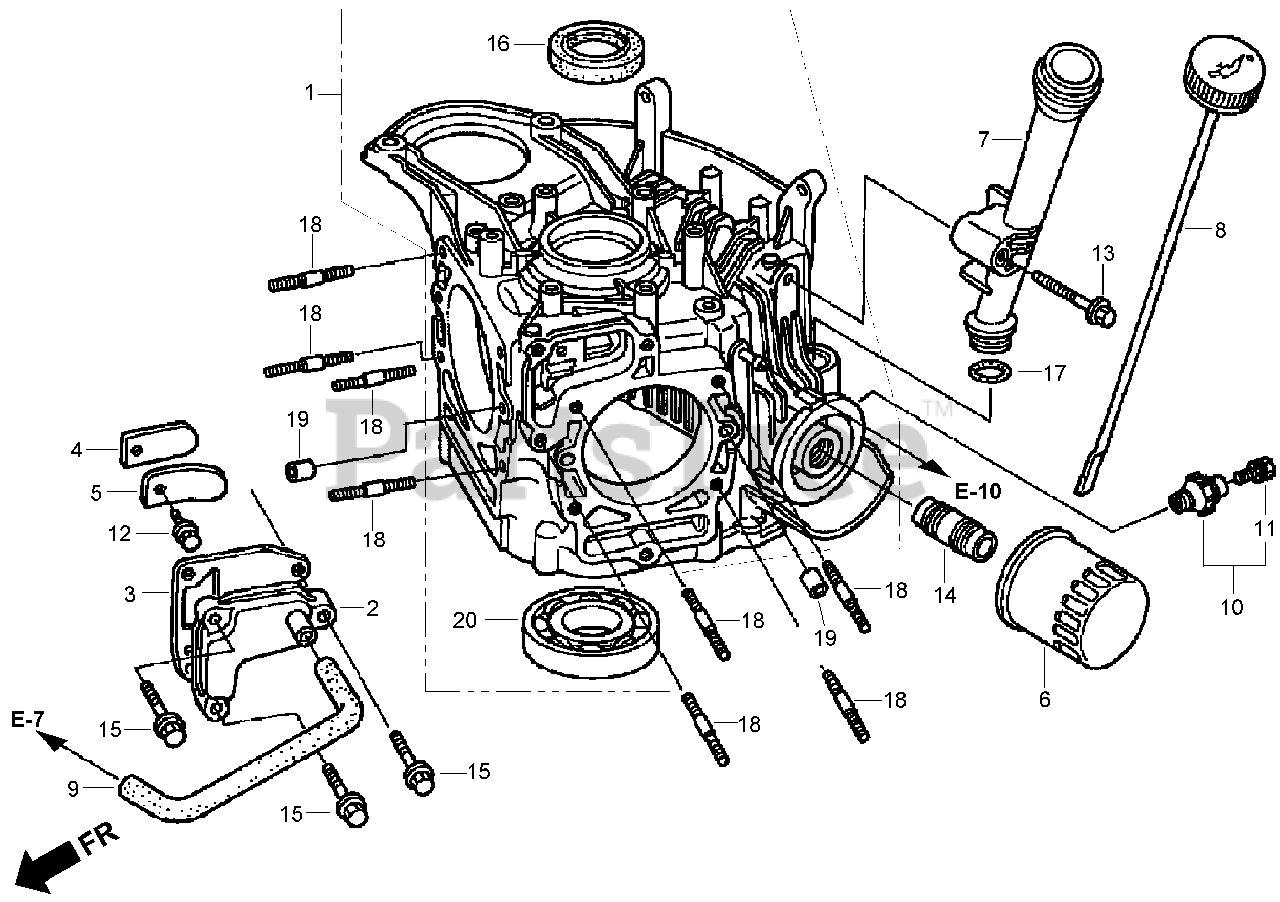

CRANKCASE ASSEMBLY HONDA GXV530 EXA2-MOD Parts Diagram

  • Title
1

Lawn-Boy 11100-Z0A-409

CRANKCASE ASM (840)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 12356-Z0A-000

COVER-BREATHER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 12358-Z0A-000

GASKET-COVER, BREATHER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 12372-ZA0-701

PLATE-VALVE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 12374-Z0A-000

STOPPER-VALVE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 15410-MCJ-000

FILTER-OIL (TOYO ROKI) ( Up To Engine Serial No. 1006029)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 15410-MCJ-003

FILTER-OIL (TOYO ROKI) ( Up To Engine Serial No. 1006029)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 15410-MFJ-D01

FILTER, OIL (TOYO ROKI)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 15631-Z0A-000

EXTENSION-FILLER, OIL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 15655-Z0A-800

DIPSTICK-OIL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 15721-Z0A-000

TUBE-BREATHER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 35490-Z0A-003

OIL PRESSURE SWITCH ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 90002-PA6-003

BOLT-WASHER (4X8) (DENSO)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 90002-892-000

BOLT-FLANGE (5X10)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 90016-ZE8-000

BOLT-FLANGE (6X45) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 90018-PN3-000

HOLDER-FILTER, OIL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

15

Lawn-Boy 90121-952-000

BOLT-FLANGE (6X25) (C T 200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

16

Lawn-Boy 91201-ZE3-004

SEAL-OIL (35X5X8)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

17

Lawn-Boy 91301-ZE9-003

O-Ring (22.5X2.2)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

18

Lawn-Boy 92900-08028-0E

BOLT-STUD (8X28)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

19

Lawn-Boy 94301-08140

Pin-Dowel (8X14)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

20

Lawn-Boy 96100-62070-00

BEARING-BALL, RADIAL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
