81271 (Z 3500 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000001 - 280999999) (2008) SEAT ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

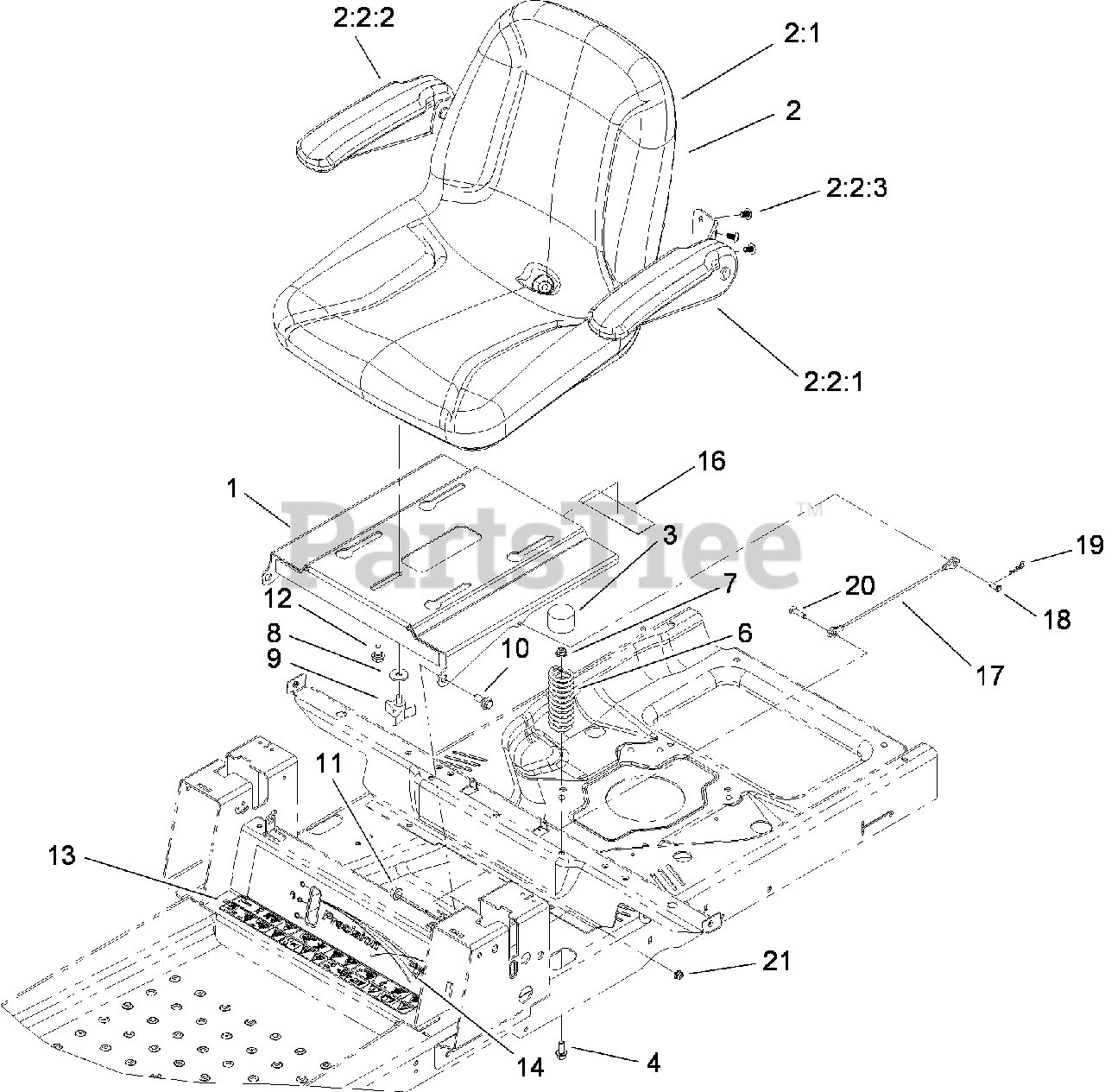

SEAT ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 115-2465-03

BASE-SEAT

$121.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 110-6777

18 INCH SEAT ASM (W/ARM RESTS)

$

$

Not available

2:1

Lawn-Boy 110-6773

SEAT-18 INCH

$

$

Not available

2:2:1

Lawn-Boy 110-6569

LH ARMREST KIT

$149.99

$

Usually ships in 3-6 days

0

2:2:2

Lawn-Boy 110-6570

RH ARMREST KIT

$149.99

$

Usually ships in 3-6 days

0

2:2:3

Lawn-Boy 108-6179

SCREW-HSBH

$12.99

$

Usually ships in 3-6 days

0

2:2

ARMREST KIT

Note: Not illustrated Not serviced separately

$

$

Not available

3

Lawn-Boy 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 11

0

4

Lawn-Boy 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 19

0

7

Lawn-Boy 104-8300

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-9674

KNOB

$14.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 94-7582

BOLT-SHOULDER

$3.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 37-8771

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 115-2469

DECAL-DANGER

$32.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 115-2472

DECAL

$

$

Not available

16

Lawn-Boy 106-8717

DECAL-SERVICE

$7.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 109-2628

CABLE-STOP, SEAT

$19.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 60-1730

PIN-CLEVIS

$5.49

$

In Stock, only 2 left!

0

19

Lawn-Boy 1-806003

PIN-COTTER, HAIR

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 104-7201

Nut-HF

$1.49

$

In Stock, Qty 20+

0
