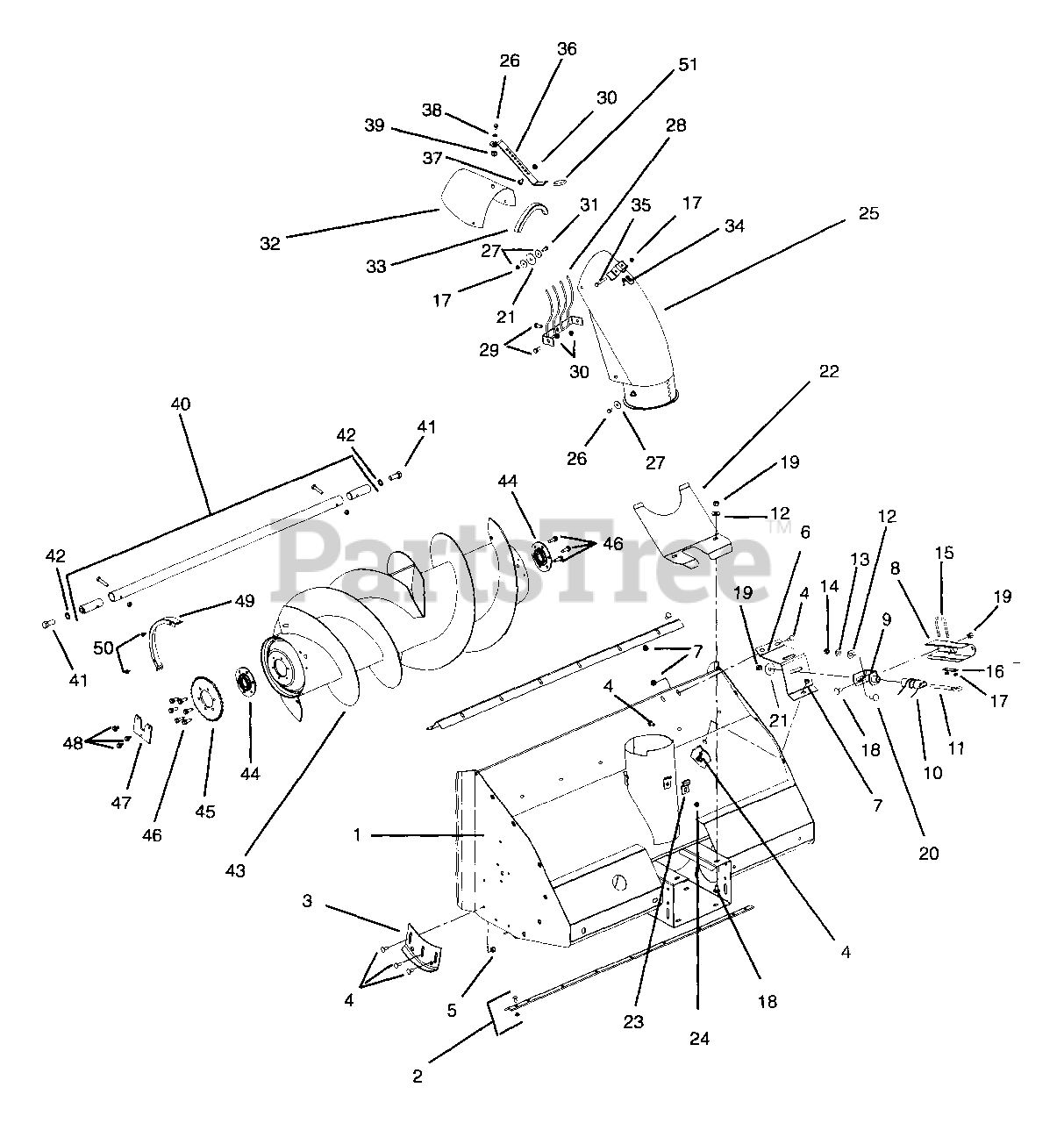

815001 - Ariens EZR 40" Snow Thrower Attachment (SN: 000101 & Above) Auger & Housing Parts Diagram

EZR 40" Snow Thrower Attachment

Auger & Housing Parts Diagram

  • Title

1

Ariens 21513000

HEADER AND DECAL ASSEMBLY

$

$

Not available

2

Ariens 21513300

REPAIR KIT 40" SCRAPER BLADE

$

$

Not available

3

Ariens 21513400

SKID SHOE
(Superseded to 20242700)

$

$

Not available

4

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 11

0

5

Ariens 21513500

NUT&LOCKWASHER ASSY 5/16-18

$

$

Not available

6

Ariens 21516200

STACK DRIVE SUPPORT

$

$

Not available

7

Ariens 21516300

SERRATED FLANGE NUT 5/16-18

$

$

Not available

8

Ariens 21516500

STACK DRIVE SHROUD

$

$

Not available

9

Ariens 21516600

BRACKET & TUBE ASSEMBLY

$

$

Not available

10

Ariens 21516700

CABLE,TUBE,&SLEAVE ASSEMBLY

$

$

Not available

11

Ariens 21516800

STACK DRIVE EYE BOLT

$

$

Not available

12

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

13

Ariens 21516900

SPRING WASHER

$

$

Not available

14

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 21517000

LEVEL WIND U BOLT

$

$

Not available

16

Ariens 21517100

FRICTION STRAP

$

$

Not available

17

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06219600

@BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

19

Ariens 21517200

NUT & LOCKWASHER

$

$

Not available

20

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

21

Ariens 21517400

BELT ADJUSTMENT BRACKET

$

$

Not available

22

Ariens 21517900

DRIVE PULLEY GUARD

$

$

Not available

23

Ariens 21519200

STACK ANCHOR

$

$

Not available

24

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 21518100

ELBOW

$

$

Not available

26

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

27

Ariens 21518300

WASHER

$

$

Not available

28

Ariens 21518200

CHUTE GUARD

$

$

Not available

29

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

30

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

32

Ariens 21518900

RUBBER GROMMET

$

$

Not available

33

Ariens 21518500

TRIM SEAL

$

$

Not available

34

Ariens 21518600

DEFLECTOR CONTROL SPRING

$

$

Not available

35

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0

36

Ariens 21518700

DEFLECTOR LOCK STRAP

$

$

Not available

37

Ariens 21519100

BOLT 5/16-18 X 5/8 HEX HEAD

$

$

Not available

38

Ariens 21519000

FLAT WASHER

$

$

Not available

39

Ariens 21518900

RUBBER GROMMET

$

$

Not available

40

Ariens 21514300

AUGER SHAFT ASSEMBLY

$

$

Not available

41

Ariens 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

42

Ariens 21514400

SHAKEPROOF WASHER 1/2

$

$

Not available

43

Ariens 21513800

AUGER ASSEMBLY 40"

$

$

Not available

44

Ariens 21513900

BEARING AND FLANGETTE ASSY.

$

$

Not available

45

Ariens 21514000

AUGER SPROKET 35 TOOTH

$

$

Not available

46

Ariens 07413900

@SCR-TAP .31-18X1.00 HWH TR YZ
(Superseded to 07400202)

$3.99

$

In Stock, Qty 5

0

47

Ariens 21513600

AUGER MOUNTING PLATE

$

$

Not available

48

Ariens 21513700

SELF TAPPING SCREW 5/16-18

$

$

Not available

49

Ariens 21514500

CHAIN GUARD

$

$

Not available

50

Ariens 21514600

SELF TAPPING SCREW

$

$

Not available

51

Ariens 21518800

RUBBER HANDLE GRIP

$

$

Not available
