815001 - Ariens EZR 40" Snow Thrower Attachment (SN: 000101 & Above) Belt And Chain Drive Parts Diagram

EZR 40" Snow Thrower Attachment

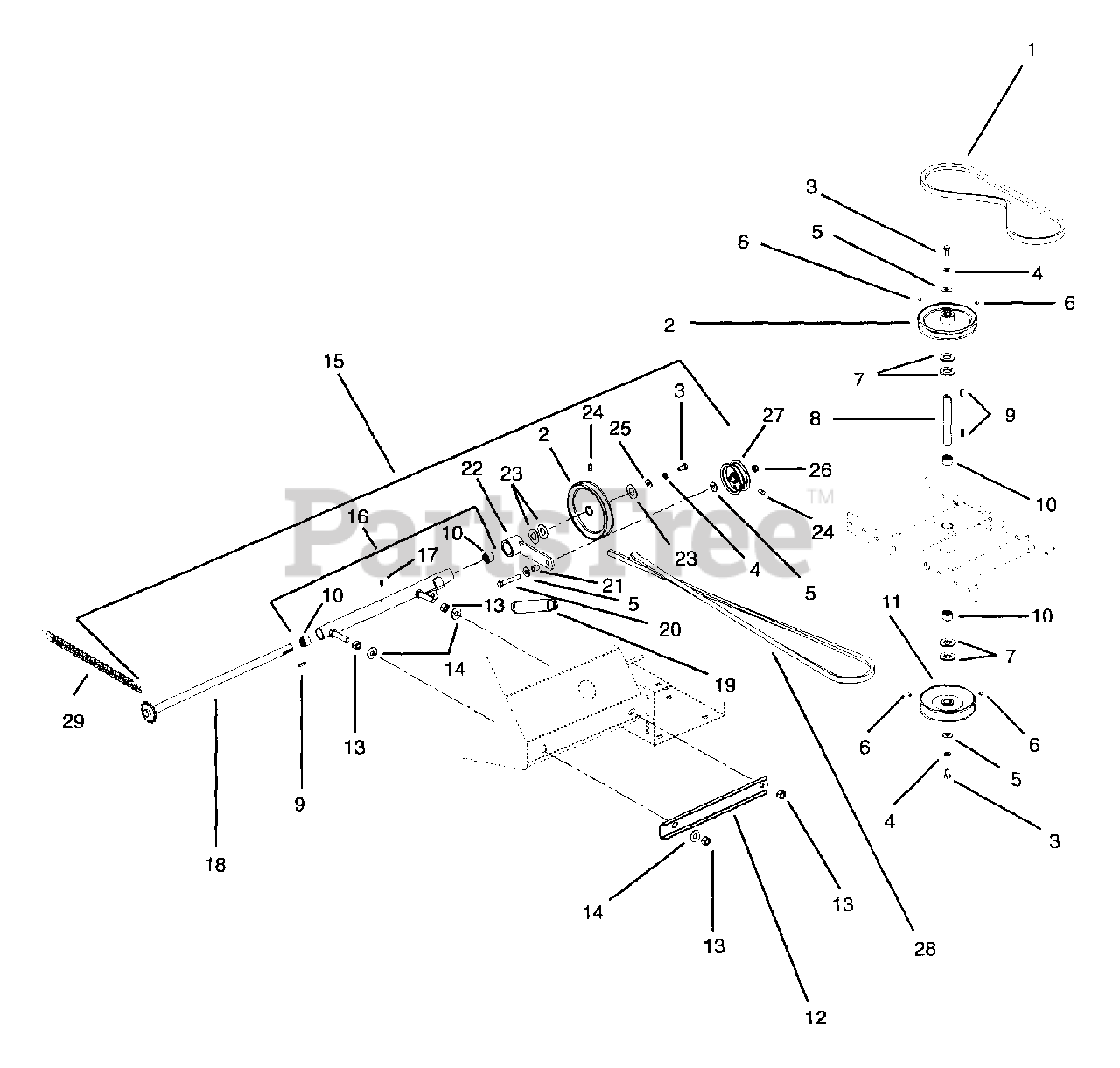

Belt And Chain Drive Parts Diagram

  • Title

1

Ariens 21521300

V-BELT

$

$

Not available

2

Ariens 21515800

PULLEY & HUB

$

$

Not available

3

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

4

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

5

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 21519700

SELF TAPPING SCREW 5/16-18

$

$

Not available

7

Ariens 21519500

WASHER 13/16 X 1-1/2

$

$

Not available

8

Ariens 21519400

SHAFT

$

$

Not available

9

Ariens 21515700

KEY SQUARE

$

$

Not available

10

Ariens 21514900

NEEDLE BEARING

$

$

Not available

11

Ariens 21519600

PULLEY & HUB ASSEMBLY

$

$

Not available

12

Ariens 21515900

SUPPORT BRACKET

$

$

Not available

13

Ariens 21516000

NUT 1/2-13 LT HEX

$

$

Not available

14

Ariens 21516100

WASHER

$

$

Not available

15

Ariens 21514700

JACKSHAFT HOUSING ASSEMBLY

$

$

Not available

16

Ariens 21514800

JACKSHAFT HOUSING & BEARINGS

$

$

Not available

17

Ariens 21515000

GREASE FITTING

$

$

Not available

18

Ariens 21515100

JACKSHAFT & SPROCKET ASSEMBLY

$

$

Not available

19

Ariens 21515500

SPRING

$

$

Not available

20

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 21515400

SPACER

$

$

Not available

22

Ariens 21515200

IDLER ARM

$

$

Not available

23

Ariens 21515600

FLAT WASHER

$

$

Not available

24

Ariens 06002600

SCR-SET .32-18X.50 SQHCUP OH

$

$

Not available

25

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, only 3 left!

0

26

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 21515300

IDLER PULLEY

$

$

Not available

28

Ariens 21521200

V-BELT

$

$

Not available

29

Ariens 21514100

ROLLER CHAIN

$

$

Not available

Ariens 21514200

REPAIR KIT #40+#41 CHAIN

Note: Not Shown; As required

$

$

Not available
