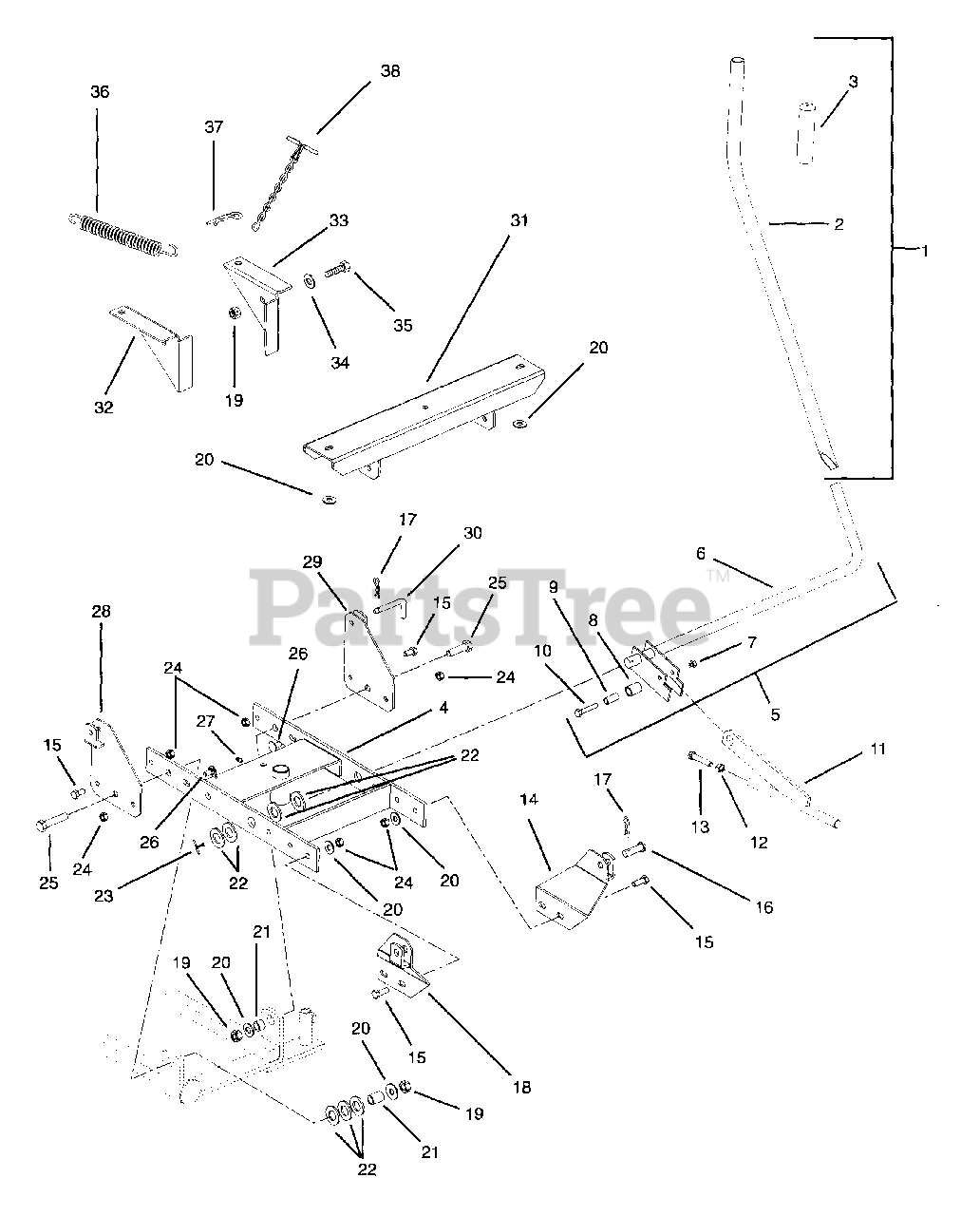

815001 - Ariens EZR 40" Snow Thrower Attachment (SN: 000101 & Above) Mount Frame & Lift Handle Parts Diagram

EZR 40" Snow Thrower Attachment

Mount Frame & Lift Handle Parts Diagram

  • Title

1

Ariens 21521900

LIFT HANDLE ASSEMBLY

$

$

Not available

2

Ariens 21522000

LIFT HANDLE

$

$

Not available

3

Ariens 21522100

HANDLE GRIP

$

$

Not available

4

Ariens 21519300

MOUNTING FRAME & BEARING ASSEM

$

$

Not available

5

Ariens 21519800

LIFT BAR ASSEMBLY

$

$

Not available

6

Ariens 21519900

LIFT BAR

$

$

Not available

7

Ariens 21513500

NUT&LOCKWASHER ASSY 5/16-18

$

$

Not available

8

Ariens 21520100

SPACER

$

$

Not available

9

Ariens 21520000

SPACER

$

$

Not available

10

Ariens 03957400

PTO SWITCH

$

$

Not available

11

Ariens 21520300

LIFT EXTENSION

$

$

Not available

12

Ariens 21517800

NUT 3/8-16 LT HEX

$

$

Not available

13

Ariens 21520400

BOLT 3/8-16 X 2.00 FULL THD

$

$

Not available

14

Ariens 21521100

REAR MOUNTING BRACKET RH

$

$

Not available

15

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

16

Ariens 21521600

CLEVIS PIN

$

$

Not available

17

Ariens 21521700

HAIR COTTER PIN

$

$

Not available

18

Ariens 21521000

REAR MOUNTING BRACKET LH

$

$

Not available

19

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

20

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

21

Ariens 21520600

SPACER

$

$

Not available

22

Ariens 21519500

WASHER 13/16 X 1-1/2

$

$

Not available

23

Ariens 06712600

@PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 7

0

24

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 05961000

@BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.49

$

In Stock, Qty 9

0

26

Ariens 06219600

@BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

27

Ariens 21515000

GREASE FITTING

$

$

Not available

28

Ariens 21520500

FRONT MOUNTING BRACKET LH

$

$

Not available

29

Ariens 21520700

FRONT MOUNTING BRACKET RH

$

$

Not available

30

Ariens 21521800

LOCATING PIN

$

$

Not available

31

Ariens 21521500

FRONT MOUNTING BRACKET RH

$

$

Not available

32

Ariens 21522300

LIFT SPRING/UP STOP BRACKET LH

$

$

Not available

33

Ariens 21522400

LIFT SPRING/UP STOP BRACKET RH

$

$

Not available

34

Ariens 21520900

WASHER 17/32 X 1-1/16

$

$

Not available

35

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

36

Ariens 21522500

IDLER ARM SPRING

$

$

Not available

37

Ariens 21522700

HAIR COTTER PIN

$

$

Not available

38

Ariens 21522600

CHAIN & TOGGLE

$

$

Not available
