815004 - Ariens EZR 40" 2-Bucket Grass Bagger (SN: 000101 & Above) Counter Weight, Boots And Vanes Parts Diagram

EZR 40" 2-Bucket Grass Bagger

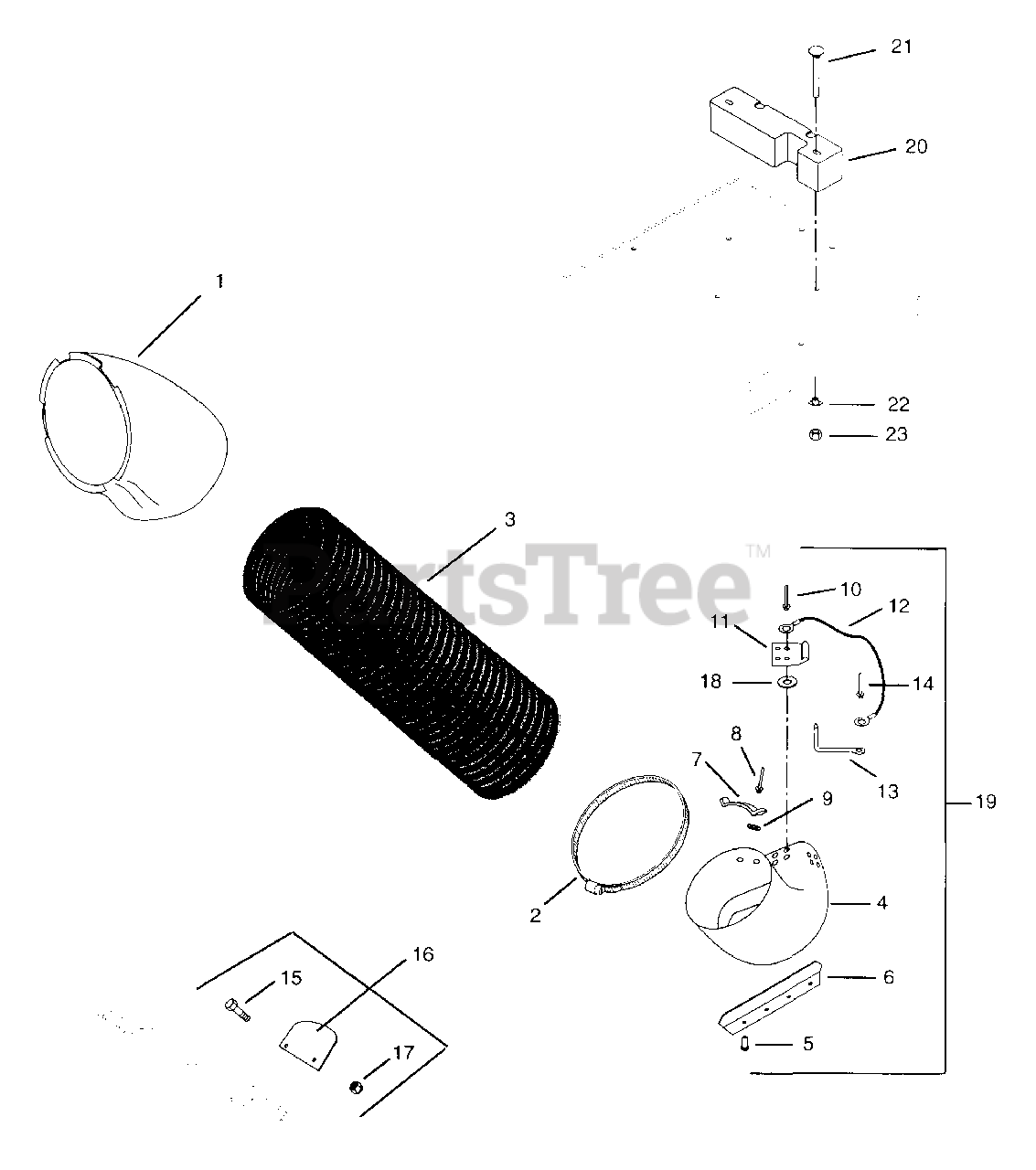

Counter Weight, Boots And Vanes Parts Diagram

  • Title

1

Ariens 03599600

BAGGER BOOT - UPPER

$

$

Not available

2

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$17.99

$

Usually ships in 4-12 days

0

3

Ariens 03026800

HOSE 7X38
(Superseded to 04222800)

$95.99

$

In Stock, only 2 left!

0

4

Ariens 03640400

PAN BOOT ASSEMBLY

$

$

Not available

5

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 03640100

EXTENSION-CHUTE

$50.99

$

Usually ships in 4-12 days

0

7

Ariens 02750600

TUBE RETAINER CLIP

$17.99

$

Usually ships in 4-12 days

0

8

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06424200

WSHR-FL-STL .215X.56X.085 PL

$

$

Not available

10

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 11

0

11

Ariens 02746100

BOOT BRACKET

$17.99

$

Usually ships in 4-12 days

0

12

Ariens 02746400

LANYARD

$21.99

$

Usually ships in 4-12 days

0

13

Ariens 02746300

PULL PIN

$29.99

$

In Stock, only 2 left!

0

14

Ariens 06807200

RVT-TBLR .187X.375 ST-AL PL

$

$

Not available

15

Ariens 05920300

BLT-HEX .38-16X2.00 GR8
(Superseded to 05963100)

$2.99

$

In Stock, only 3 left!

0

16

Ariens 53504600

SERVICE VANE PACKAGE

$52.99

$

Usually ships in 4-12 days

0

17

Ariens 06514500

NUT-LK TOP .312-24 PL GR C

$

$

Not available

18

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

$1.99

$

Usually ships in 4-12 days

0

19

Ariens 53602100

MOWER BOOT ASSY- 40"

$230.99

$

Usually ships in 4-12 days

0

20

Ariens 03640200

COUNTER WEIGHT
(Superseded to 03640251)

$387.99

$

Usually ships in 4-12 days

0

21

Ariens 06210400

BLT-RDHDSQNK .44-14X4.50 PL

$

$

Not available

22

Ariens 06304000

WSHR-LK-INT .438 YWZC

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 06503500

@NUT-HEX .44-14 YWZC

$3.49

$

In Stock, only 4 left!

0
