815005 - Ariens EZR 40" 2-Bucket Grass Bagger (SN: 000101 & Above) Bagger Parts Diagram

EZR 40" 2-Bucket Grass Bagger

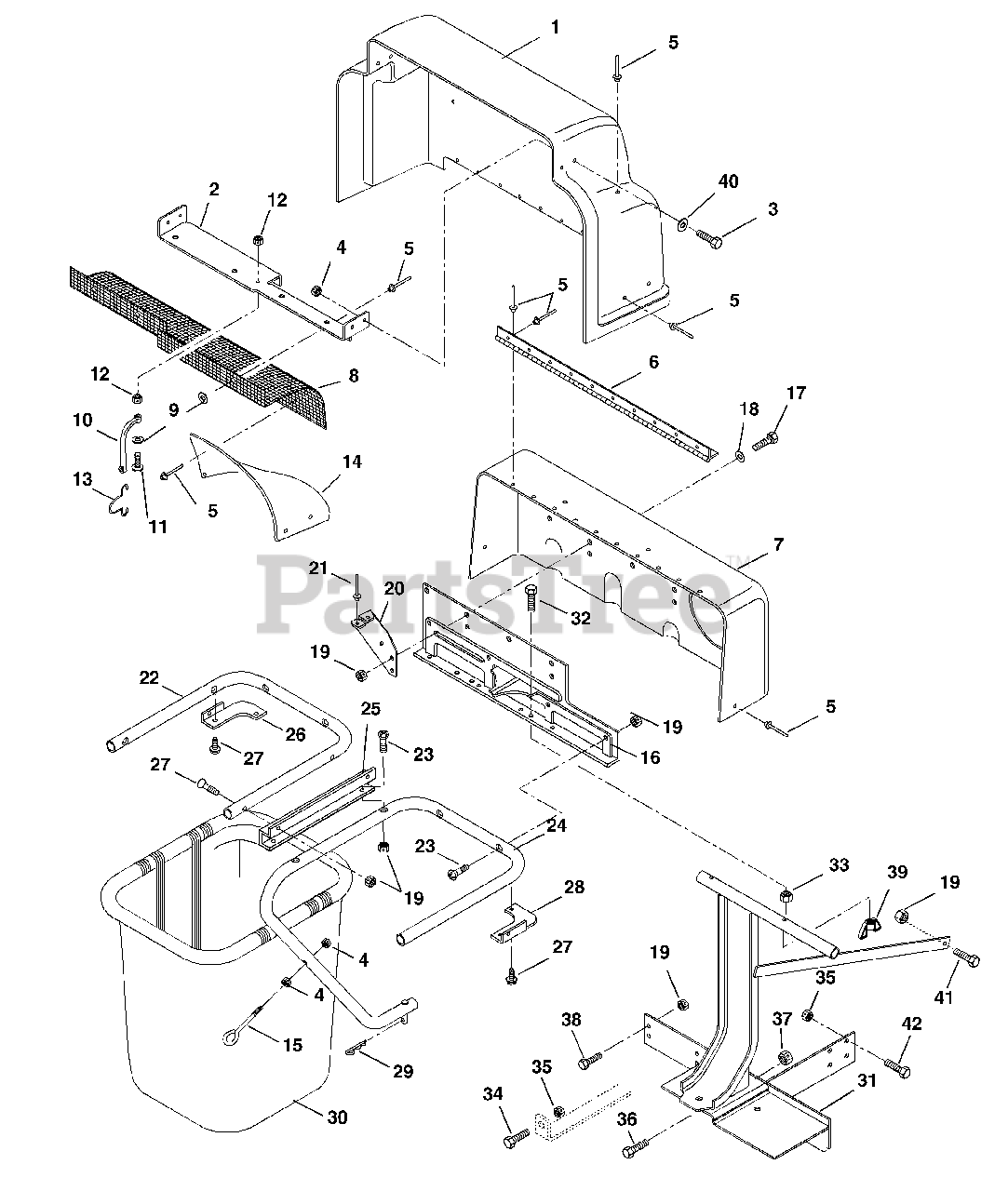

Bagger Parts Diagram

  • Title

1

Ariens 52705600

HINGED COVER W/DECALS

$

$

Not available

2

Ariens 02730600

COVER BRACKET

$

$

Not available

3

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

4

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 11

0

6

Ariens 02725300

HINGE

$

$

Not available

7

Ariens 52705700

STATIONARY COVER

$

$

Not available

8

Ariens 02730500

SCREEN

$

$

Not available

9

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

10

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

11

Ariens 06119200

SCR-MCH 10-24X.88 SLRH YWZC

$

$

Not available

12

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

13

Ariens 02738100

HOOK

$6.99

$

In Stock, Qty 6

0

14

Ariens 02731200

BAFFLE

$

$

Not available

15

Ariens 02440100

EYEBOLT

$10.99

$

Usually ships in 4-12 days

0

16

Ariens 02745800

MOUNTING BRACKET

$

$

Not available

17

Ariens 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 02725200

BRACE

$

$

Not available

21

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

22

Ariens 02724651

CENTER TUBE

$44.99

$

Usually ships in 4-12 days

0

23

Ariens 06119100

SCR-MCH .31-18 X 1.50 YWZC

$

$

Not available

24

Ariens 02724800

RIGHT TUBE

$

$

Not available

25

Ariens 02724700

TUBE BRACKET

$

$

Not available

26

Ariens 02725100

LH CORNER BRACKET

$

$

Not available

27

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 02725000

RH CORNER BRACKET

$

$

Not available

29

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

In Stock, only 2 left!

0

30

Ariens 02724400

GRASS BAGGER BASKET

$79.99

$

In Stock, only 2 left!

0

31

Ariens 01545400

FRAME, BAGGER
(Superseded to 01586951)

$

$

Not available

32

Ariens 05970900

BLT-HEX .31-18X1.75 FLTHD YWZC

$2.99

$

Usually ships in 4-12 days

0

33

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

34

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

35

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

37

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

38

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

39

Ariens 06537100

NUT-NYLK WING .312-18 YWZC

$5.99

$

In Stock, only 1 left!

0

40

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

41

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

42

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
