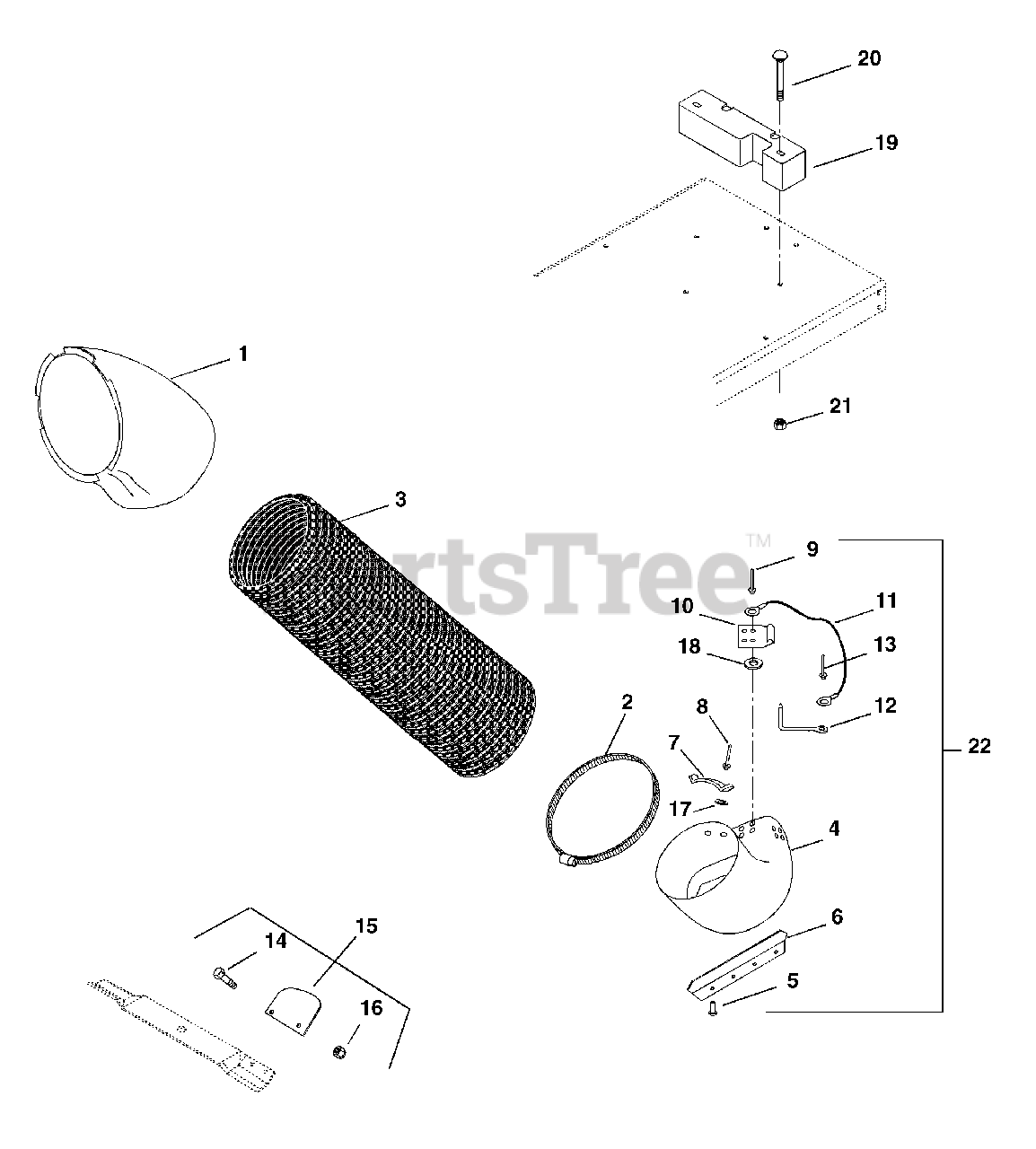

815005 - Ariens EZR 40" 2-Bucket Grass Bagger (SN: 000101 & Above) Counterweight, Boots And Vanes Parts Diagram

EZR 40" 2-Bucket Grass Bagger

Counterweight, Boots And Vanes Parts Diagram

  • Title

1

Ariens 03599600

BAGGER BOOT - UPPER

$

$

Not available

2

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$17.99

$

Usually ships in 4-12 days

0

3

Ariens 03026800

HOSE 7X38
(Superseded to 04222800)

$95.99

$

In Stock, only 2 left!

0

4

Ariens 03640400

PAN BOOT ASSEMBLY

$

$

Not available

5

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 03640100

EXTENSION-CHUTE

$50.99

$

Usually ships in 4-12 days

0

7

Ariens 02750600

TUBE RETAINER CLIP

$17.99

$

Usually ships in 4-12 days

0

8

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 11

0

10

Ariens 02746100

BOOT BRACKET

$17.99

$

Usually ships in 4-12 days

0

11

Ariens 02746400

LANYARD

$21.99

$

Usually ships in 4-12 days

0

12

Ariens 02746300

PULL PIN

$29.99

$

In Stock, only 2 left!

0

13

Ariens 06807200

RVT-TBLR .187X.375 ST-AL PL

$

$

Not available

14

Ariens 05970500

BLT-HEX .31-24X.75 GR8 YWZC
(Superseded to 05902019)

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 53504600

SERVICE VANE PACKAGE

$52.99

$

Usually ships in 4-12 days

0

16

Ariens 06537000

NUT-CTRLK .31-24 YWZC

$1.49

$

In Stock, only 3 left!

0

17

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

18

Ariens 06444400

@WSHR-FL-STL .188X.438X.049 YZ

$1.99

$

Usually ships in 4-12 days

0

19

Ariens 03640251

COUNTER WEIGHT

$387.99

$

Usually ships in 4-12 days

0

20

Ariens 06221000

@BLT-RDHDSQNK .44-14X4.50 G2YZ

$

$

Not available

21

Ariens 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 53602100

MOWER BOOT ASSY- 40"

$230.99

$

Usually ships in 4-12 days

0
