815005 - Gravely 40" Deck Grass Bagger for ZT Series (SN: 000101 & Above) Counterweight, Boots And Vanes Parts Diagram

40" Deck Grass Bagger for ZT Series

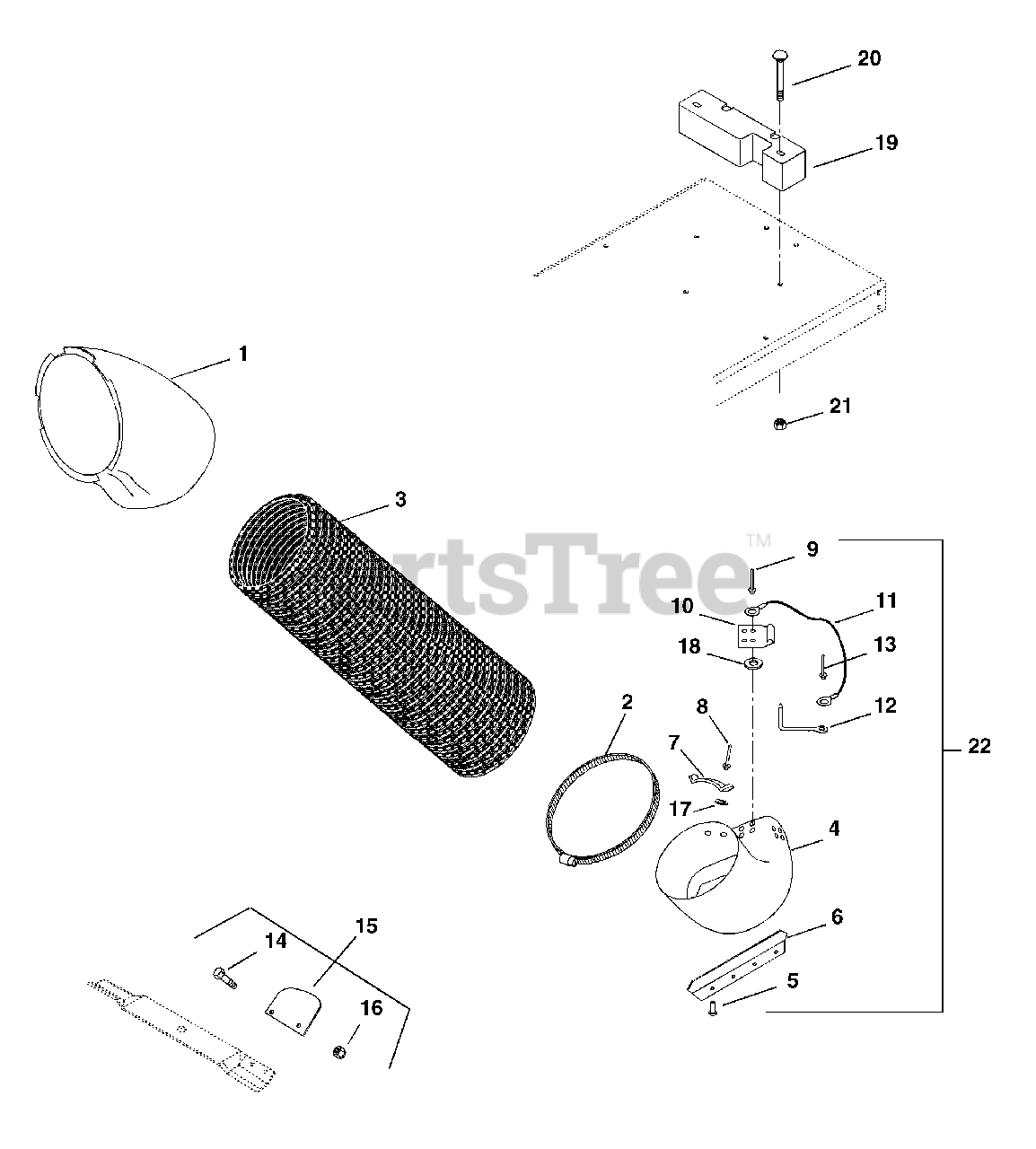

Counterweight, Boots And Vanes Parts Diagram

  • Title

1

Gravely 03599600

Upper Boot

$

$

Not available

2

Gravely 03022400

Hose Clamp

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 03026800

Hose 7 x 38
(Superseded to 04222800)

$95.99

$

In Stock, only 2 left!

0

4

Gravely 03640400

Lower Boot Assembly

$

$

Not available

5

Gravely 06806200

Rivet - Tubular .187 x .375

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 03640100

Extension - Chute

$50.99

$

Usually ships in 4-12 days

0

7

Gravely 02750600

Tube Retainer Clip

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 06803800

Rivet - Pop .187 x .527

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06802500

Rivet - Pop .187 x .402

$1.49

$

In Stock, Qty 11

0

10

Gravely 02746100

Boot Bracket

$17.99

$

Usually ships in 4-12 days

0

11

Gravely 02746400

Lanyard

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 02746300

Pull Pin

$29.99

$

In Stock, only 2 left!

0

13

Gravely 06807200

Rivet - Tubular .187 x .375

$

$

Not available

14

Gravely 05970500

Bolt-Hex .31-24 x .75 Grade 8
(Superseded to 05902019)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 53504600

Vane Service Package

$52.99

$

Usually ships in 4-12 days

0

16

Gravely 06537000

Nut-Locking Top .312-24

$1.49

$

In Stock, only 3 left!

0

17

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 06444400

Washer-Flat-Steel .194 x .492 x .047

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 03640251

Counterweight

$387.99

$

Usually ships in 4-12 days

0

20

Gravely 06221000

Bolt-Round Head Square Neck .44 -14 x 4.50 Grade 2

$

$

Not available

21

Gravely 06536400

Nut .437-14
(Superseded to 06500930)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 53602100

Mower Boot Assembly - 40"

$230.99

$

Usually ships in 4-12 days

0
