815006 - Gravely Front Blade for ZT Series (SN: 000101 & Above)

Front Blade for ZT Series

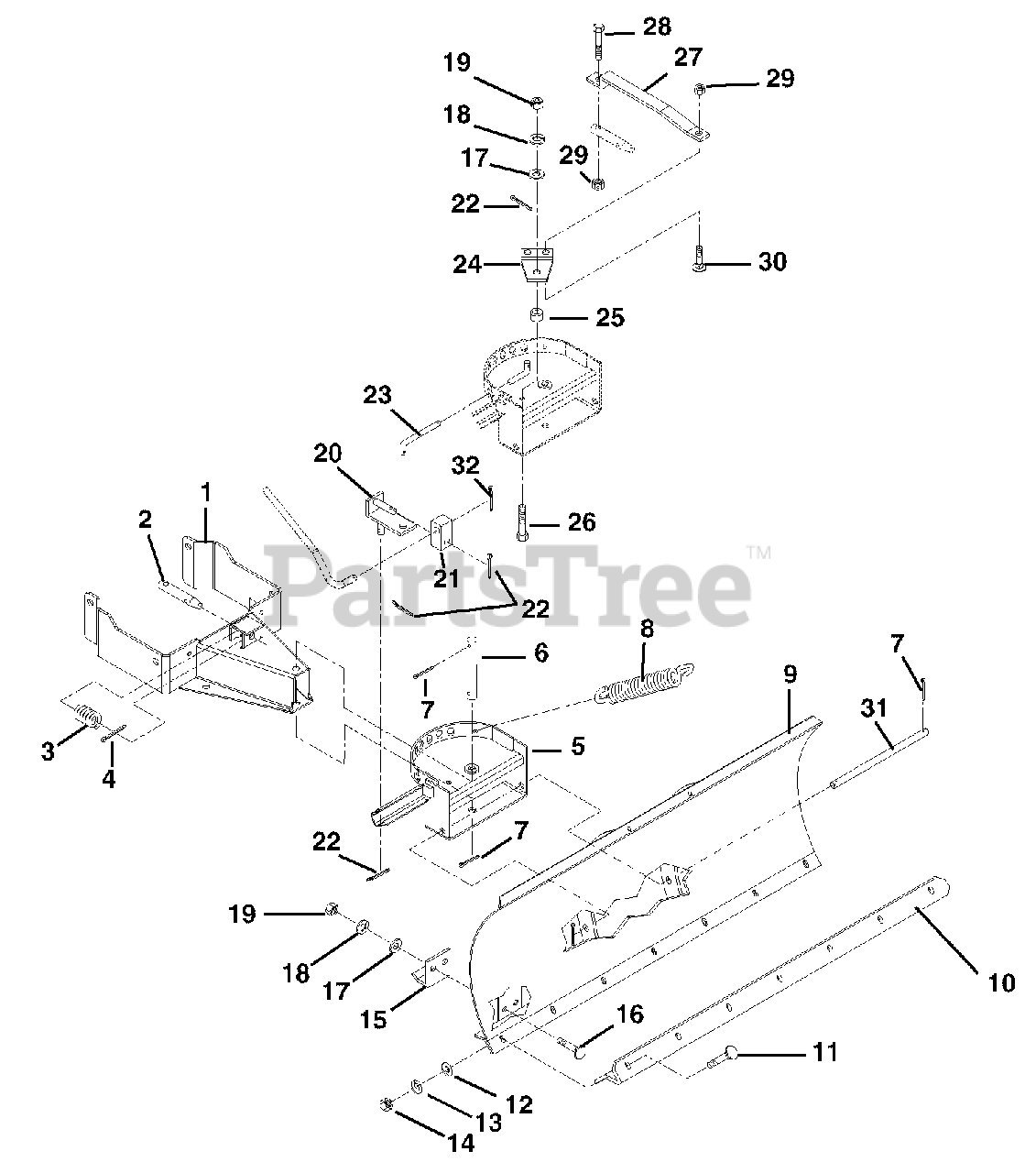

815006 - Gravely Front Blade for ZT Series (SN: 000101 & Above) > Parts Diagrams (4) > 42" Blade

  • Title
03360100

1

Frame-Push

Part# 03360100

OEM Warranty Repair Part for Gravely

Not available

03125400

2

Latch Pin

Part# 03125400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $33.48

08313200

3

Spring-Compression .080 x .85 x 1.44

Part# 08313200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $36.23

06707100

4

Pin-Cotter .12 x 1.00

Part# 06707100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.31

02918100

5

Support

Part# 02918100

OEM Warranty Repair Part for Gravely

Not available

02918400

6

Rod

Part# 02918400

OEM Warranty Repair Part for Gravely

Not available

06712000

7

Pin-Cotter .12 x 1.00

Part# 06712000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $1.40

08313300

8

Spring- Tension .187 x .50 x 9.94

Part# 08313300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $39.07

02818500

9

Blade

Part# 02818500

OEM Warranty Repair Part for Gravely

Not available

02918600

10

Wear Plate

Part# 02918600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $89.38

06216100

11

Bolt-Round Head Square Neck .31-18 x 1.00

Part# 06216100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06435700

12

Washer-Flat-Steel .38 x .845 .083

Part# 06435700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06308600

13

Washer-Lock .31 x .078 Regulator

Part# 06308600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.88

06529200

14

Nut-Hex .38-16 Grade 2

Part# 06529200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $5.53

03127100

15

Skid Shoe

Part# 03127100

OEM Warranty Repair Part for Gravely

Not available

06223600

16

Bolt-Round Head Square Neck .38-16 x 1.0

Part# 06223600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06435900

17

Washer-Flat Steel .438 x 1.0 x .083

Part# 06435900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06308800

18

Washer-Lock .375 x .094

Part# 06308800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529400

19

Nut-Hex .375-16 Grade 2

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.31

03126900

20

Angle

Part# 03126900

OEM Warranty Repair Part for Gravely

Not available

03126800

21

Universal Block Joint

Part# 03126800

OEM Warranty Repair Part for Gravely

Not available

06707300

22

Pin-Cotter .12 x .75

Part# 06707300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

02918200

23

Rod

Part# 02918200

OEM Warranty Repair Part for Gravely

Not available

03125200

24

Pivot Plate

Part# 03125200

OEM Warranty Repair Part for Gravely

Not available

02914000

25

Spacer .406 x .749 x .162

Part# 02914000

OEM Warranty Repair Part for Gravely

Not available

05948700

26

Bolt-Hex. .38-16 x 1.00 Grade 5

Part# 05948700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

02918300

27

Strap

Part# 02918300

OEM Warranty Repair Part for Gravely

Not available

05947500

28

Bolt-Hex .31-18 x 1.25 Grade 5

Part# 05947500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529800

29

Nut-Locking Center .31-18

Part# 06529800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06220800

30

Bolt-Round Head Square Short Neck .31-18 x .75 Grade 5

Part# 06220800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

02918700

31

Rod

Part# 02918700

OEM Warranty Repair Part for Gravely

Not available

06713500

32

Pin-Hair Internal .08 x .18 x 1.18

Part# 06713500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $5.53
