815008 - Ariens 42" Grass Bagger (SN: 000101 & Above) Counterweight, Boots And Vanes Parts Diagram

42" Grass Bagger

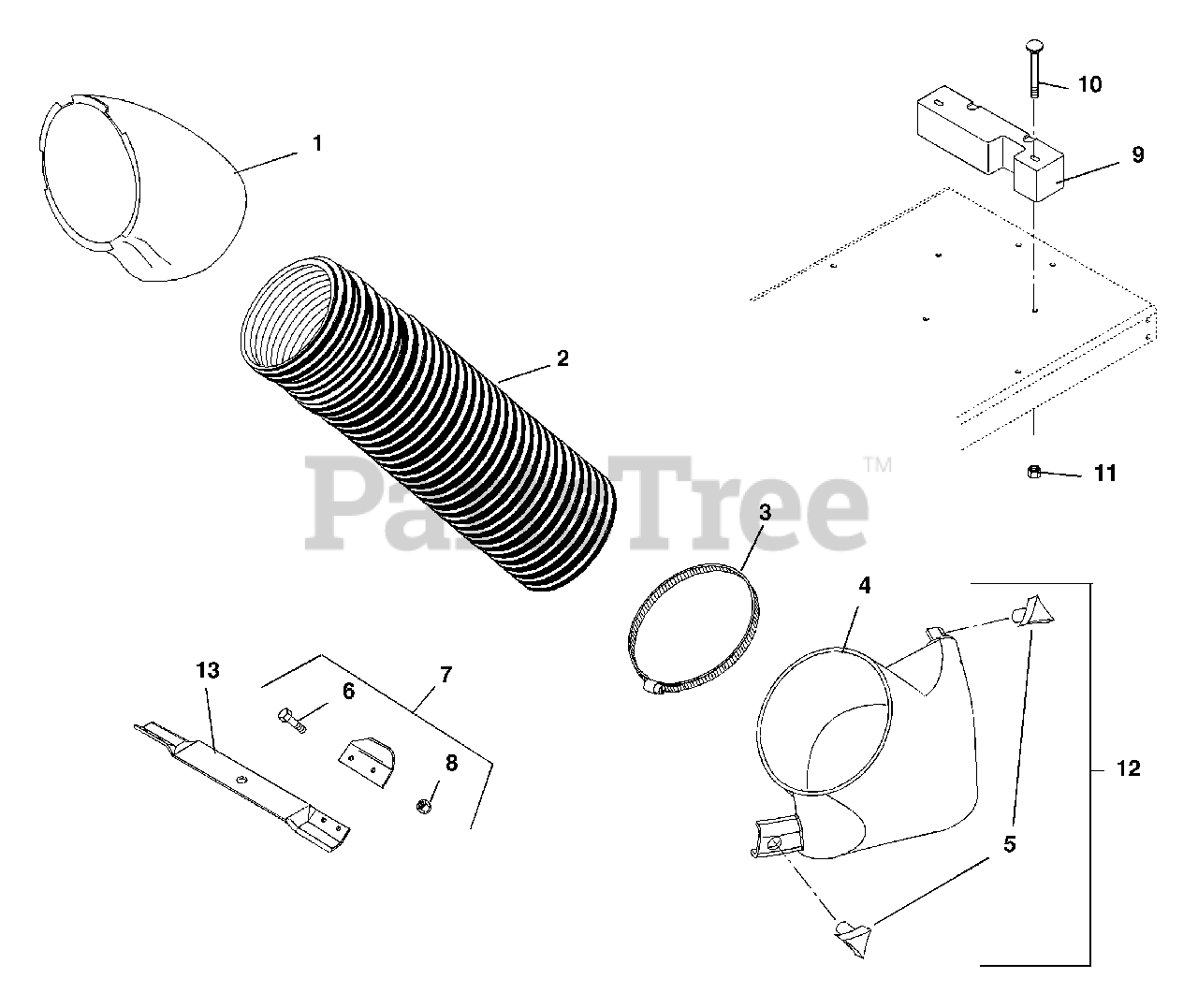

Counterweight, Boots And Vanes Parts Diagram

  • Title

1

Ariens 03599600

BAGGER BOOT - UPPER

$

$

Not available

2

Ariens 01585800

HOSE 7 X 45
(Superseded to 04222900)

$131.99

$

In Stock, Qty 5

0

3

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$18.99

$

Usually ships in 4-12 days

0

4

Ariens 01585900

ASS'Y, MOWER BOOT W/DECAL

$

$

Not available

5

Ariens 07532600

KNOB

$18.99

$

Usually ships in 4-12 days

0

6

Ariens 05970500

BLT-HEX .31-24X.75 GR8 YWZC
(Superseded to 05902019)

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 51503500

ASS'Y, VANE SERVICE

$83.99

$

Usually ships in 4-12 days

0

8

Ariens 06537000

NUT-CTRLK .31-24 YWZC

$1.99

$

In Stock, Qty 5

0

9

Ariens 03640251

COUNTER WEIGHT

$387.99

$

Usually ships in 4-12 days

0

10

Ariens 06221000

@BLT-RDHDSQNK .44-14X4.50 G2YZ

$

$

Not available

11

Ariens 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$3.49

$

In Stock, Qty 8

0

12

Ariens 51503600

ASS'Y, MOWER BOOT 42"

$

$

Not available

13

Ariens 01584500

BLADE, 22"

$31.99

$

In Stock, Qty 8

0
