815009 - Gravely 48" Deck Grass Bagger for ZT Series (SN: 000101 & Above) Belt And Counterweight Parts Diagram

48" Deck Grass Bagger for ZT Series

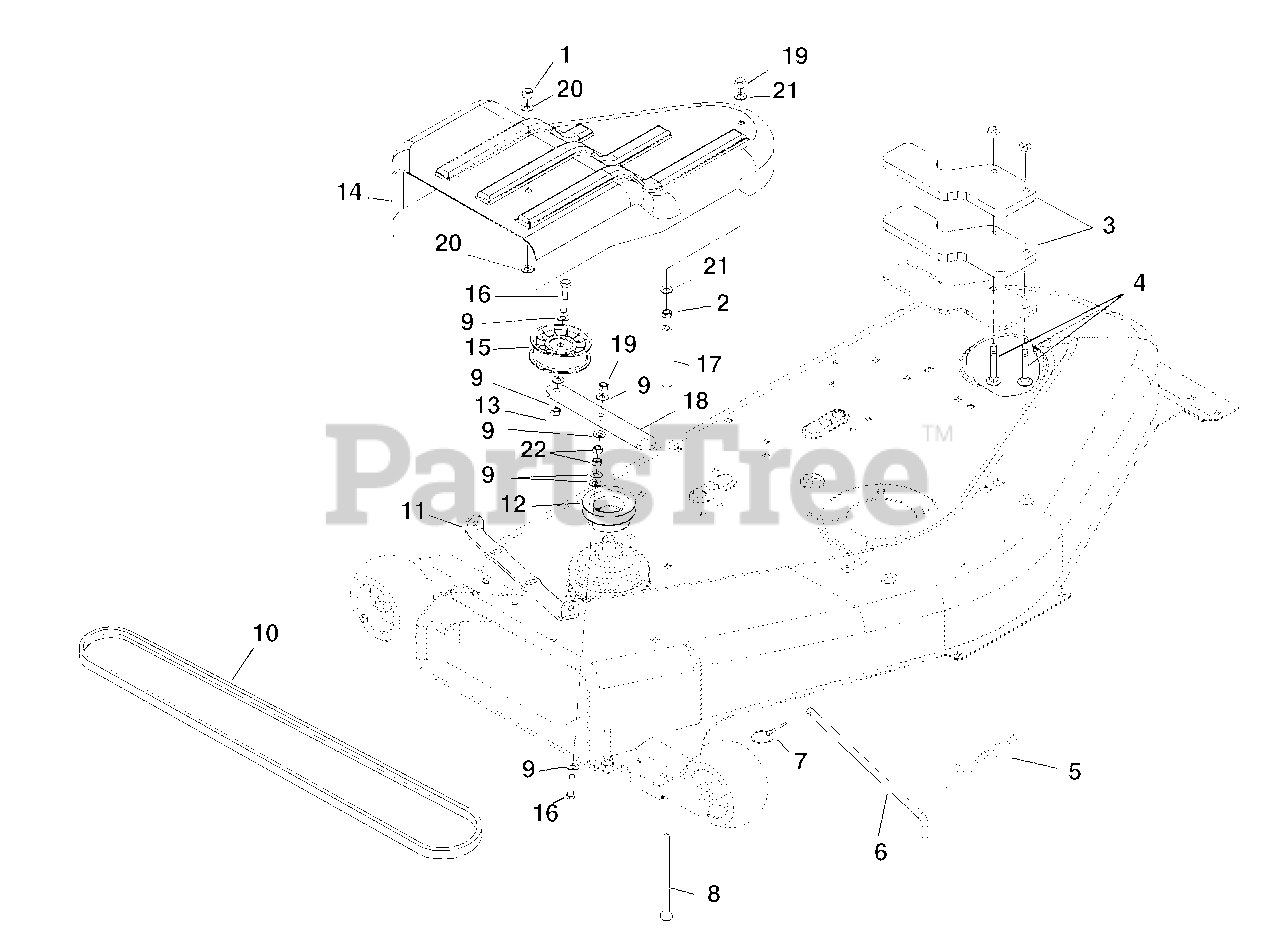

Belt And Counterweight Parts Diagram

  • Title

1

Gravely 06531000

Nut-Lock-Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

2

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 01566751

Counterweight

$

$

Not available

4

Gravely 06220200

Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

5

Gravely 08332000

Spring-Tension .069 x .62 x 3.50

$11.99

$

In Stock, only 2 left!

0

6

Gravely 03691400

Rod-Mounting

$75.99

$

Usually ships in 4-12 days

0

7

Gravely 07014500

Pin-Klik 1.000 x .188 x 1.25

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 05957600

Bolt-Hex .31-18 x 5.50 Grade 5
(Superseded to 05901926)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 6

0

10

Gravely 07220500

V-Belt A-Section 25.95 x .516

$36.99

$

In Stock, only 2 left!

0

11

Gravely 03691000

Bracket-Chute Pivot
(Superseded to 09261251)

$

$

Not available

12

Gravely 03688500

Pulley-Driver 3.00"

$162.99

$

Usually ships in 4-12 days

0

13

Gravely 06530400

Nut-Locking-Flange .31-18
(Superseded to 06500815)

$1.49

$

In Stock, only 2 left!

0

14

Gravely 03686000

Cover, Belt

$117.99

$

Usually ships in 4-12 days

0

15

Gravely 07309300

Idler-Flat 3.00 x .38

$37.99

$

In Stock, Qty 5

0

16

Gravely 05957400

Bolt-Hex .31-18X1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

17

Gravely 03692300

Spacer-.334 I.D. x 4.63

$

$

Not available

18

Gravely 03688200

Bracket-Tension Arm

$

$

Not available

19

Gravely 06530200

Nut-Lock-Nylon .31-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

20

Gravely 06426600

Washer-Flat-Steel .281 x 1.00 x .048
(Superseded to 06401020)

$0.99

$

In Stock, only 2 left!

0

21

Gravely 06446900

Washer-Flat-Steel .344 x 1.375 x 0.75
(Superseded to 06401105)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 06536100

Nut-Jam .31-18
(Superseded to 06500909)

$0.99

$

In Stock, only 3 left!

0
