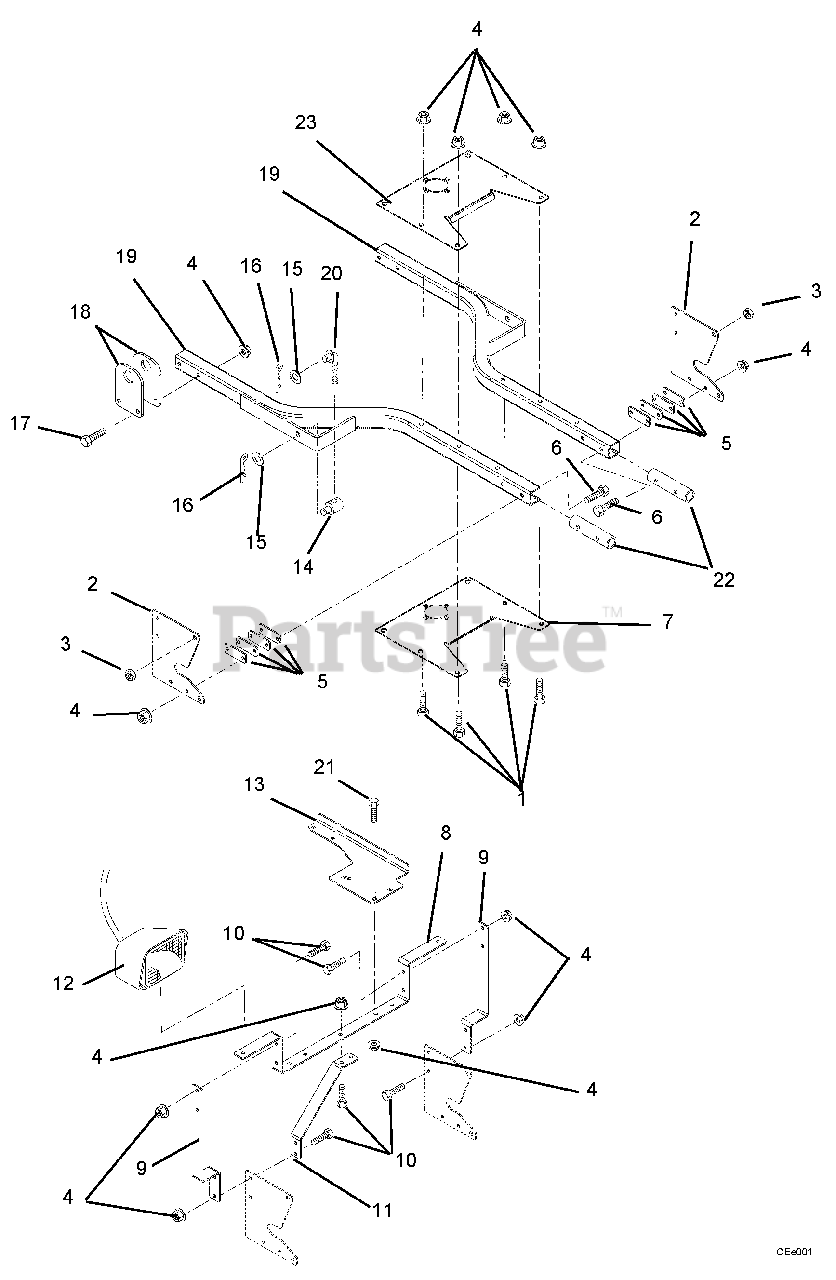

815012 - Ariens Zoom Snow Thrower Attachment (SN: 000101 & Above) Frame Assembly Parts Diagram

Zoom Snow Thrower Attachment

Frame Assembly Parts Diagram

  • Title

1

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

2

Ariens 00263551

PLATE,SNO-THRO MOUNT

$

$

Not available

3

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

4

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00264551

PLATE,SHIM

$

$

Not available

6

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 00260351

PLATE,SUB-FRAME

$39.99

$

Usually ships in 4-12 days

0

8

Ariens 00263751

LIGHT-BAR,SNO-THRO

$

$

Not available

9

Ariens 00263651

SUPPORT,LIGHT BAR

$

$

Not available

10

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00266151

GUSSET,LIGHT BAR

$

$

Not available

12

Ariens 02463600

HEADLIGHT

$83.99

$

Usually ships in 4-12 days

0

13

Ariens 00264451

BKT,DEFLECTOR CNTRL

$

$

Not available

14

Ariens 01590400

TRUNNION-.50

$45.99

$

In Stock, Qty 8

0

15

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

Note: (Gravely Part Number 415543)

$2.99

$

In Stock, Qty 13

0

16

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 18

0

17

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

18

Ariens 00181851

BRKT,PIVOT

$

$

Not available

19

Ariens 00181751

WMT,SUB-FRAME TUBE

$

$

Not available

20

Ariens 02778100

LINK, LIFT

$40.99

$

Usually ships in 4-12 days

0

21

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

22

Ariens 03967500

TUBE, ANTI-CRUSH

$

$

Not available

23

Ariens 04446351

PLATE, SUBFRAME - TOP

$25.99

$

Usually ships in 4-12 days
