815012 - Ariens Zoom Snow Thrower Attachment (SN: 000101 & Above) Package Contents Parts Diagram

Zoom Snow Thrower Attachment

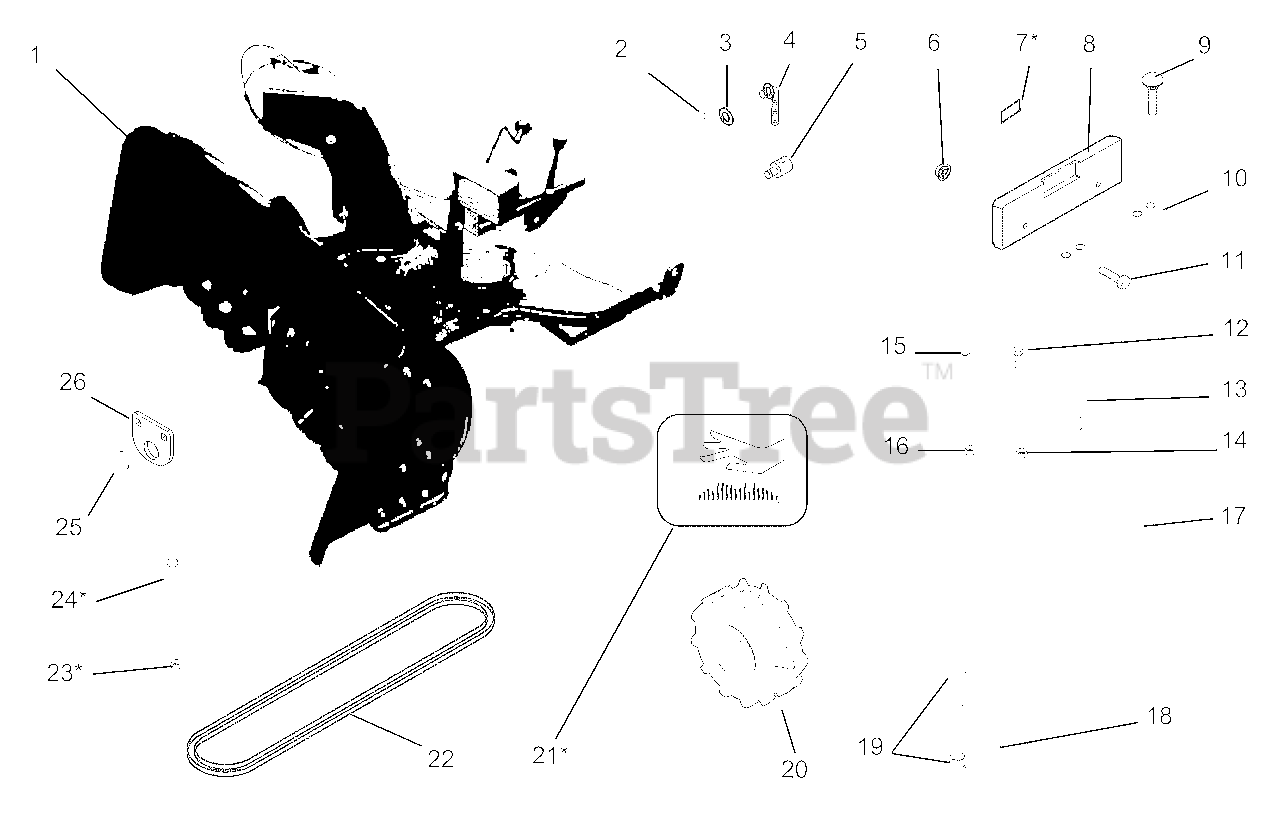

Package Contents Parts Diagram

  • Title

1

Snow Thrower

$

$

Not available

2

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 18

0

3

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 02778100

LINK, LIFT

$40.99

$

Usually ships in 4-12 days

0

5

Ariens 01590400

TRUNNION-.50

$45.99

$

In Stock, Qty 8

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

7

Ariens 00272000

REFLECTOR,TAIL(AGRI-FAB)

$

$

Not available

8

Ariens 00172000

WEIGHT, CAST IRON

$284.99

$

Usually ships in 4-12 days

0

9

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, only 2 left!

0

10

Ariens 01601651

BRKT,ANGLE

$37.99

$

Usually ships in 4-12 days

0

11

Ariens 05970400

@BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

13

Ariens 00265551

LATCH,COLD START

$

$

Not available

14

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

15

Ariens 06220500

@BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, Qty 7

0

16

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 00265451

HANDLE,COLD START

$

$

Not available

18

Ariens 00473500

WMT, IDLER ARM

Note: Items come pre-assembled.

$129.99

$

In Stock, only 1 left!

0

19

Ariens 05500039

BSHG-FLG 0.75X0.875X.625X1.125

Note: Items come pre-assembled.

$7.49

$

In Stock, Qty 17

0

20

Ariens 00259000

ASSY,WHEEL & TIRE 18X6.5 S-HOG

$

$

Not available

21

Ariens 07754100

DECAL, HOT SURFACE

$3.49

$

In Stock, only 3 left!

0

22

Ariens 07216500

V-BELT, 4L-RAW EDGE

$43.99

$

In Stock, only 1 left!

0

23

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

24

5/16" 1-12" Shear Bolt

$

$

Not available

25

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 18

0

26

Ariens 00175851

BRACKET,REAR PIVOT

$18.99

$

Usually ships in 4-12 days

0
