815012 - Ariens Zoom Snow Thrower Attachment (SN: 000101 & Above) Snow Chute And Chute Crank Assembly Parts Diagram

Zoom Snow Thrower Attachment

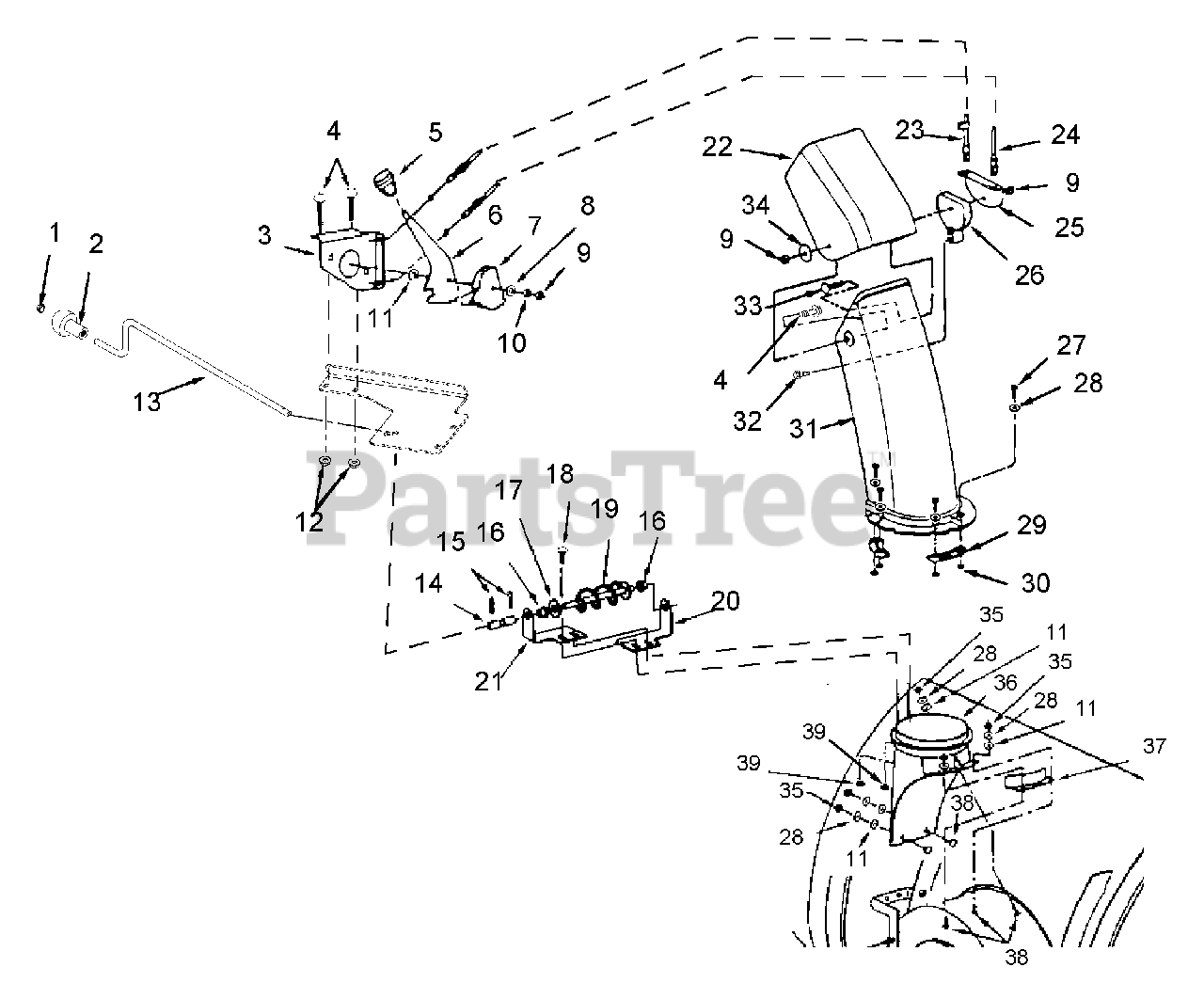

Snow Chute And Chute Crank Assembly Parts Diagram

  • Title

1

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, only 2 left!

0

1

Ariens 036903

CAP, 3/8 ROD YWZC
(Superseded to 01019800)

Note: (Gravely Part Number)

$2.99

$

In Stock, only 2 left!

0

2

Ariens 07508300

KNOB

$14.99

$

In Stock, only 3 left!

0

2

Ariens 036902

KNOB
(Superseded to 07508300)

Note: (Gravely Part Number)

$14.99

$

In Stock, only 3 left!

0

3

Assembly, Chute Tilt Bracket

$

$

Not available

4

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

5

Knob

$

$

Not available

6

Handle, Chute Tilt

$

$

Not available

7

Guide, Cable

$

$

Not available

8

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 17

0

9

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 18

0

11

Ariens 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, only 4 left!

0

11

Ariens 020775

WSHR-FL-NY .375X.75X.060
(Superseded to 06433600)

Note: (Gravely Part Number)

$0.99

$

In Stock, only 4 left!

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 16

0

13

Ariens 03247700

CRANK, CHUTE

$37.99

$

Usually ships in 4-12 days

0

14

Ariens 02470400

UNIVERSAL JOINT ASS'Y

$131.99

$

In Stock, only 1 left!

0

15

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 10

0

16

Ariens 05500006

BUSHING,3/8" (AGRI-FAB)

$

$

Not available

17

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 15

0

18

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 6

0

19

Ariens 00266700

WORM,CHUTE CRANK

$

$

Not available

20

Ariens 00266900

BKT,CHUTE CRANK FRONT

$

$

Not available

21

Ariens 00266800

BKT,CHUTE CRANK REAR

$

$

Not available

22

Chute, Upper

$

$

Not available

23

Cable, Chute Control with Clip

$

$

Not available

24

Cable, Chute Control

$

$

Not available

25

Bracket, Cable

$

$

Not available

26

Guide, Cable

$

$

Not available

27

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 7

0

28

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 10

0

29

Chute Keeper

$

$

Not available

30

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Chute, Lower

$

$

Not available

32

Ariens 06118000

@SCR-MCH .25-20X.75 HWH YWZC
(Superseded to 05901824)

$1.99

$

Usually ships in 4-12 days

0

33

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

Usually ships in 4-12 days

0

34

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 17

0

35

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

36

Chute Adapter

$

$

Not available

37

Chute Reinforcement

$

$

Not available

38

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 14

0

39

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 16

0
