815012 - Gravely 42", 46" Snow Blower for ZT Series (SN: 001001 & Above) Package Contents Parts Diagram

42", 46" Snow Blower for ZT Series

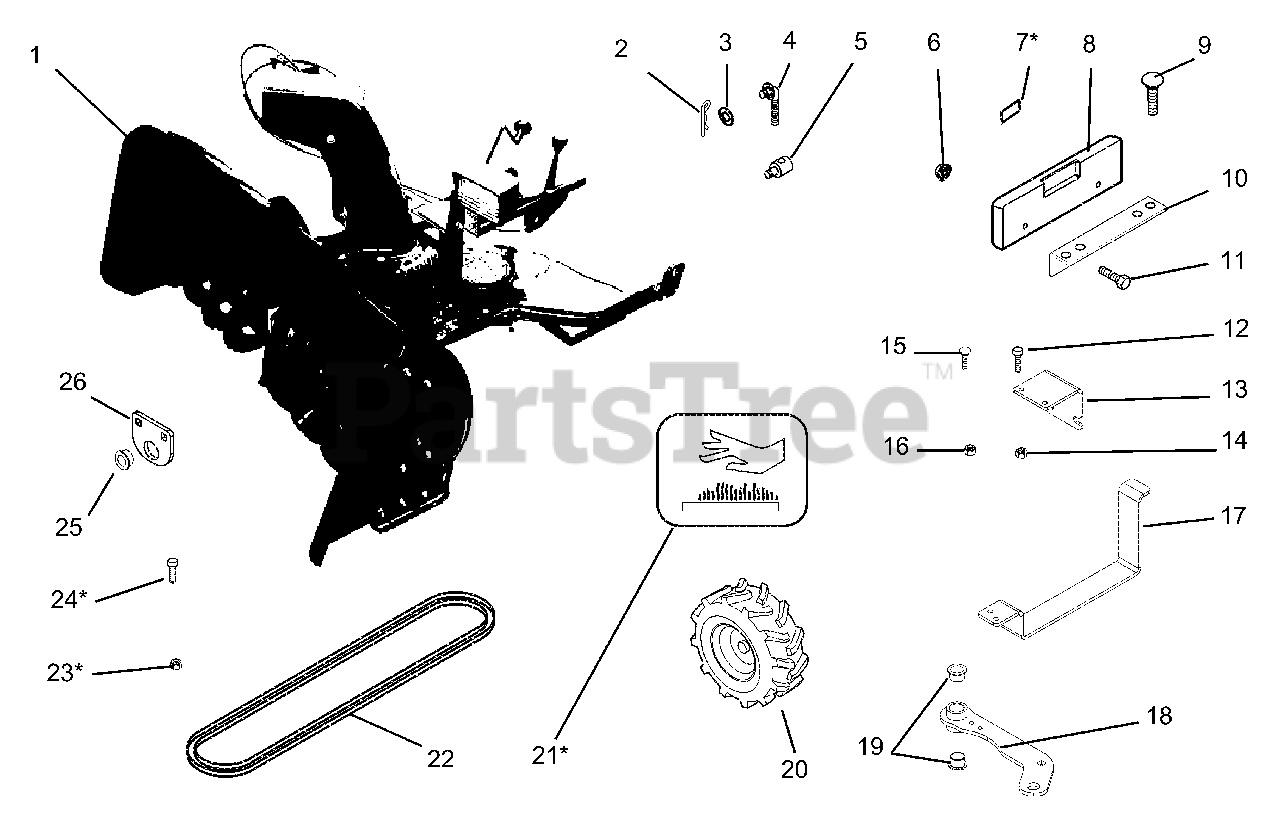

Package Contents Parts Diagram

  • Title

1

Snow Thrower

$

$

Not available

2

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

3

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

4

Gravely 02778100

LINK, LIFT

$42.99

$

Usually ships in 4-12 days

0

5

Gravely 01590400

TRUNNION-.50

$59.99

$

In Stock, only 3 left!

0

6

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00272000

REFLECTOR,TAIL(AGRI-FAB)

$

$

Not available

8

Gravely 00172000

WEIGHT, CAST IRON

$303.99

$

Usually ships in 4-12 days

0

9

Gravely 06224400

BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 01601651

BRKT,ANGLE

$38.99

$

Usually ships in 4-12 days

0

11

Gravely 05970400

BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$5.49

$

In Stock, only 2 left!

0

12

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

13

Gravely 00265551

LATCH,COLD START

$

$

Not available

14

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

15

Gravely 06220500

BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, Qty 11

0

16

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00265451

HANDLE,COLD START

$

$

Not available

18

Gravely 00473500

WMT, IDLER ARM

Note: Items come pre-assembled.

$131.99

$

In Stock, only 1 left!

0

19

Gravely 05500039

BSHG-FLG 0.75X0.875X.625X1.125

Note: Items come pre-assembled.

$7.99

$

In Stock, Qty 20+

0

20

Gravely 00259000

ASSY,WHEEL & TIRE 18X6.5 S-HOG

$

$

Not available

21

Gravely 07754100

DECAL, HOT SURFACE

$2.49

$

In Stock, only 3 left!

0

22

Gravely 07216500

V-BELT, 4L-RAW EDGE

$44.99

$

Usually ships in 4-12 days

0

23

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

24

5/16" 1-12" Shear Bolt

$

$

Not available

25

Gravely 036872

BSHG-FLG 1.000X1.12X.62X1.50BR
(Superseded to 05503500)

$13.99

$

In Stock, Qty 14

0

26

Gravely 00175851

BRACKET,REAR PIVOT

$19.99

$

Usually ships in 4-12 days

0
