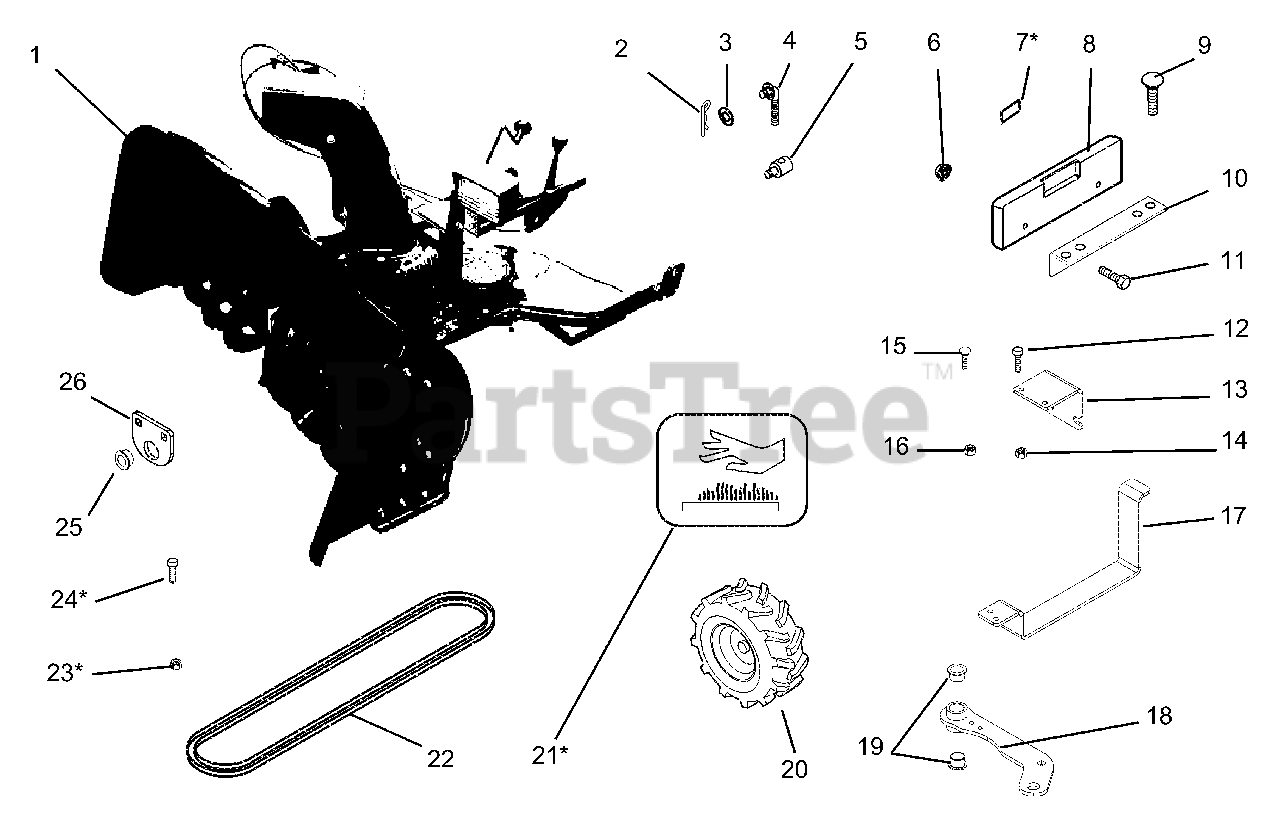

815012 - Gravely 42", 46" Snow Blower for ZT Series (SN: 001001 & Above) Package Contents Parts Diagram

42", 46" Snow Blower for ZT Series

Package Contents Parts Diagram

  • Title

1

NA

Snow Thrower

$

$

Not available

2

Gravely 06714900

Hair Pin

$0.99

$

In Stock, Qty 9

0

3

Gravely 415543

1-1/4" Flat Washer
(Superseded to 06441000)

$3.49

$

In Stock, only 3 left!

0

4

Gravely 02778100

Lift Link

$42.99

$

Usually ships in 4-12 days

0

5

Gravely 01590400

Trunnion

$59.99

$

In Stock, Qty 9

0

6

Gravely 06542000

3/8" Top Lock Flange Nut
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00272000

Reflector

$

$

Not available

8

Gravely 00172000

Counterweight

$303.99

$

Usually ships in 4-12 days

0

9

Gravely 06224400

3/8" x 2-1/2" Round Head Square Neck Bolt
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

10

Gravely 01601651

Angle Bracket

$38.99

$

Usually ships in 4-12 days

0

11

Gravely 05970400

3/8" x 4-1/2" Hex
(Superseded to 05901938)

$5.49

$

Usually ships in 4-12 days

0

12

Gravely 05946800

Bolt 1/4" x 3/4" Hex
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

13

Gravely 00265551

Bolt Cold Start Latch

$

$

Not available

14

Gravely 06543500

1/4" Top Lock Flange Nut
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06220500

3/8" x 2" Round Head Square Neck Bolt
(Superseded to 06224300)

$3.99

$

In Stock, Qty 9

0

16

Gravely 06537200

3/8" Center Jam Nut
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00265451

Cold Start Handle

$

$

Not available

18

Gravely 00473500

Idler Arm

Note: Items come pre-assembled.

$131.99

$

In Stock, only 1 left!

0

19

Gravely 05500039

Flanged Bushing

Note: Items come pre-assembled.

$7.99

$

In Stock, Qty 20+

0

20

Gravely 00259000

Snow Tire

$

$

Not available

21

Gravely 07754100

Hot Surface Decal

$2.49

$

In Stock, Qty 13

0

22

Gravely 07216500

PTO Belt

$44.99

$

Usually ships in 4-12 days

0

23

Gravely 06529800

5/16" Locknut
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

24

NA

5/16" 1-12" Shear Bolt

$

$

Not available

25

Gravely 036872

Bronze Bushing
(Superseded to 05503500)

$13.99

$

In Stock, only 2 left!

0

26

Gravely 00175851

Rear Pivot Bracket

$19.99

$

Usually ships in 4-12 days

0
