815012 - Gravely 42", 46" Snow Blower for ZT Series (SN: 001001 & Above) Snow Chute And Chute Crank Assembly (Agri-Fab) Parts Diagram

42", 46" Snow Blower for ZT Series

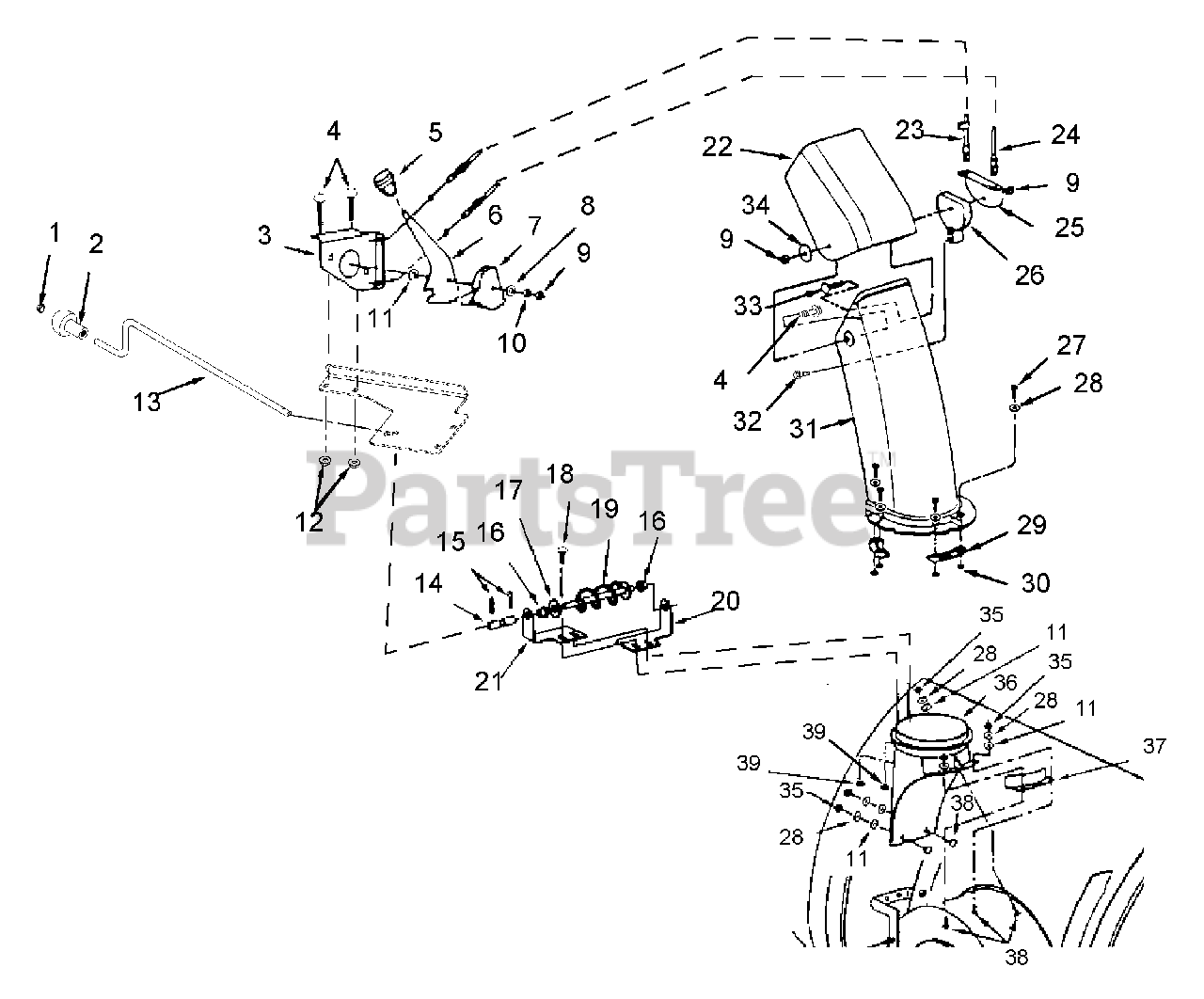

Snow Chute And Chute Crank Assembly (Agri-Fab) Parts Diagram

  • Title

1

NA

Cap, .38 Rod

$

$

Not available

2

NA

Knob

$

$

Not available

3

Gravely 6030302

Assembly, Chute Tilt Bracket

$

$

Not available

4

NA

Bolt-Round Head Square Neck .31-18 x .75 Grade 5

$

$

Not available

5

Gravely 7200232

Knob

$

$

Not available

6

Gravely 7845604

Handle, Chute Tilt

$

$

Not available

7

Gravely 7311313C

Guide, Cable

$

$

Not available

8

Gravely 43081

Washer, 5/16

$

$

Not available

9

43064

Nut, Hex Lock 5-16-18

$

$

Not available

10

NA

Washer-Locking .31 x .078 Regular

$

$

Not available

11

NA

Washer-Flat-Nylon .375 x .75 x .060

$

$

Not available

12

NA

Nut-Locking-Top-Flange .31-18

$

$

Not available

13

NA

Crank, Chute

$

$

Not available

14

Gravely 7845149

U-Joint

$

$

Not available

15

Gravely 43850

Roll Pin, 1/8 x 5/8

$

$

Not available

16

Gravely 7410475

Plastic Bushing, 3/8

$

$

Not available

17

43070

Flat Washer, 3/8

$

$

Not available

18

Gravely 43079

Carriage Bolt, 5/16-18 x 1

$

$

Not available

19

Gravely 6840061

Chute Crank Assembly

$

$

Not available

20

Gravely 24299

Chute Crank Bracket, Front

$

$

Not available

21

Gravely 24300

Chute Crank Bracket, Rear

$

$

Not available

22

Gravely 7311320

Chute, Upper

$

$

Not available

23

Gravely 7460929

Cable, Chute Control with Clip

$

$

Not available

24

Gravely 7460928

Cable, Chute Control

$

$

Not available

25

Gravely 7845594

Bracket, Cable

$

$

Not available

26

Gravely 731131C

Guide, Cable

$

$

Not available

27

Gravely 43661

Hex Bolt, 1/4-20 x 1

$

$

Not available

28

Gravely 43088

Washer, 1/4

$

$

Not available

29

Gravely 7310851A

Chute Keeper

$

$

Not available

30

Gravely 47598

Hex Lock Nut, 1/4

$

$

Not available

31

Gravely 7311300A

Chute, Lower

$

$

Not available

32

NA

Screw-Machine .25-20 x .75 Hex Washer Head

$

$

Not available

33

Gravely 43681

Carriage Bolt, 5/16-18 x 1-1/2

$

$

Not available

34

Gravely 43081

Washer, 5/16

$

$

Not available

35

Gravely 43013

Hex Lock Nut 1/4-20

$

$

Not available

36

Gravely 7311379A

Chute Adapter

$

$

Not available

37

Gravely 7055226

Chute Reinforcement

$

$

Not available

38

44950

Carriage Bolt, 1/4-20 x 3/4

$

$

Not available

39

NA

Nut-Locking-Top-Flange .31-18

$

$

Not available
