815012 - Gravely 42", 46" Snow Blower for ZT Series (SN: 001001 & Above) Snow Thrower And Auger Assembly Parts Diagram

42", 46" Snow Blower for ZT Series

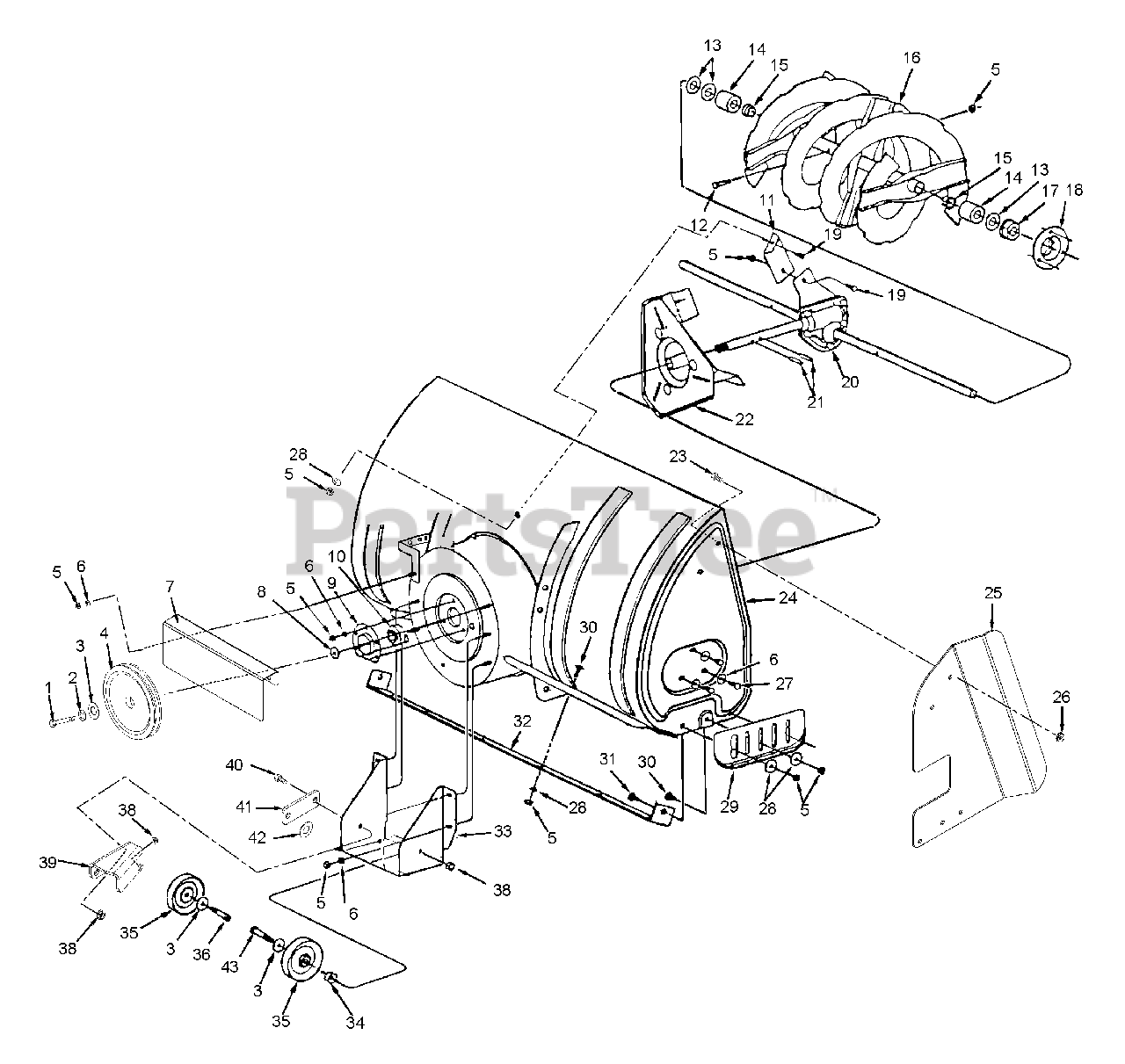

Snow Thrower And Auger Assembly Parts Diagram

  • Title

1

Gravely 05960300

BLT-HEX .38-24X1.0 YWZC GR5

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

4

Pulley, V-Type

$

$

Not available

5

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00265251

GUARD,FINGER

$

$

Not available

8

Bushing

$

$

Not available

9

Housing, Bearing

$

$

Not available

10

Bearing, Ball

$

$

Not available

11

Bracket, Housing Brace

$

$

Not available

12

Bolt, Shear 5/16-18 x 1-1/2

$

$

Not available

13

Washer, .76 x 1.49 x .06

$

$

Not available

14

Spacer, .75 ID x 1.25 OD x .51

$

$

Not available

15

Bearing, Split, 3/4

$

$

Not available

16

Spiral Assembly, R.H.

$

$

Not available

Spiral Assembly, L. H.

$

$

Not available

17

Bearing Flange

$

$

Not available

18

Housing, Bearing

$

$

Not available

19

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

20

Gear Assembly

$

$

Not available

21

Spiral Pin, 1/4 x 1-1/2"

$

$

Not available

22

Impeller Assembly

$

$

Not available

23

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

24

Housing Assembly

$

$

Not available

25

Gravely 00266651

DRIFT-CUTTER RH

$

$

Not available

Gravely 00266551

DRIFT-CUTTER LH

$

$

Not available

26

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0

28

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

29

Skid Shoe

$

$

Not available

30

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

32

Scraper Plate

$

$

Not available

33

Bracket, Idler

$

$

Not available

34

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

Note: (Gravely Part Number)

$6.49

$

In Stock, Qty 20+

0

35

Gravely 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$40.99

$

In Stock, only 2 left!

0

36

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 16

0

37

Spacer

$

$

Not available

38

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 00271951

BKT,IDLER SHEAVE

$

$

Not available

40

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 00264551

PLATE,SHIM

$

$

Not available

42

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

43

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0
