815012 - Gravely 42", 46" Snow Blower for ZT Series (SN: 001001 & Above) Snow Thrower And Auger Assembly Parts Diagram

42", 46" Snow Blower for ZT Series

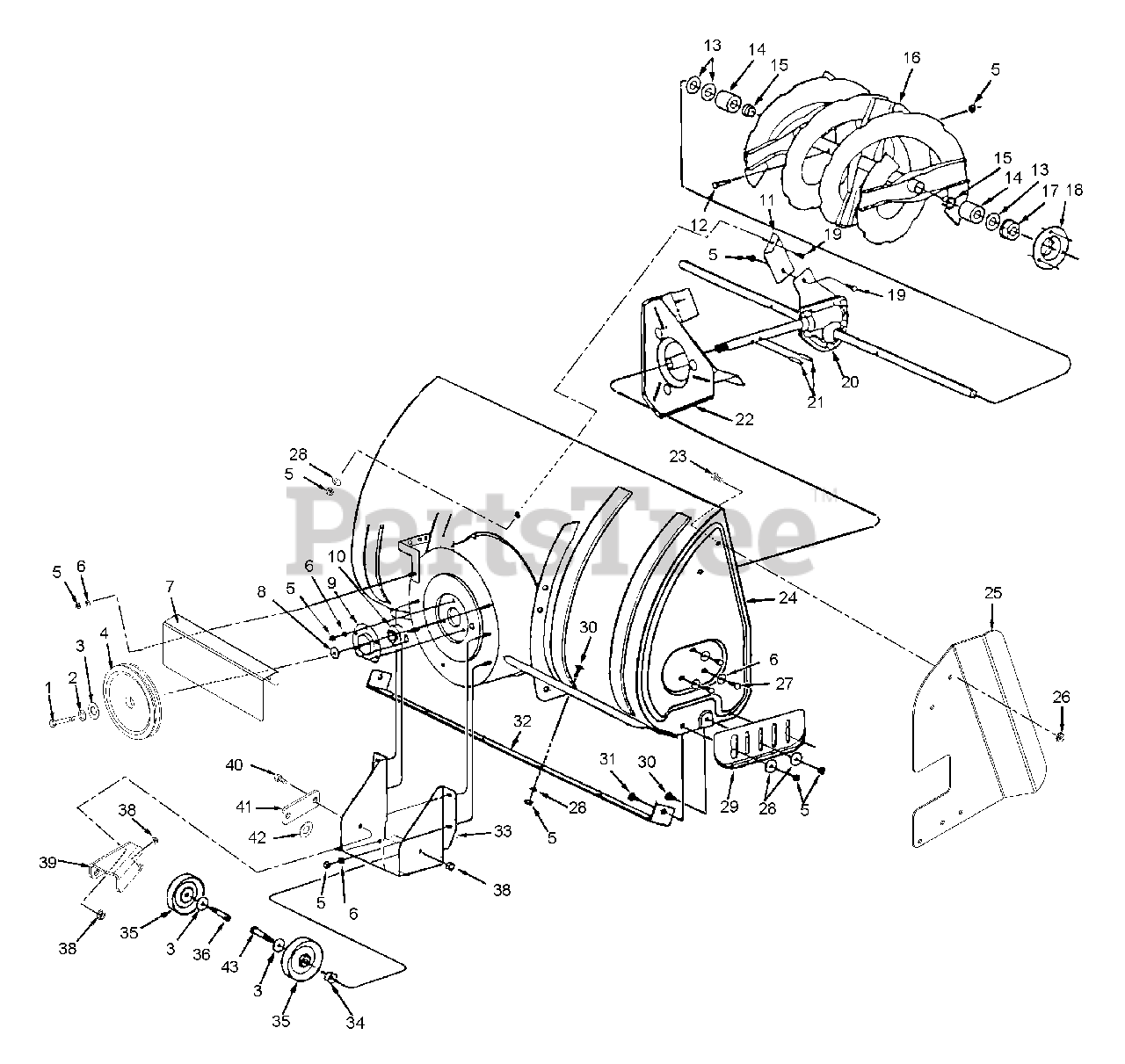

Snow Thrower And Auger Assembly Parts Diagram

  • Title

1

Gravely 05960300

Hex Bolt, 3/8-24 X 1

$2.99

$

In Stock, only 1 left!

0

2

Gravely 06308800

Lock Washer, 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

3

Gravely 06436200

Washer
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

NA

Pulley, V-Type

$

$

Not available

5

Gravely 06529800

Hex Lock Nut, 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06308600

Lock Washer 5/16
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00265251

Finger Guard

$

$

Not available

8

NA

Bushing

$

$

Not available

9

NA

Housing, Bearing

$

$

Not available

10

NA

Bearing, Ball

$

$

Not available

11

NA

Bracket, Housing Brace

$

$

Not available

12

NA

Bolt, Shear 5/16-18 x 1-1/2

$

$

Not available

13

NA

Washer, .76 x 1.49 x .06

$

$

Not available

14

NA

Spacer, .75 ID x 1.25 OD x .51

$

$

Not available

15

NA

Bearing, Split, 3/4

$

$

Not available

16

NA

Spiral Assembly, R.H.

$

$

Not available

NA

Spiral Assembly, L. H.

$

$

Not available

17

NA

Bearing Flange

$

$

Not available

18

NA

Housing, Bearing

$

$

Not available

19

Gravely 05947000

Hex Bolt, 5/16"-18 x 3/4"
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

20

NA

Gear Assembly

$

$

Not available

21

NA

Spiral Pin, 1/4 x 1-1/2"

$

$

Not available

22

NA

Impeller Assembly

$

$

Not available

23

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

24

NA

Housing Assembly

$

$

Not available

25

Gravely 00266651

Drift Cutter, Right Hand

$

$

Not available

Gravely 00266551

Drift Cutter, Left Hand

$

$

Not available

26

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 07414400

Bolt, Self-Tap 5/16 x 3/4"
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

28

Gravely 06437200

Washer, 5/16
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

29

NA

Skid Shoe

$

$

Not available

30

Gravely 06215700

Carriage Bolt, 5/16-18 x 3/4
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

31

Gravely 06216100

Carriage Bolt, 5/16-18 x 1
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

32

NA

Scraper Plate

$

$

Not available

33

NA

Bracket, Idler

$

$

Not available

34

Gravely 08553700

Bushing

$5.99

$

In Stock, Qty 15

0

Gravely 043922

(Gravely Part Number)
(Superseded to 08553700)

Note: (Gravely Part Number)

$5.99

$

In Stock, Qty 15

0

35

Gravely 07311400

Pulley, V-Type
(Superseded to 07300528)

$39.99

$

In Stock, only 3 left!

0

36

Gravely 05957900

Bolt-Hex .38-16 X 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

37

NA

Spacer

$

$

Not available

38

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 00271951

Bracket

$

$

Not available

40

Gravely 05948700

Bolt-Hex .38-16 X 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 00264551

Plate, Shim

$

$

Not available

42

Gravely 06444000

Washer-Flat-Steel .406 x 1.00 x.188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

43

Gravely 05963300

Bolt-Hex .38-16 X 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 11

0
