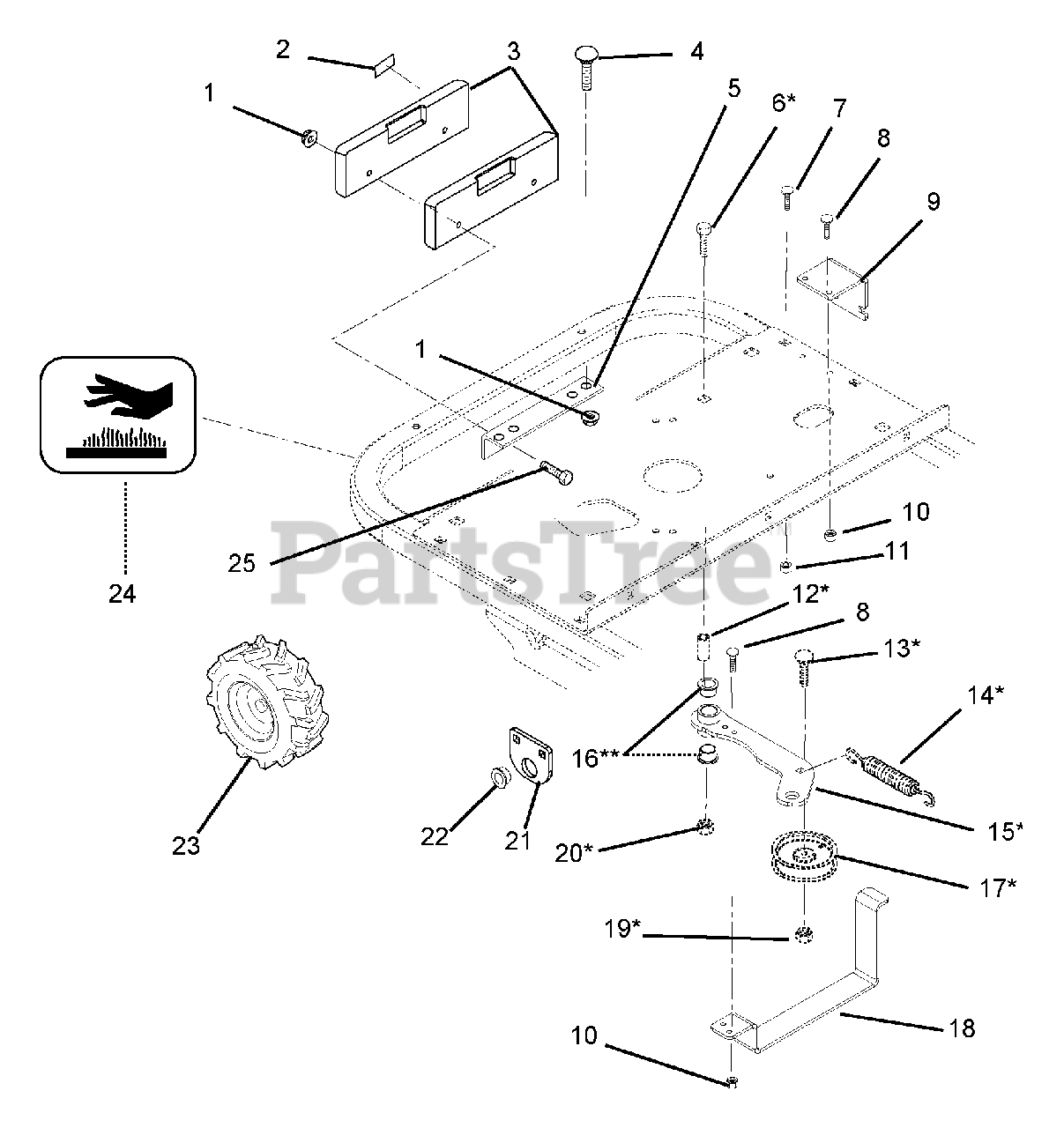

815012 - Gravely 42", 46" Snow Blower for ZT Series (SN: 001001 & Above) Wheels, Counterweights, And Cold Start Assembly Parts Diagram

42", 46" Snow Blower for ZT Series

Wheels, Counterweights, And Cold Start Assembly Parts Diagram

  • Title

1

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 00272000

REFLECTOR,TAIL(AGRI-FAB)

$

$

Not available

Gravely 047788

SHAFT ASSY, ROCKER
(Superseded to 20870900)

Note: (Agri-Fab Part Number)

$

$

Not available

3

Gravely 00172000

WEIGHT, CAST IRON

$318.99

$

Usually ships in 4-12 days

0

4

Gravely 06224400

BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$5.49

$

In Stock, Qty 20+

0

5

Gravely 01601651

BRKT,ANGLE

$39.99

$

Usually ships in 4-12 days

0

6

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$4.99

$

In Stock, only 1 left!

0

7

Gravely 06224300

BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$4.99

$

In Stock, Qty 8

0

8

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 00265551

LATCH,COLD START

$

$

Not available

10

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05516400

BSHG-SLV .500X.750X1.560

$6.99

$

In Stock, only 2 left!

0

13

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 08336100

SPRING, EXT
(Superseded to 08300512)

$18.99

$

In Stock, Qty 20+

0

15

Gravely 00473500

WMT, IDLER ARM

$138.99

$

Usually ships in 4-12 days

0

16

Gravely 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$8.49

$

In Stock, Qty 20+

0

17

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$67.99

$

In Stock, Qty 18

0

18

Gravely 00265451

HANDLE,COLD START

$

$

Not available

19

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 00175851

BRACKET,REAR PIVOT

$20.99

$

Usually ships in 4-12 days

0

22

Gravely 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$13.99

$

In Stock, Qty 17

0

Gravely 036872

BSHG-FLG 1.000X1.12X.62X1.50BR
(Superseded to 05503500)

Note: (Gravely Part Number)

$13.99

$

In Stock, Qty 17

0

23

Gravely 00259000

ASSY,WHEEL & TIRE 18X6.5 S-HOG

$

$

Not available

24

Gravely 07754100

DECAL, HOT SURFACE

$2.99

$

In Stock, only 3 left!

0

25

Gravely 05970400

BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$6.49

$

In Stock, only 1 left!

0
