815012 - Gravely 42", 46" Snow Blower for ZT Series (SN: 001001 & Above) Wheels, Counterweights, And Cold Start Assembly Parts Diagram

42", 46" Snow Blower for ZT Series

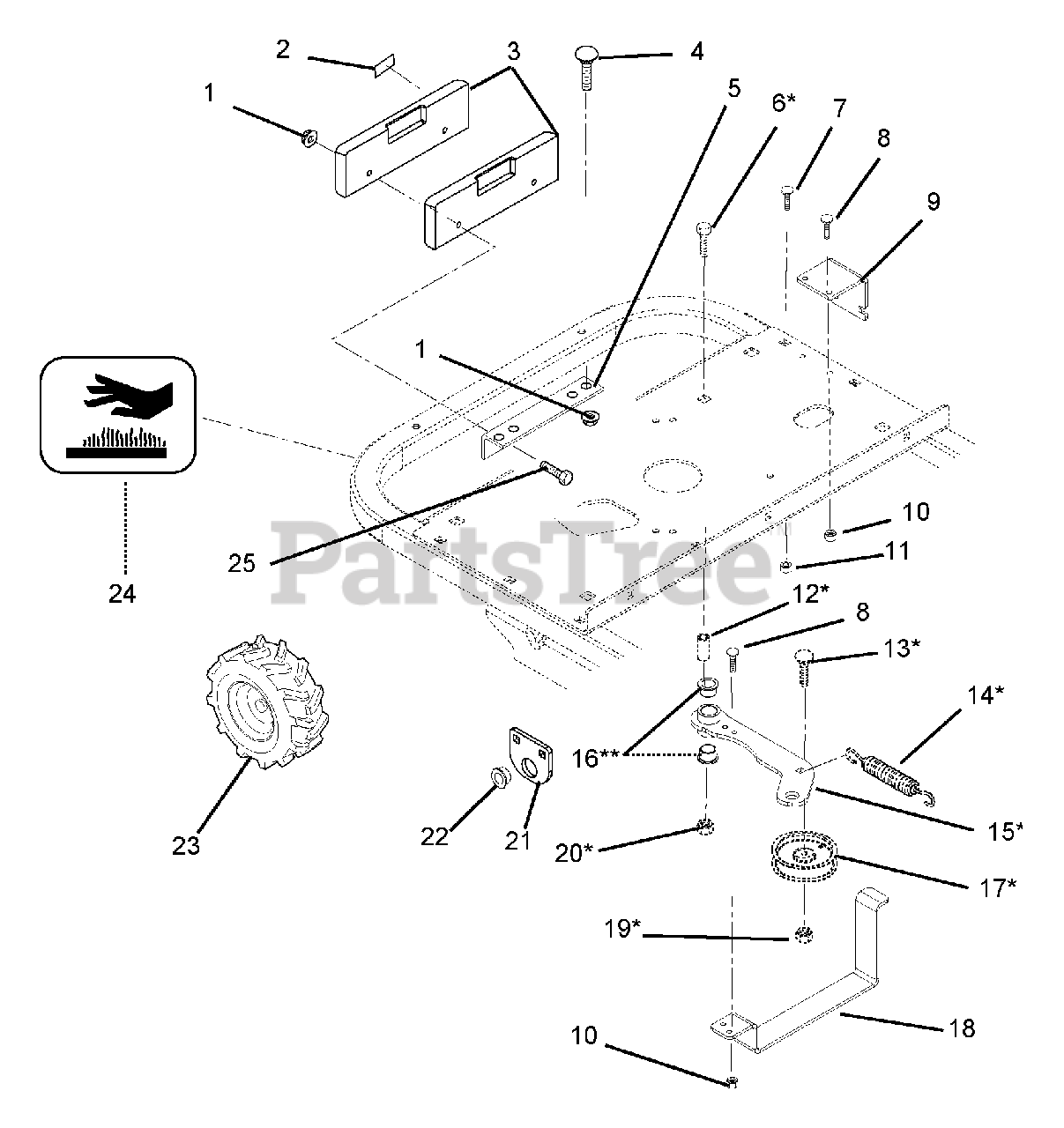

Wheels, Counterweights, And Cold Start Assembly Parts Diagram

  • Title

1

Gravely 06542000

Top Locking Flange Nut, .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 00272000

Reflector

$

$

Not available

47788

(Agri-Fab Part Number)

Note: (Agri-Fab Part Number)

$

$

Not available

3

Gravely 00172000

Weight, Cast Iron

$303.99

$

Usually ships in 4-12 days

0

4

Gravely 06224400

Bolt-Round Head Square Neck, .38-16 x 2.50 Grade 5
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

5

Gravely 01601651

Angle Bracket

$38.99

$

Usually ships in 4-12 days

0

6

Gravely 05966600

Bolt-Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

7

Gravely 06224300

Bolt-Round Head Square Neck .38-16 x 2.00
(Superseded to 06200314)

$3.99

$

In Stock, Qty 10

0

8

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

9

Gravely 00265551

Latch, Cold Start

$

$

Not available

10

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

11

Gravely 06537200

Nut-Locking-Jam-Center .375-16
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05516400

Bushing Sleeve .50 x .75 x 1.56

$6.49

$

In Stock, Qty 11

0

13

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

15

Gravely 00473500

Weldment, Idler

$131.99

$

In Stock, only 1 left!

0

16

Gravely 05500039

Bushing, Flanged 0.75 x 0.875 x .625 x 1.125

$7.99

$

In Stock, Qty 20+

0

17

Gravely 07312500

Pulley, Idler 4.00
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

18

Gravely 00265451

Handle, Cold Start

$

$

Not available

19

Gravely 06537200

Nut, Locking, Jam, Center .375-16
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 00175851

Bracket, Rear Pivot

$19.99

$

Usually ships in 4-12 days

0

22

Gravely 05503500

Bushing-Flange 1 x 1.12 .62 1.50

$13.99

$

In Stock, only 2 left!

0

Gravely 036872

(Gravely Part Number)
(Superseded to 05503500)

Note: (Gravely Part Number)

$13.99

$

In Stock, only 2 left!

0

23

Gravely 00259000

Tire/Wheel Assembly, 18 x 6.5

$

$

Not available

24

Gravely 07754100

Decal, Hot Surface

$2.49

$

In Stock, Qty 13

0

25

Gravely 05970400

Bolt-Hex .38-16 x 4.50
(Superseded to 05901938)

$5.49

$

Usually ships in 4-12 days

0
