815013 - Ariens Zoom 54" Dozer Blade (SN: 000101 - 000399) Dozer Blade Assembly Parts Diagram

Zoom 54" Dozer Blade

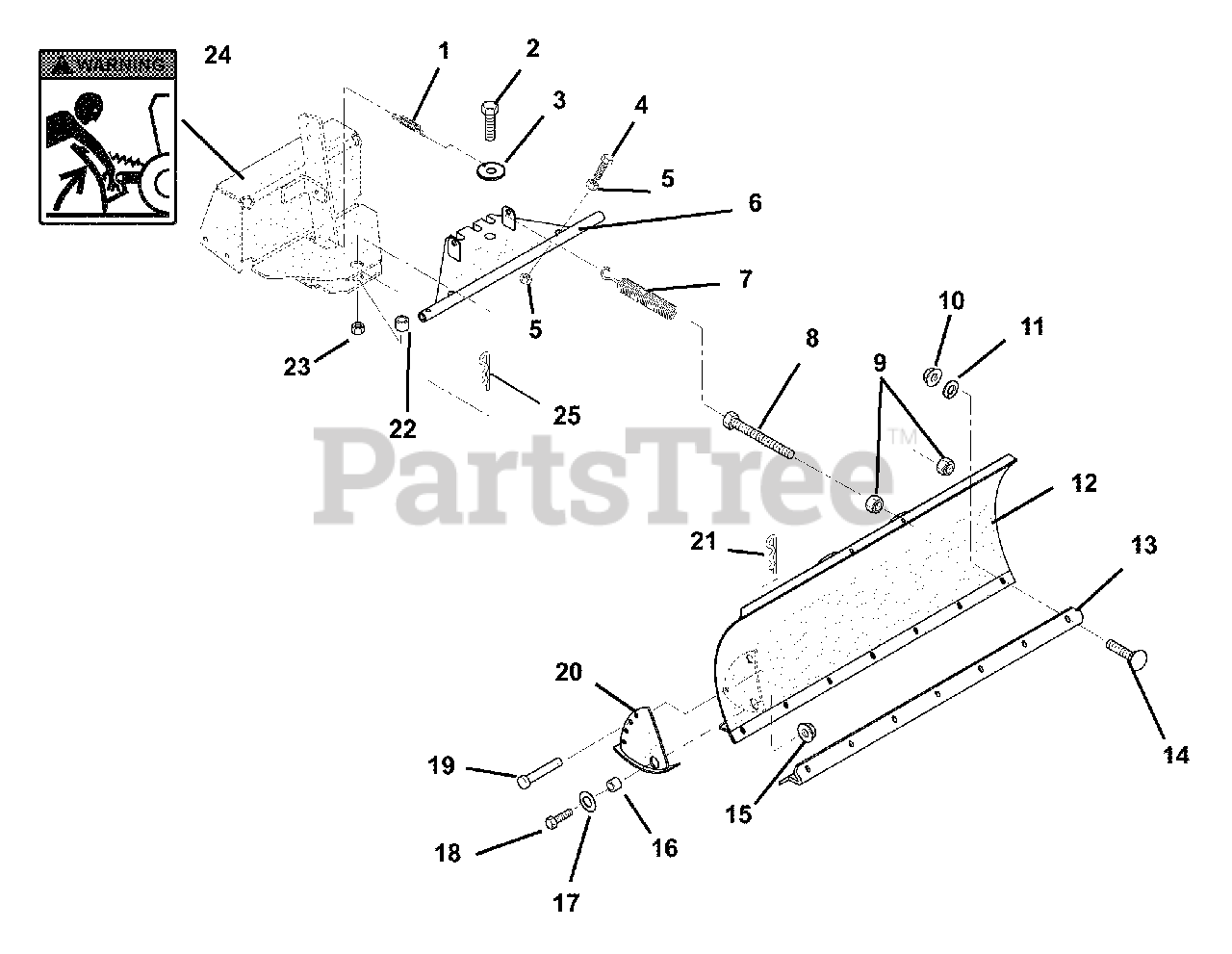

Dozer Blade Assembly Parts Diagram

  • Title

1

Ariens 00261100

SPRING,LATCH

Note: Agri-Fab Part #732-0360

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 05961700

BLT-HEX .75-10X3.00 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 00261000

WSHR, SPECIAL

Note: Agri-Fab Part# 736-0306

$

$

Not available

4

Ariens 05959700

@BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

6

Ariens 00260900

WMT,PIVOT PLATE

Note: Agri-Fab Part# 05677

$121.99

$

Usually ships in 4-12 days

0

7

Ariens 00260600

SPRING,BLADE ADJUSTMENT

Note: Agri-Fab Part# 732-0359

$39.99

$

Usually ships in 4-12 days

0

8

Ariens 05981300

BLT,HEX 3/8-16X4.00 FULL TH'D

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

10

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 00260700

WMT,54"BLADE(AGRI-FAB)
(Superseded to 03255851)

Note: Agri-Fab Part# 05674

$465.99

$

Usually ships in 4-12 days

0

13

Ariens 00260800

PLATE,WEAR

Note: Agri-Fab Part #05687

$

$

Not available

14

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

15

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 00261300

BUSHING,SKID PIVOT

Note: Agri-Fab Part# 750-0437

$

$

Not available

17

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 00513900

PIN, CLEVIS .312 X 1

$

$

Not available

20

Ariens 00261200

SKID,54"BLADE

Note: Agri-Fab Part #05655

$

$

Not available

21

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 8

0

22

Ariens 01582800

SPACER, .753X1.00X1.60

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 06537900

NUT-LK-JAM-NYL .75-10 YWZC

$15.99

$

Usually ships in 4-12 days

0

24

Ariens 07732500

DECAL, PINCH POINT

$

$

Not available

25

Ariens 06714000

PIN-HAIR-INT .15X2.937 YWZC

$2.99

$

In Stock, Qty 9

0
