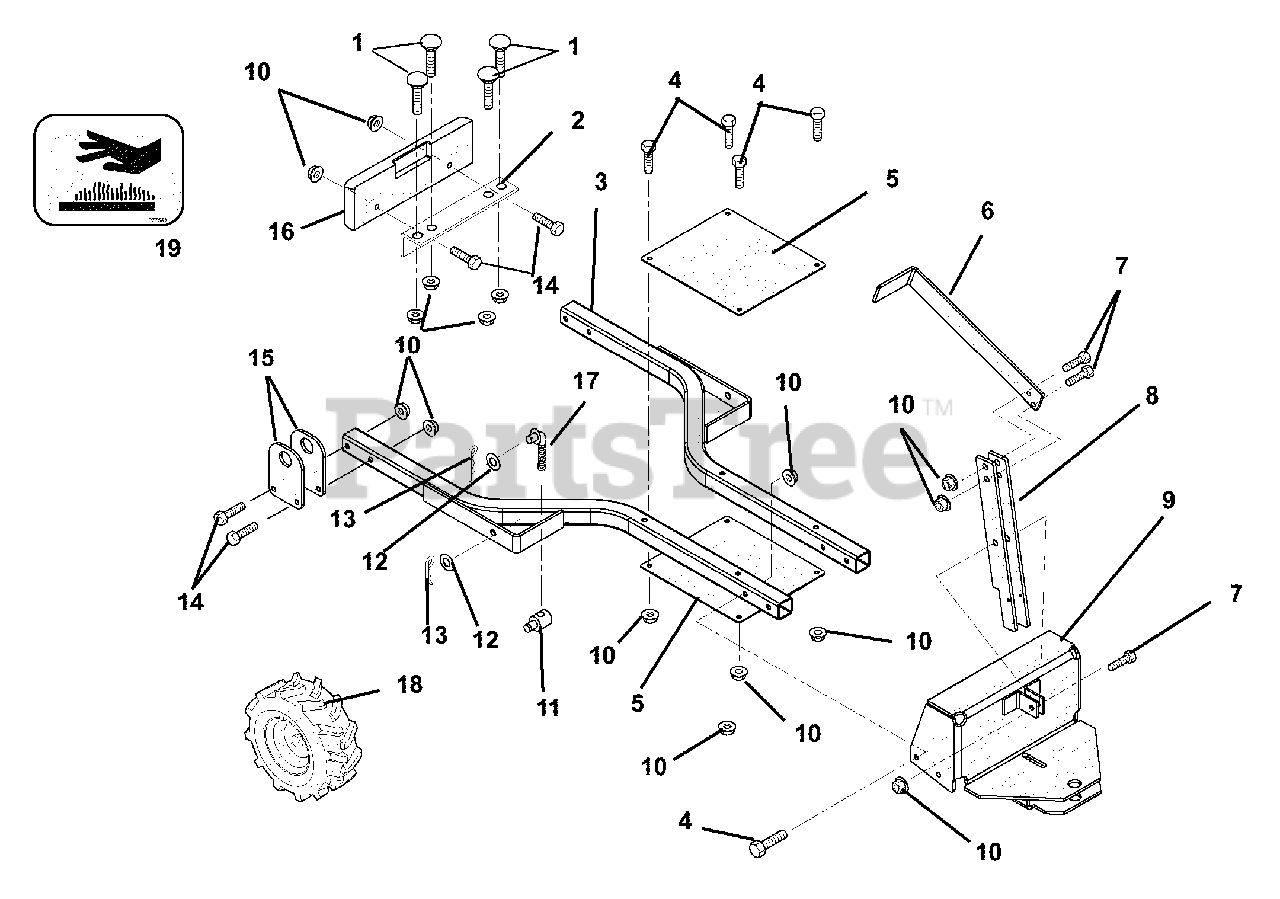

815013 - Ariens Zoom 54" Dozer Blade (SN: 000101 - 000399) Frame Subassembly Parts Diagram

Zoom 54" Dozer Blade

Frame Subassembly Parts Diagram

  • Title

1

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, only 3 left!

0

2

Ariens 01601651

BRKT,ANGLE

$37.99

$

Usually ships in 4-12 days

0

3

Ariens 00181751

WMT,SUB-FRAME TUBE

$

$

Not available

4

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

5

Ariens 00260351

PLATE,SUB-FRAME

$39.99

$

Usually ships in 4-12 days

0

6

Ariens 00181651

PEDAL

$77.99

$

Usually ships in 4-12 days

0

7

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, only 3 left!

0

8

Ariens 00181551

LATCH

$50.99

$

Usually ships in 4-12 days

0

9

Ariens 00181451

YOKE,BLADE MOUNT

$258.99

$

Usually ships in 4-12 days

0

10

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 01590400

TRUNNION-.50

$45.99

$

In Stock, Qty 8

0

12

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 18

0

14

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 00181851

BRKT,PIVOT

$

$

Not available

16

Ariens 00172000

WEIGHT, CAST IRON

$284.99

$

Usually ships in 4-12 days

0

17

Ariens 02778100

LINK, LIFT

$40.99

$

Usually ships in 4-12 days

0

18

Ariens 00259000

ASSY,WHEEL & TIRE 18X6.5 S-HOG

$

$

Not available

19

Ariens 07754100

DECAL, HOT SURFACE

$3.49

$

In Stock, only 3 left!

0
