815014 - Ariens Mini-Zoom Bagger (SN: 000101 - 000499) Assembly Parts Diagram

Mini-Zoom Bagger

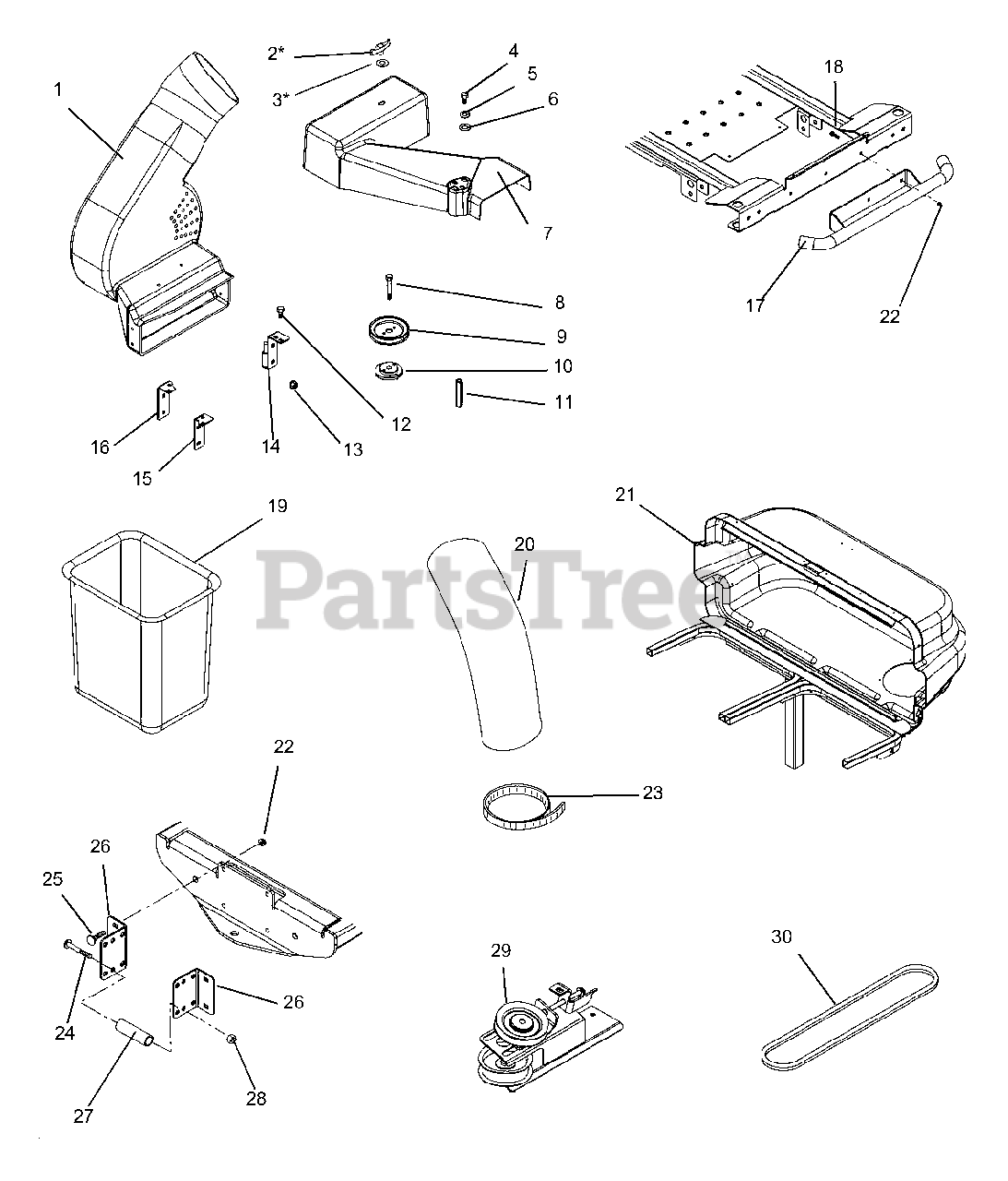

Assembly Parts Diagram

  • Title

1

Ariens 51514700

BLOWER (SERVICE ASSEMBLY)

$870.99

$

Usually ships in 4-12 days

0

2

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

Note: Installed on blower assembly (item 1) when shipped.

$3.99

$

In Stock, Qty 20+

0

3

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

Note: Installed on blower assembly (item 1) when shipped.

$3.49

$

In Stock, Qty 20+

0

4

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

5

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 10

0

6

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 51511600

BELT COVER W/DECAL

$172.99

$

Usually ships in 4-12 days

0

8

Ariens 05980600

BLT-HEX .38-16X1.75 GR8 M-EPYZ

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 00169500

SHEAVE, 3.00 DIA.

Note: 3-Inch Sheave (40-Inch Mower Deck)

$21.99

$

In Stock, only 2 left!

0

9

Ariens 00169600

SHEAVE, 4.00 DIA.

Note: 4-Inch Sheave (34-Inch Mower Deck)

$21.99

$

In Stock, only 1 left!

0

10

Ariens 00169800

ASSEMBLY, SHEAVE ADAPTER

$146.99

$

In Stock, only 2 left!

0

11

Ariens 00169700

NUT, COUPLING .38-16 X 2.97

$47.99

$

Usually ships in 4-12 days

0

12

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 00168600

WELDMENT, REAR MOUNT BRACKET

$78.99

$

Usually ships in 4-12 days

0

15

Ariens 00169151

BRACKET, FRONT

$35.99

$

Usually ships in 4-12 days

0

16

Ariens 00168800

WELDMENT, FRONT MOUNT BRACKET

$79.99

$

Usually ships in 4-12 days

0

17

Ariens 00427851

BUMPER

$

$

Not available

18

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 02724400

GRASS BAGGER BASKET

Note: (038328 - Gravely Part Number)

$81.99

$

In Stock, only 2 left!

0

20

Ariens 03026800

HOSE 7X38
(Superseded to 04222800)

$97.99

$

Usually ships in 4-12 days

0

21

Cover Assembly

$

$

Not available

22

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 02770200

CLAMP, 7" TOOL-LESS HOSE

$52.99

$

Usually ships in 4-12 days

0

24

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 6

0

25

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

26

Ariens 00200051

BKT,BAGGER MOUNT

$47.99

$

Usually ships in 4-12 days

0

27

Ariens 03433800

SPACER, PIVOT .500X.750X1.805

Note: (039598 - Gravely Part Number)

$

$

Not available

28

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

29

Idler Assembly

$

$

Not available

30

Ariens 07212800

V-BELT, HA-WRAPPED

Note: (035896 - Gravely Part Number)

$40.99

$

In Stock, only 4 left!

0
